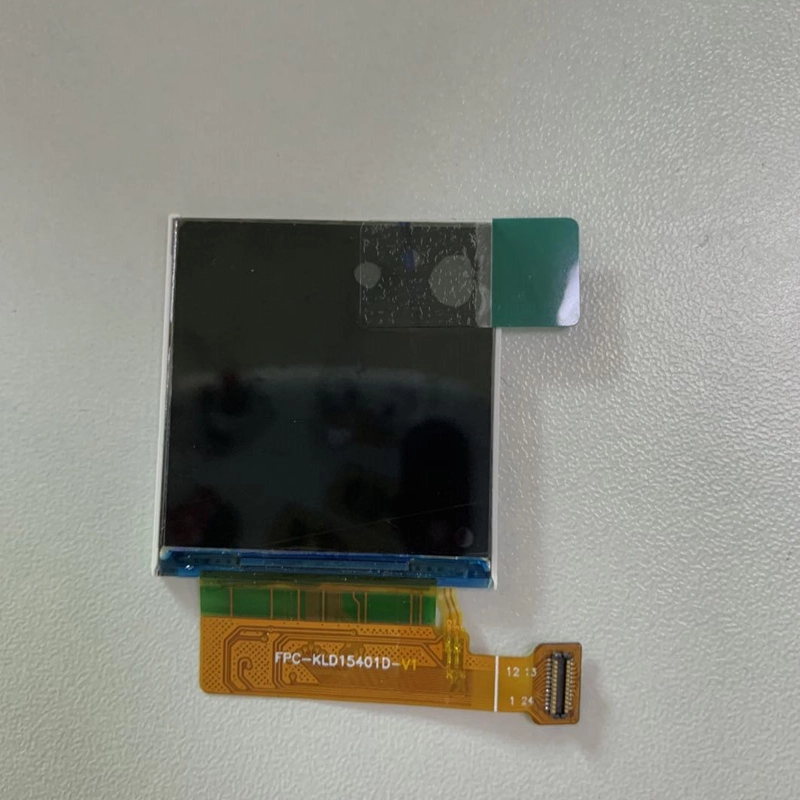

Kingtech 1.54inch 240x240 TFT LCD module is a small size display. The 1.54inch display screen is IPS/free/wide/all viewing angle.
This display supports MCU interface. The TFT display does not have existing resistive touch and capacitive touch, but we can custom LCD screens according to customer requirements. This 1.54inch display can be used for smartwatch and industrial device.
240x240 resolution
Square display
Can custom resistive and capacitive touch screen
MCU interface
Application is for smartwatch
IPS TFT LCD display
Full/wide/all viewing angle
Get a Quote
Documentation
Our LCD display factory has achieved great technical progresses and will offer satisfying one-stop services for customers. Any reqirements of specification will be welcomed.
| Item | 1.54inch square TFT LCD display |
| Model No | PV015400KLD24C_V03 |
| Resolution | 240x240 |
| Outline Dimension | 33.72(H)x31.52(W)x1.85(T) |
| Active Area(mm) | 27.72(H)x27.72(W) |
| Interface | 8/9-bits MPU |
| Viewing Angle | All |
| Driving IC | ST7789V |
| Display Mode | Transmissive / Normally Black |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Brightness | 200nits |
| Touchscreen | Can custom Capacitive touch panel |
The 1.54inch 240x240 square TFT IPS/wide/tall/full LCD display can be used for medical devices, handheld equipment, industrial control, smart home and smartwatch.
