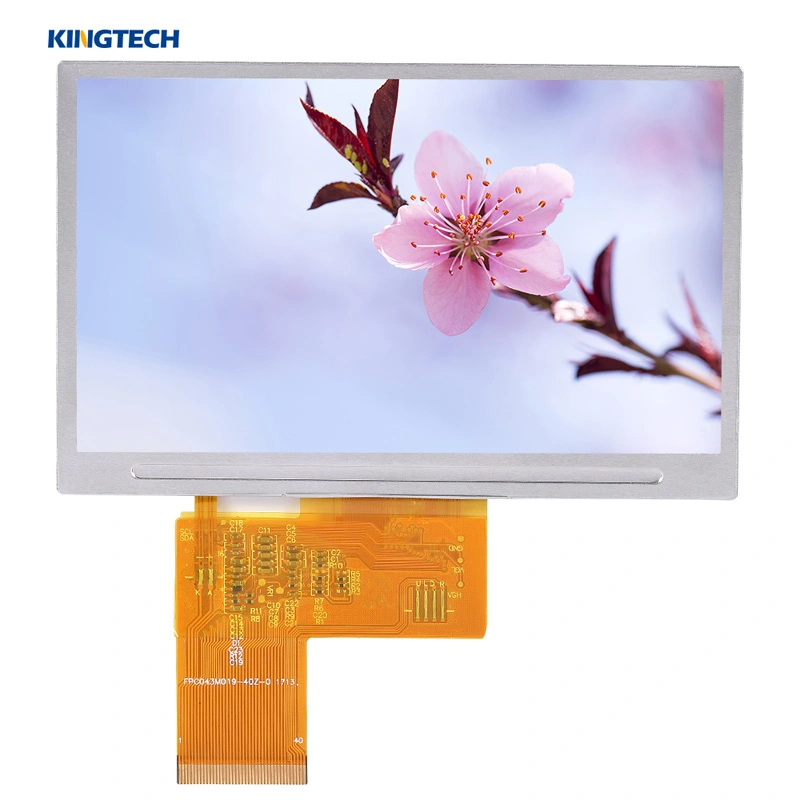

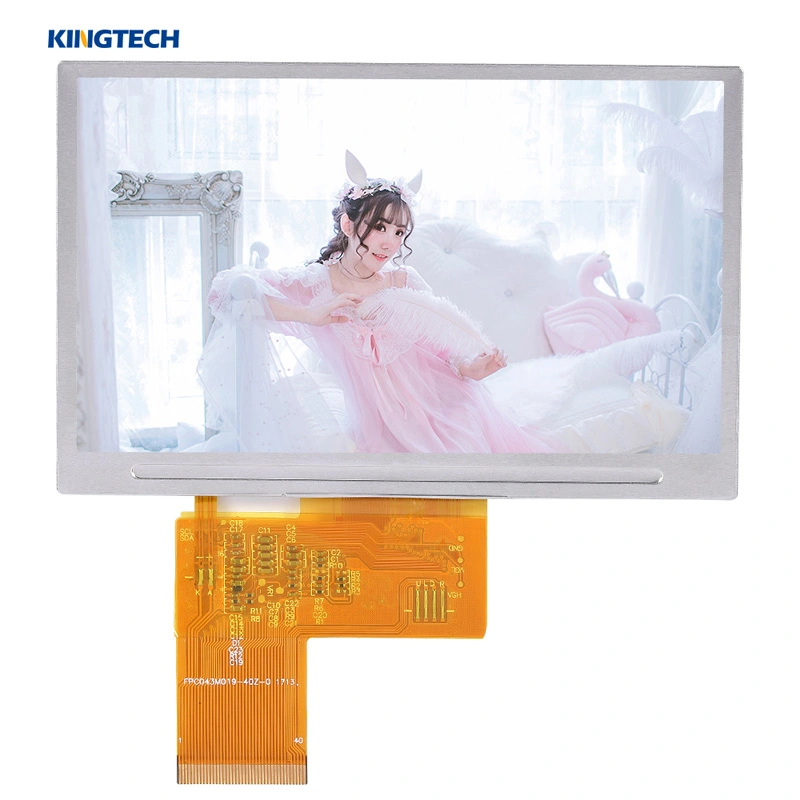

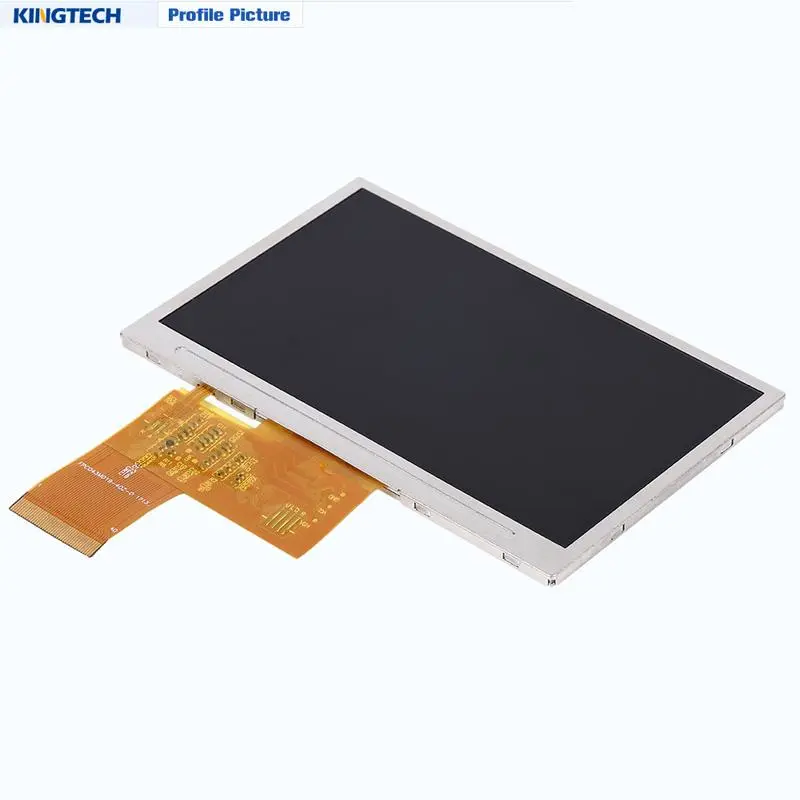

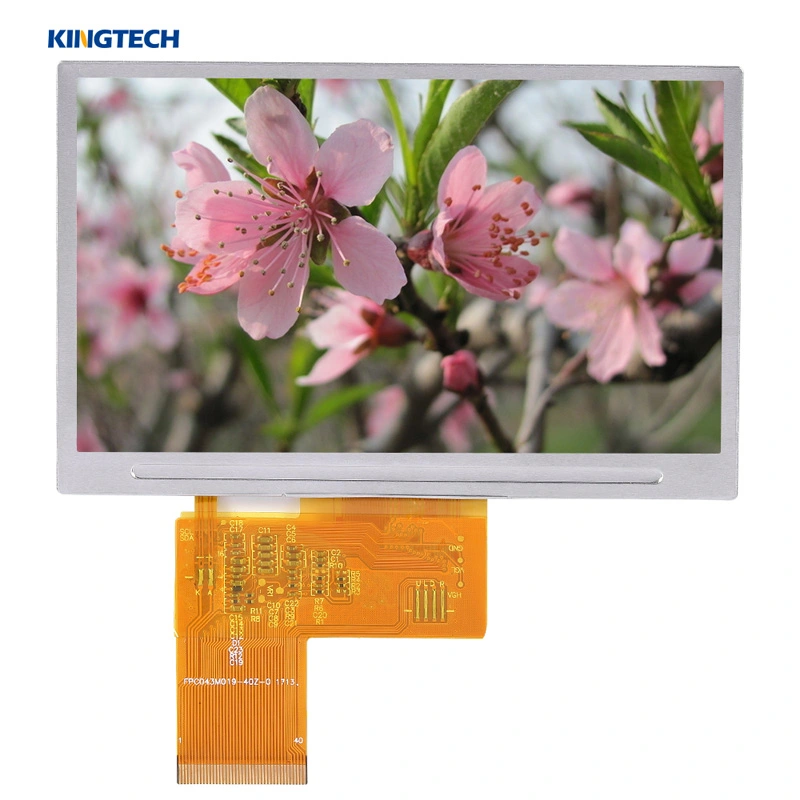

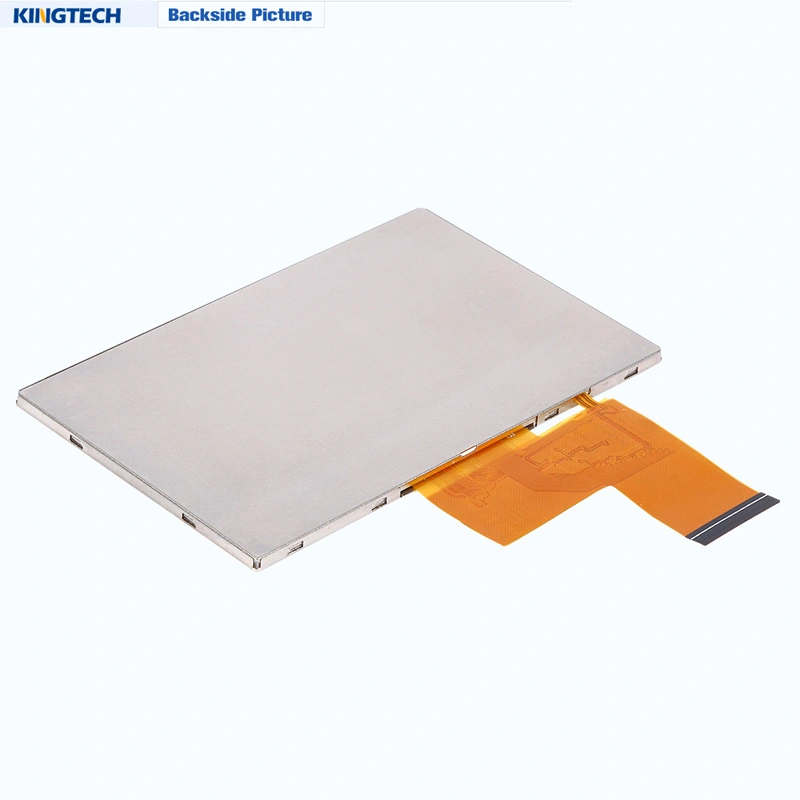

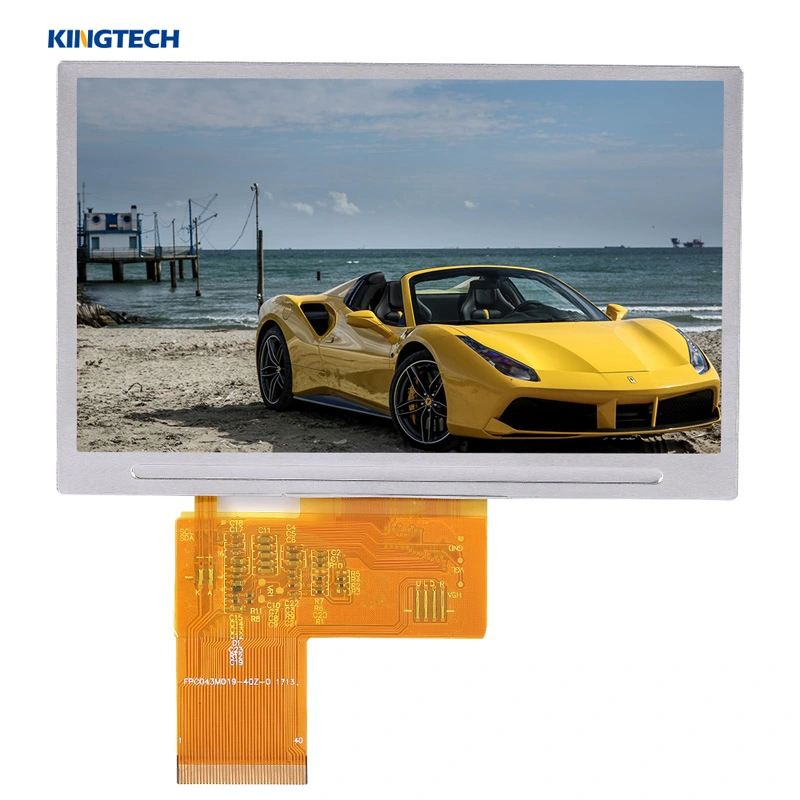

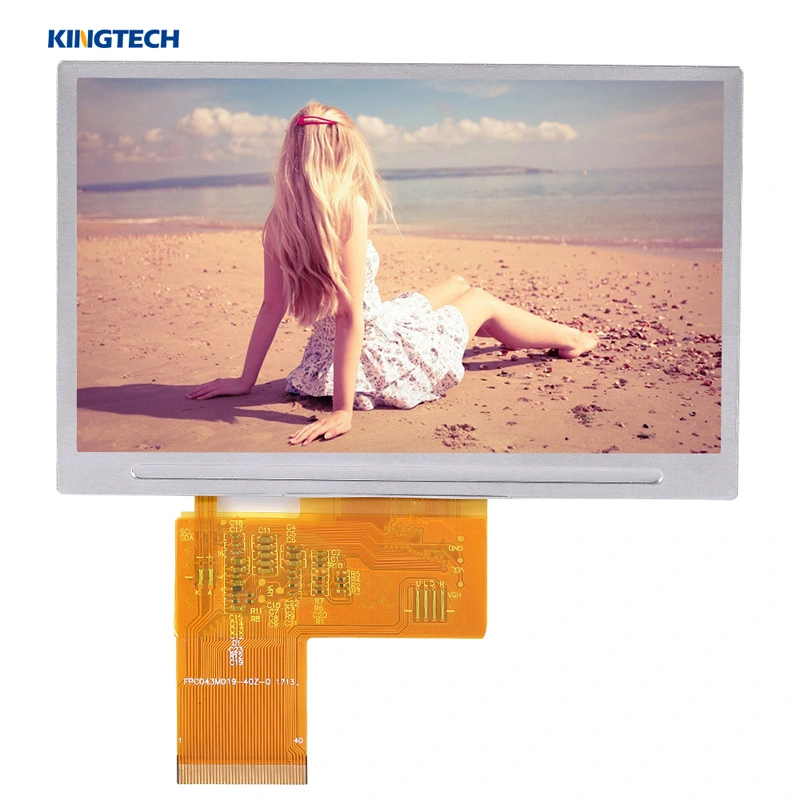

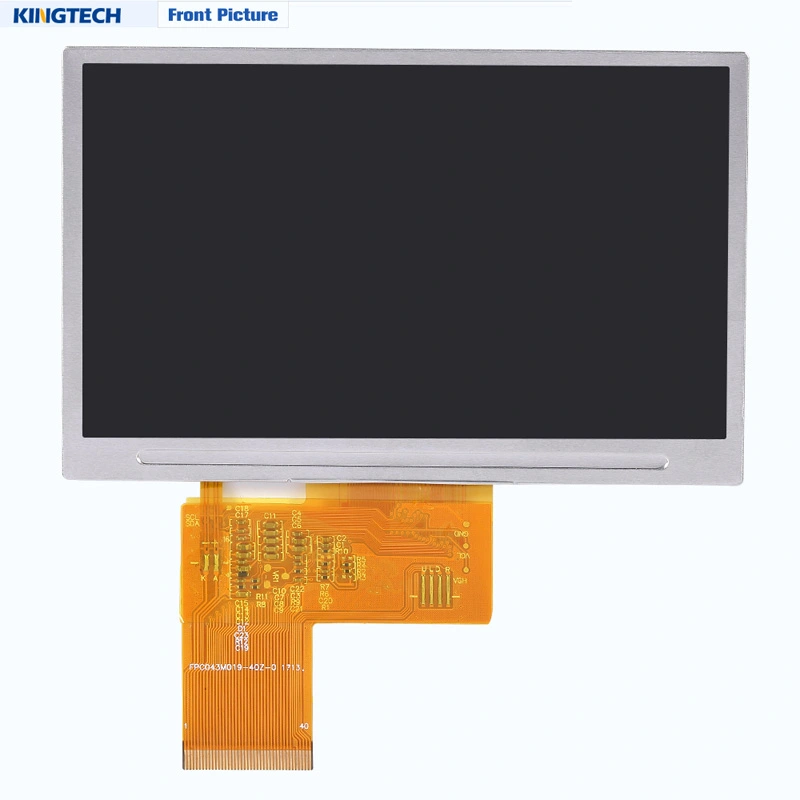

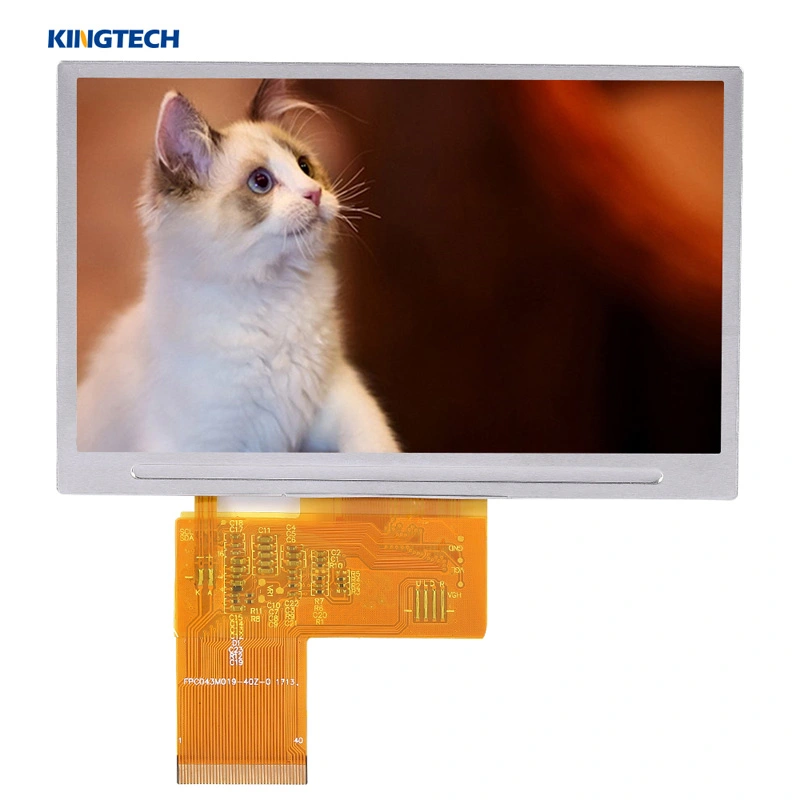

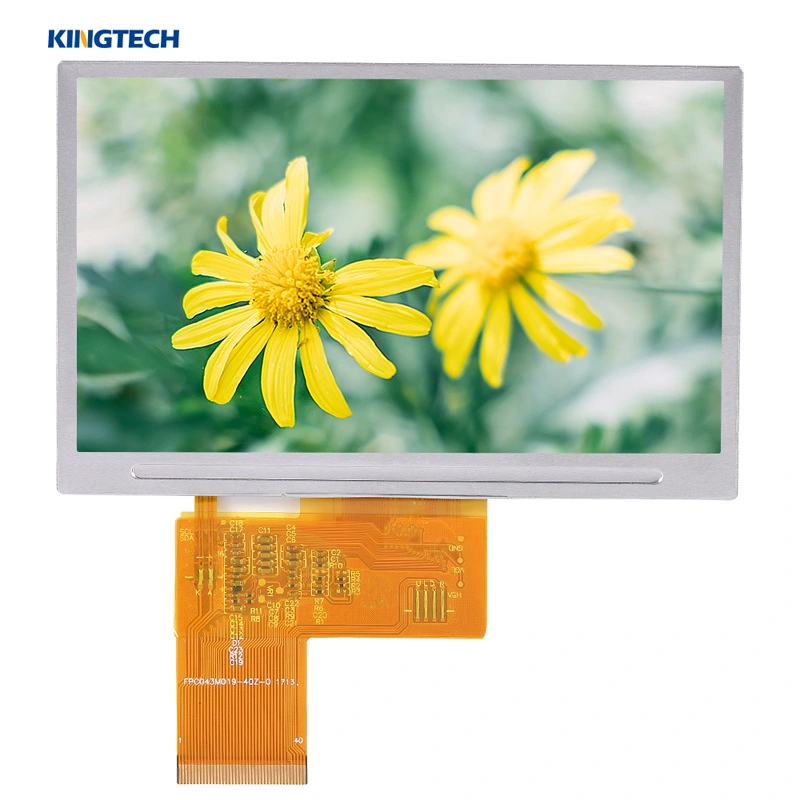

Kingtech WQVGA TN 12 o'clock 4.3inch 480x272 TFT LCD display is our leading 4.3 inch LCD display module product. The supply is in full stock and stable. This 4.3 inch TFT LCD module has an exciting resistive touch and capacitive touch. The 4.3 inch TFT display can reach 800nits and sunlight readable.
We, as a LCD display factory, are specialized in producing LCD module in China and can also custom the touch panel according to the customer's requirements.
12 O'clock TN type
480x272 / WQVGA resolution
Landscape
High brightness / Sun readable LCD/ 800nits
Support resistive touch and capacitive touch
Get a Quote
Documentation
| Item | kingtech 4.3 inch tft lcd module |
| Model No | PV043011HZ40L |
| Resolution | 480RGB * 272Dots |
| Outline Dimension | 105.5(W)x67.2(H)x4.15(T) |
| Active Area(mm) | 95.04(W)*53.856(H) |
| Interface | 24 BITS RGB interface |
| Brightness | 280cd/m2 up to 800nits |
| Viewing Angle | 12 O’clock |
| Driving IC | HX8257A |
| Display Mode | TFT Transmissive |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touchscreen | Resistive and capacitive touchscreen |
The 4.3 inch TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart Home, POS machine, E-bike, and the black box.
