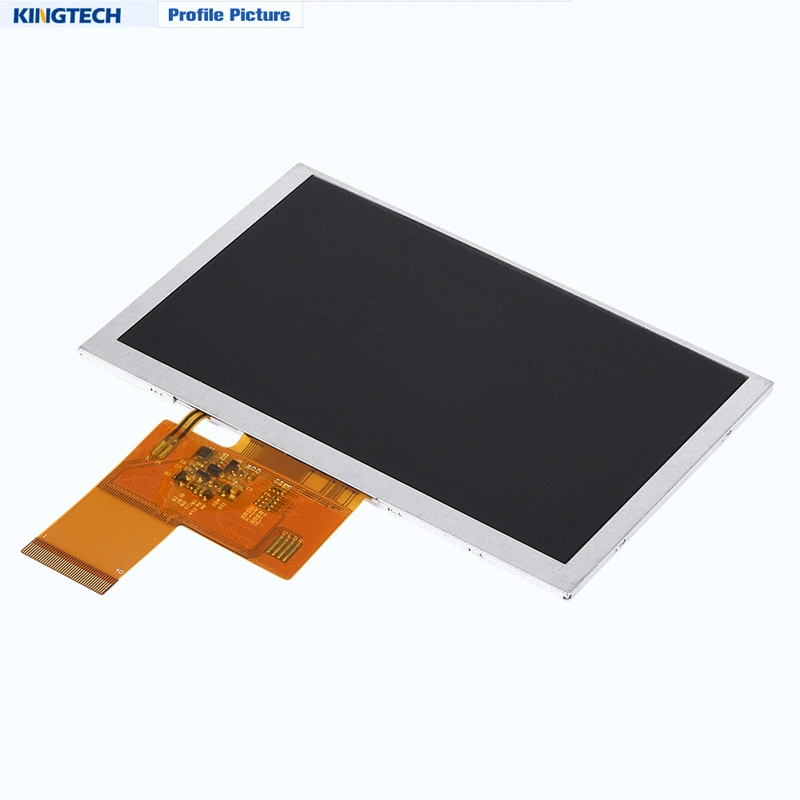

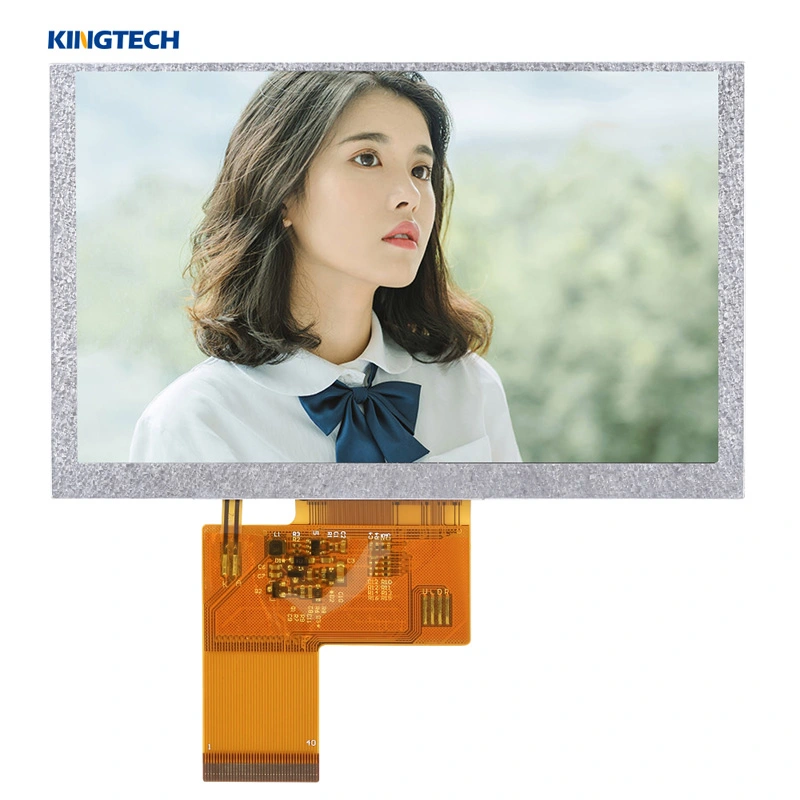

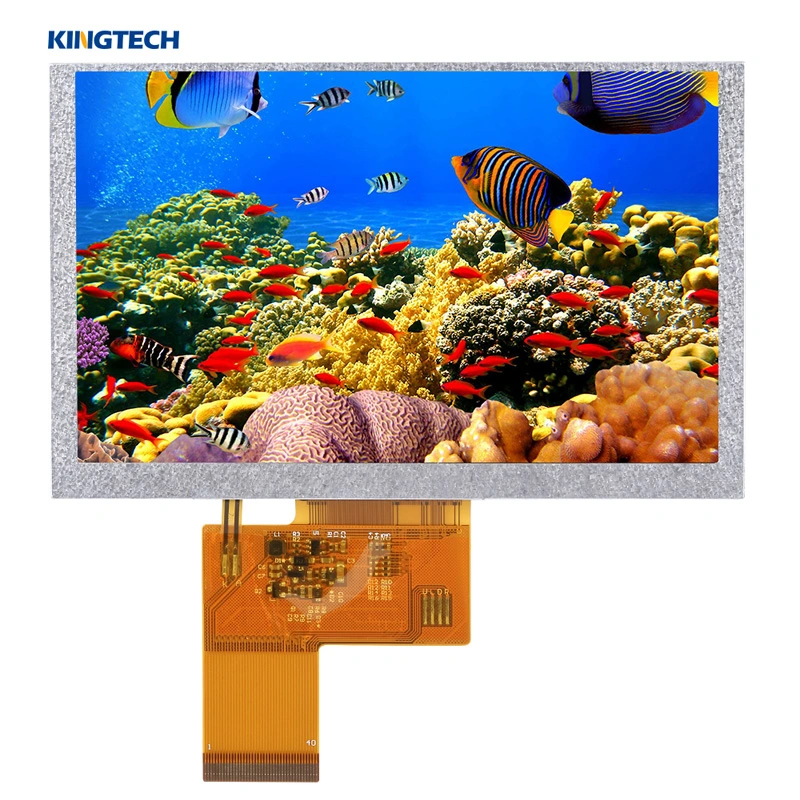

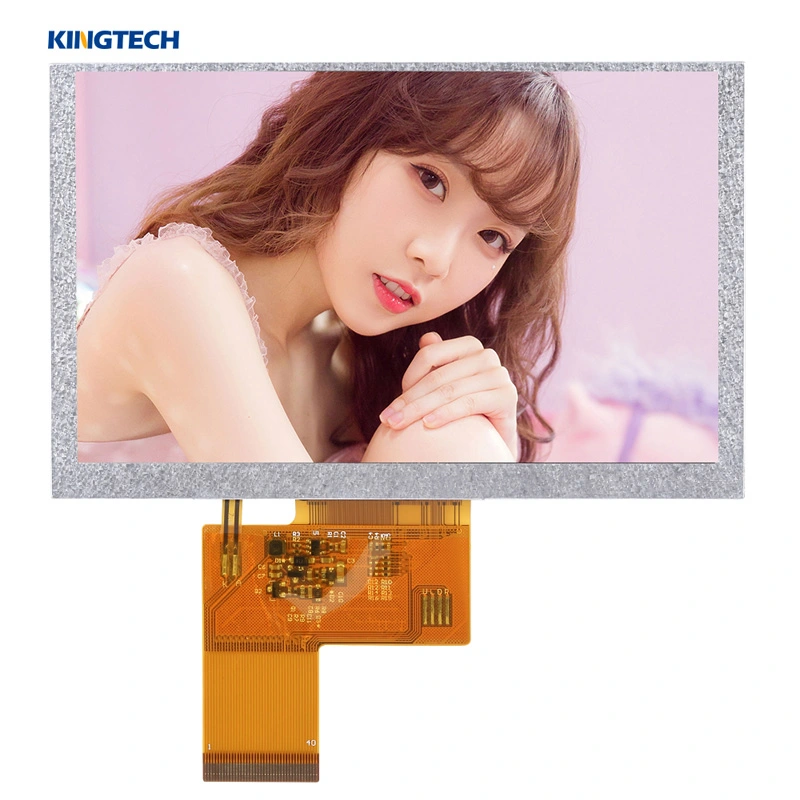

5inch TFT LCD module resolution is WVGA 800x480pixels. It supports RGB interface. It is full viewing angle adopting IPS technology. It is built with driver IC ST7265. And its backlight is 24 LED lights which is three parallel lines, 8 LEDs each line, its brightness is 1000nits(Typ). It is without touch. It can be operated at temperatures from -20 to +70; Its storage temperatures range from -30 to +80.
5.0 inch TFT display
800*480 /WVGA
Stable supply
Full View angle
RGB Interface
1000nits brightness
With capacitive touch and resistive touch
Outdoor use: Outdoor self service Kiosks,Motorcycle or Scooter Dashboard, Gas pump, EV charging station, GPS device, Fish Finder, Yacht & speed-boat control panels, radios, and navigation displays
Get a Quote
Documentation
| Item | High brightness 5.0 inch TFT 800x480 module screen |
| Model No. | PV05030Y0140B |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.7*75.8*3.0 |
| Active Area (mm) | 108*64.8 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | RGB Interface |
| Backlight | 8*3LED |
| Driving IC | ST7265 |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support capacitive touch and resistive touch |
| Application | Outdoor self service Kiosks, Motorcycle or Scooter Dashboard,Gas pump,EV charging station,GPS devices |
The high brightness 5.0 inch 800*480 WVGA TFT display module RGB interface can be used for Outdoor self service Kiosks, Motorcycle or Scooter Dashboard, Gas pump, EV charging station, GPS devices, Fish Finder, Yacht & speed-boat control panels, radios, and navigation displays.
