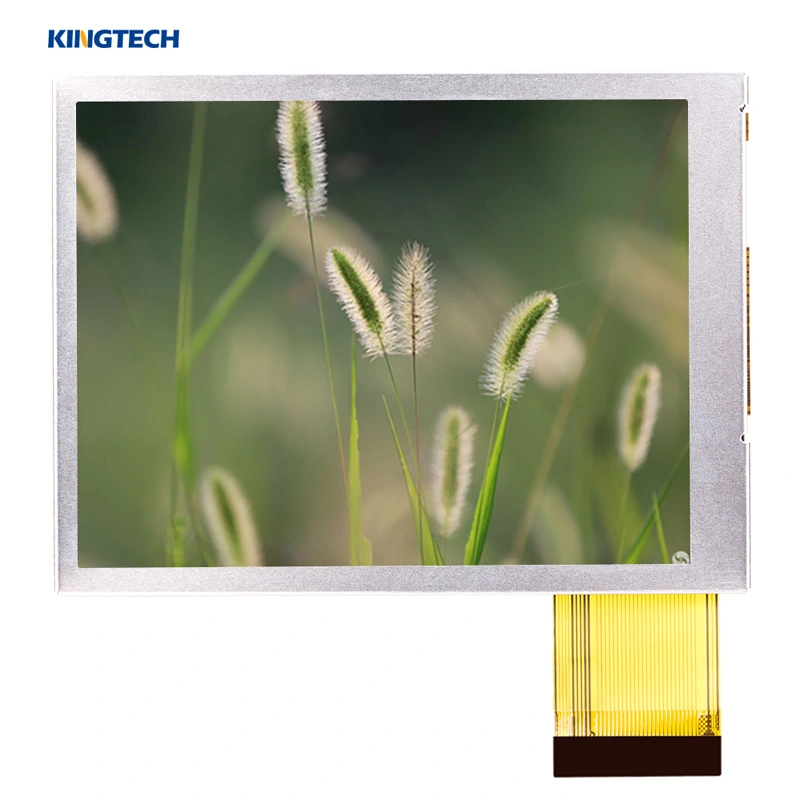

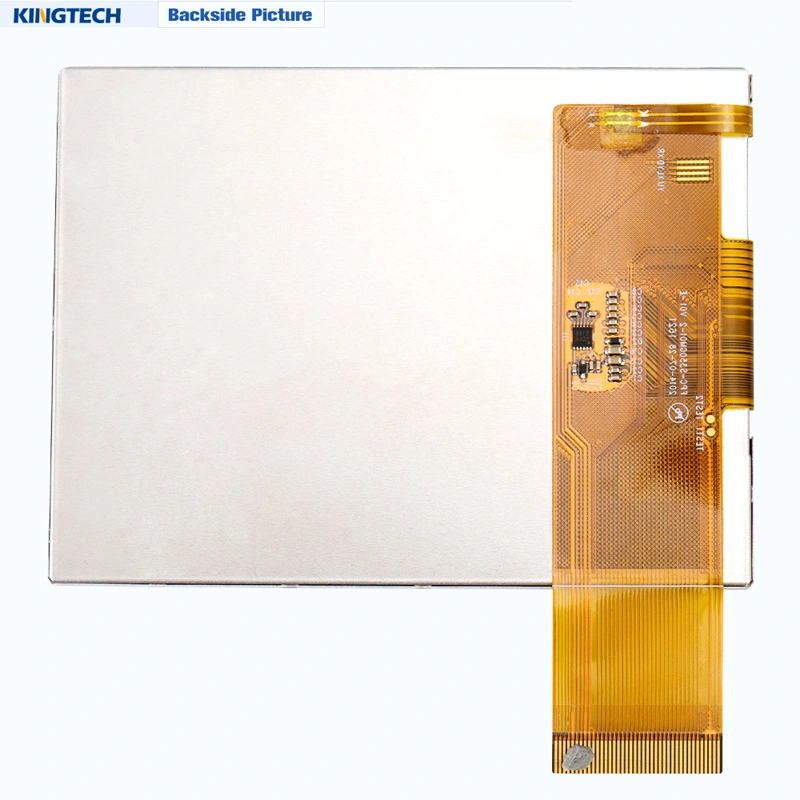

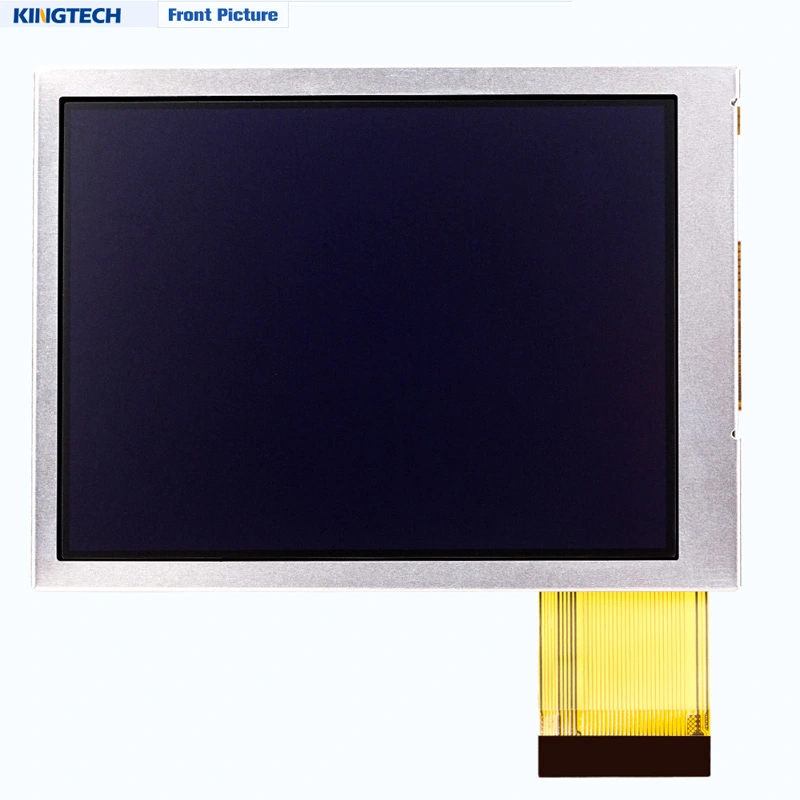

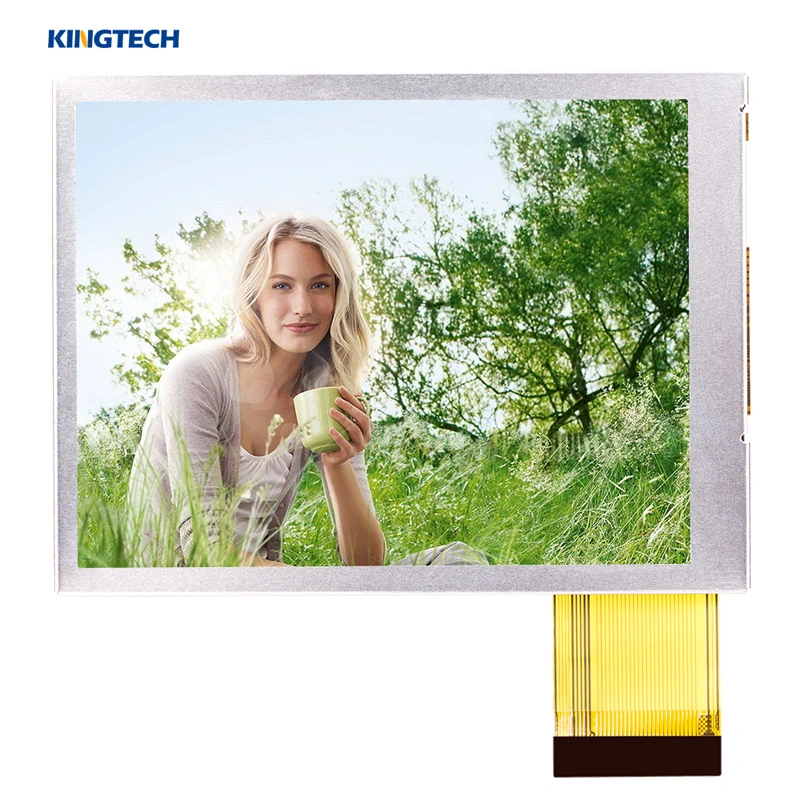

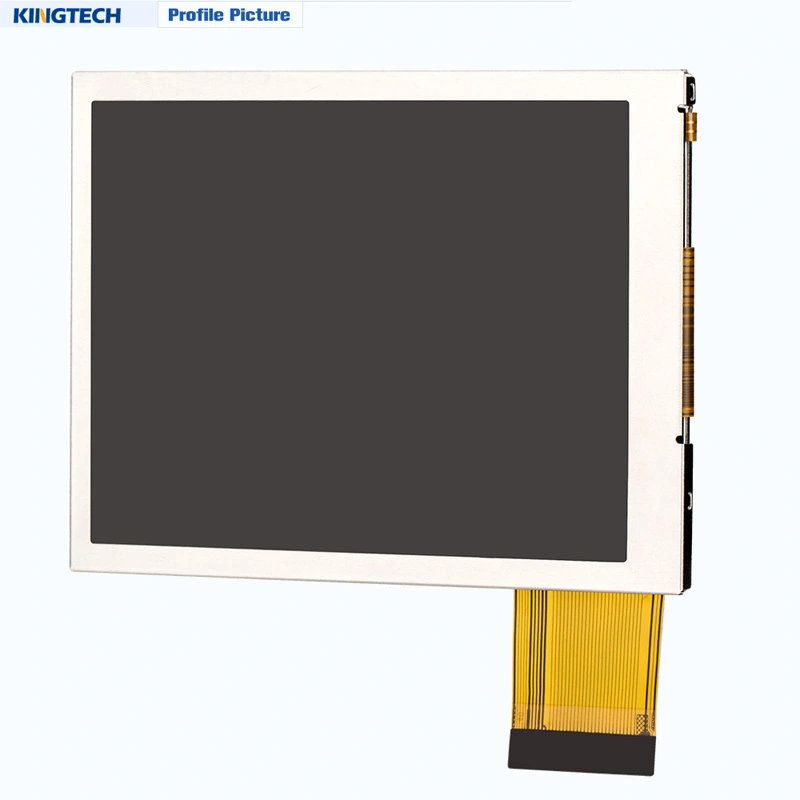

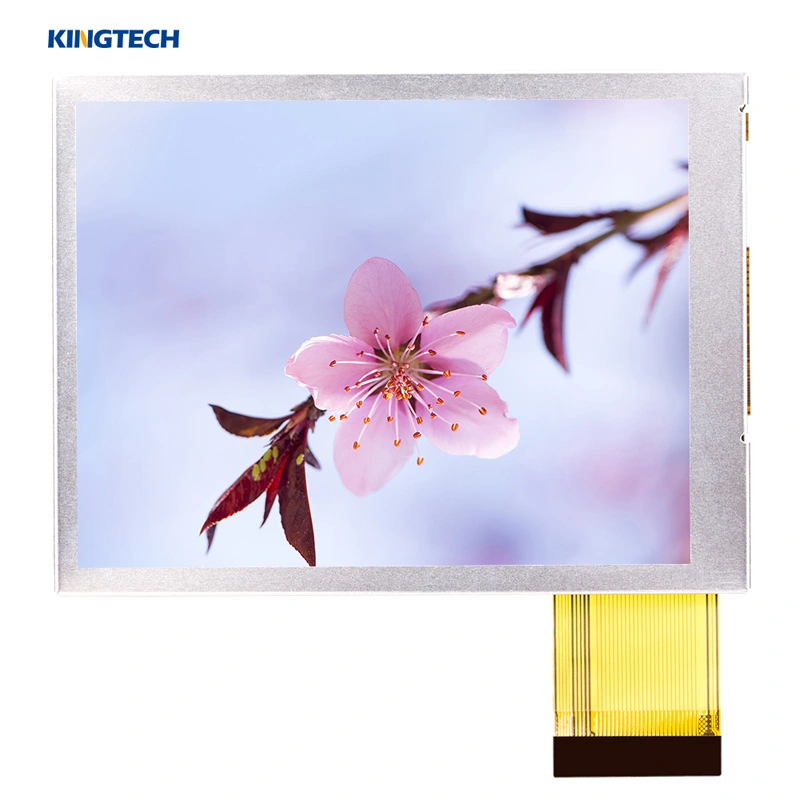

Kingtech 3.5inch IPS/free/all/wide viewing angle TFT LCD display is our most leading product.
The resolution is very high for a 3.5inch display, it's 480x640 (VGA). The 480x640 LCD can be used for outdoor device and can be sunlight readable. In addition, the 480x640 LCD also can save power. This 3.5inch IPS TFT LCD display is transflective.
Kingtech Diaplay, as one of LCD display panel manufacturers, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be warmly welcomed.
All/Free/Wide viewing angle
480x640 / 640x480 / VGA resolution
IPS TFT LCD display
High brightness/sunlight readable
Transflective technology
Power saving
Get a Quote
Documentation
| Item | 3.5 inch transflective 480x640 display |
| Model No | PV03502LZR40D |
| Resolution | 480(RGB)×640 |
| Outline Dimension | 63(W)×85(H)×2.9(T) |
| Active Area(mm) | 53.57W)×71.42(H) |
| Viewing Angle | ALL |
| Technology type | Transflective |
| Interface | 3-wire SPI + RGB interface |
| Driving IC | HX8363A |
| Display Mode | Normally Black |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 160nits |
The 3.5inch IPS display can be used for medical devices, handheld equipment, industrial control, smart home, and a black box.
The 3.5inch IPS is a transflective type, and also can be used in sunlight-readable such as advertising machines, automotive devices, and it can power saving.
