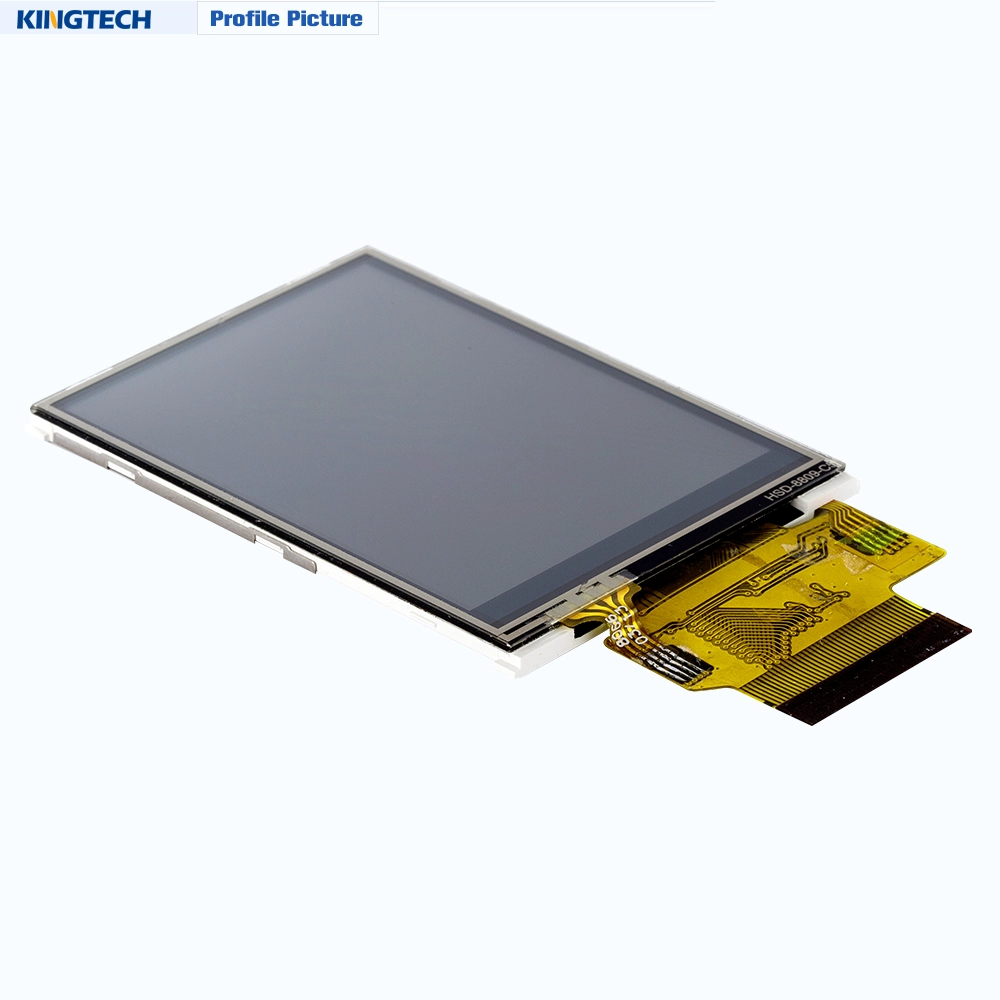

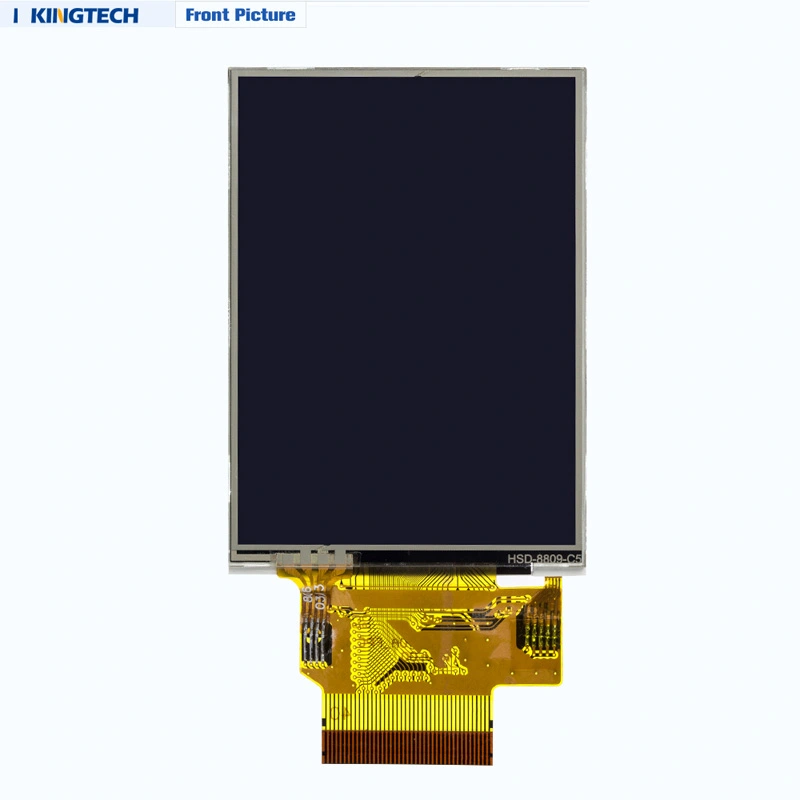

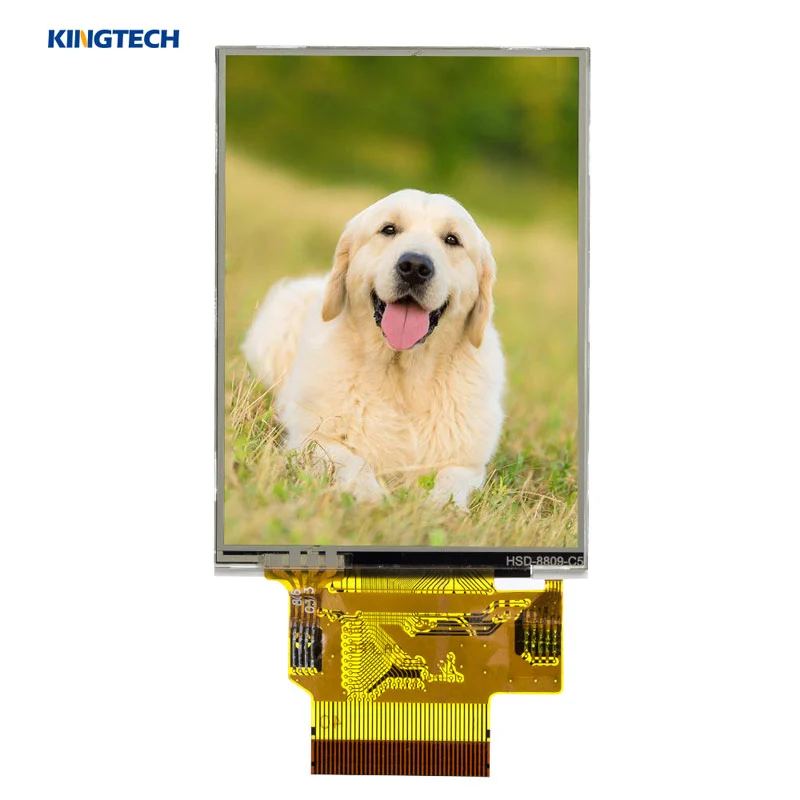

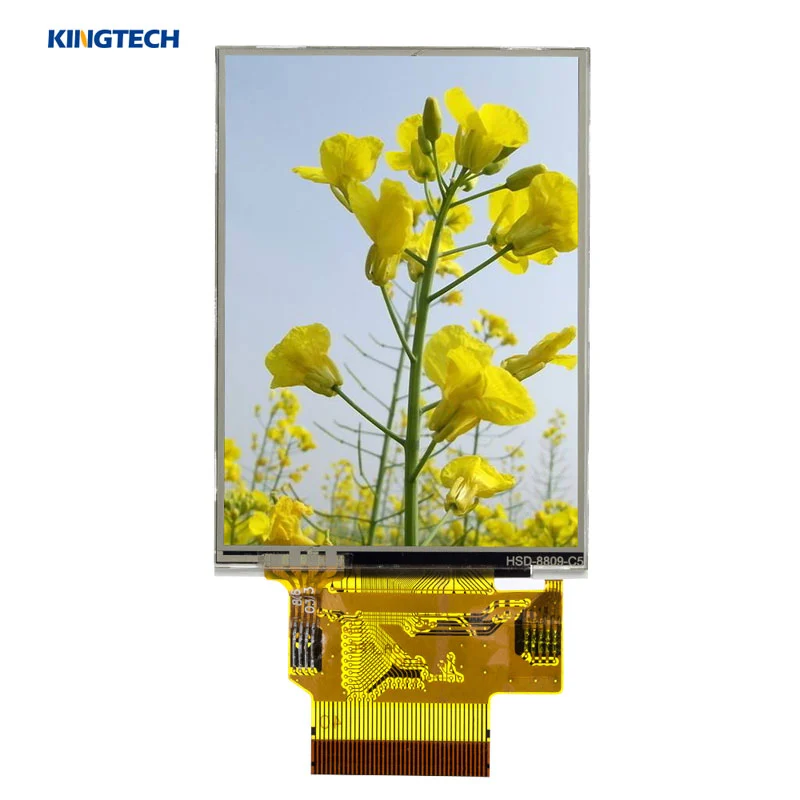

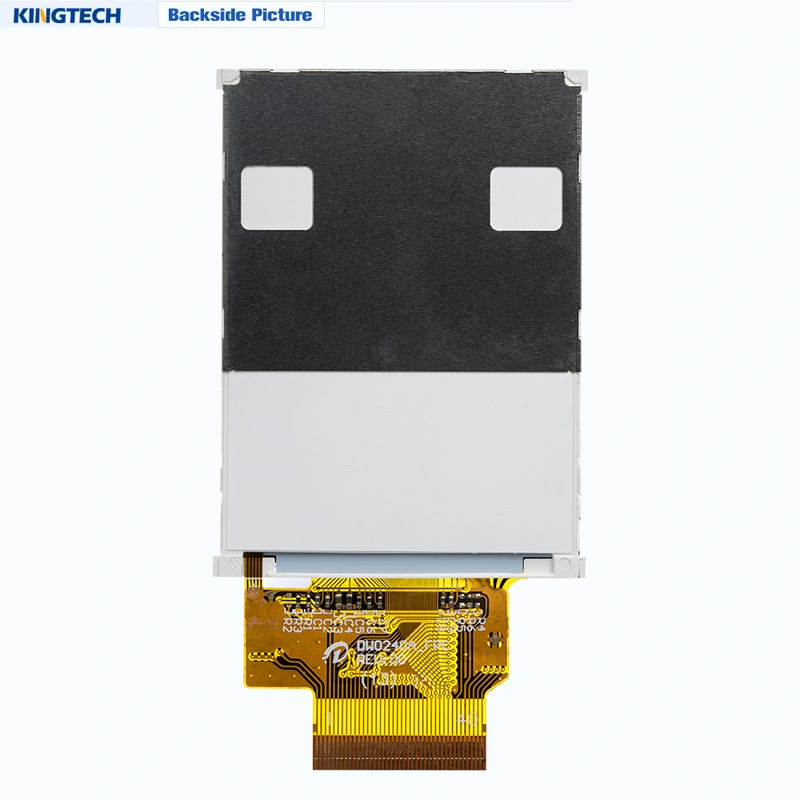

Kingtech 2.4inch 240x320 (QVGA) TN TFT LCD display is very popular in the market. This one is portrait type, and it's mainly used for a handheld device and E-bike equipment.
Plus the 2.4inch can reach 1000nits, so it is a sunlight readable LCD display. The 2.4inch TN LCD display has an exciting resistive touch and capacitive touch.
We, as a LCD module manufacturer, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be welcomed.
240x320 resolution / QVGA resolution
TN 6 O'clock type
Support MCU/SPI/RGB interfaces
Can make 1000nits and can be sunlight readable
Support resistive touch and capacitive touch
Small/tiny display
Get a Quote
Documentation
| Item | Kingtech 2.4 inch lcd display |
| Model No | PV02412HZ10M |
| Resolution | 240RGB*320DOTS |
| Outline Dimension | 60.26(H)*42.72(W)*2.5(T)(Exclude FPC) |
| Active Area(mm) | 48.96(H)*36.72(W) |
| Interface | 8,9,16,18-bits MPU / 6,16,18-bits RGB / 3,4Wire SPI. |
| Brightness | 220Cd/m2 and 1000nits |
| Viewing Angle | 6 o'clock |
| Driving IC | ILI9341 |
| Display Mode | Transmissive/Normally white |
| Operating Temperature | -10 to +60℃ |
| Storage Temperature | -20 to +70℃ |
| Touch panel | Resistive and capacitive touch panel |
The 2.4inch TN LCD display can be used for medical devices, handheld equipment, industrial control, smart Home, POS machines,s and telecom products.
The 2.4inch TN 1000nits also can be used in sunlight-readable such as advertising machine, automotive device, and E-Bike.
