7 inch 800x1280 MIPI interface IPS display

  • 7 inch 800 1280 mipi interface ips display1
  • 7 inch 800 1280 mipi interface ips display2
  • 7 inch 800 1280 mipi interface ips display3
  • 7 inch 800 1280 mipi interface ips display1
  • 7 inch 800 1280 mipi interface ips display2
  • 7 inch 800 1280 mipi interface ips display3

Kingtech 7inch 800x1280 MIPI interface IPS display supply is very stable. This 7inch portrait screen module supports MIPI interface. The brightness is 1100nits, it’s high brightness and sunlight readable, and the lifetime is 50000h. The 7inch portrait screen screen used JD9365DA-H3 driver IC. For the touch part, Kingtech can custom touch panel according to the customer’s requirements.



Features of 7 inch 800x1280 MIPI interface IPS display

  • 800x1280

  • Portrait /vertical screen

  • IPS / Free / All / Wide viewing angle

  • 1100nits high brightness/ sunlight readable

  • D9365DA-H3 Driver IC

  • MIPI interface

  • Stable supply

  • Capacitive touch to be customized


Specifications of 7 inch 800x1280 MIPI interface IPS display

Item7inch 800x1280 MIPI interface display
Model NoPV07040T0240R
Resolution800x1280

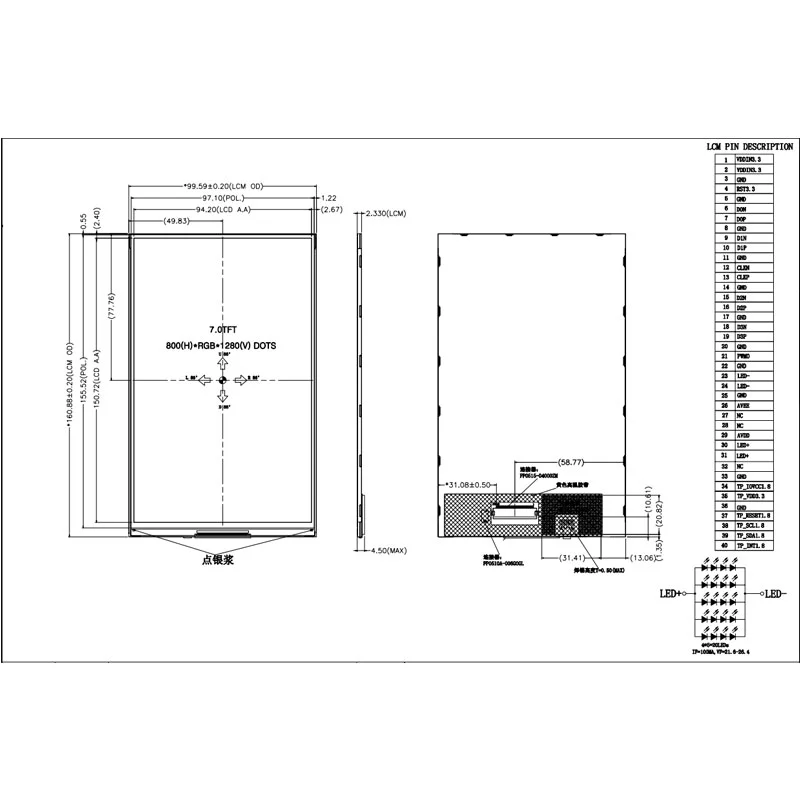

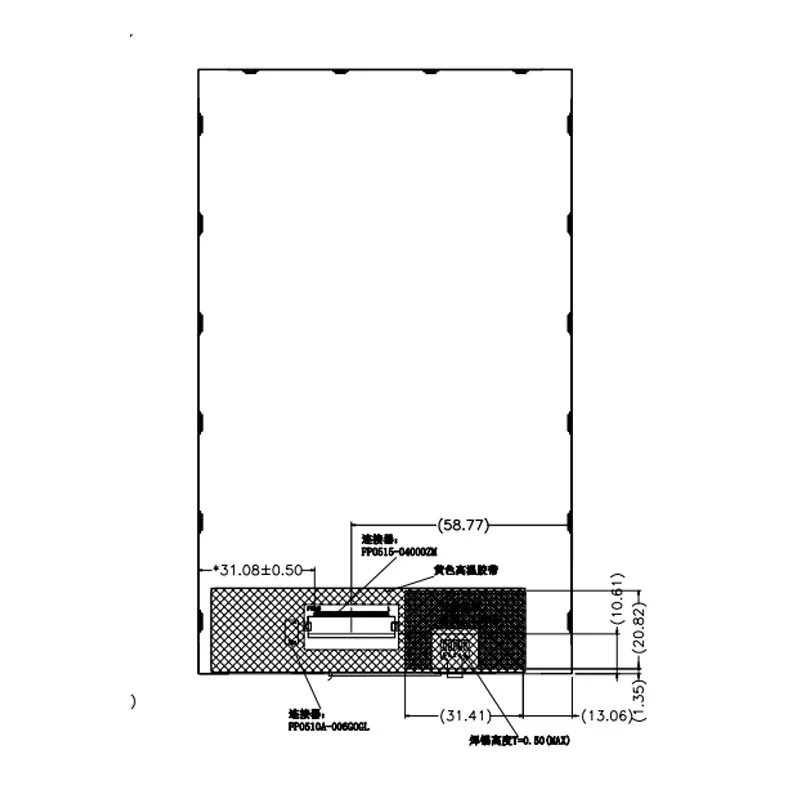

Outline Dimension99.59*160.88*2.33
Active Area(mm)94.2*150.72
InterfaceMIPI
Driver ICJD9365DA-H3
Brightness1100nits
Viewing AngleAll
Display ModeTransmissive / Normally black
PIN40
Operating Temperature-10℃~60℃
Storage Temperature-20℃~70℃
TouchscreenCapacitive touch screen


Application of 7 inch 800x1280 MIPI interface IPS display

  • The 7inch 800X1280 MIPI interface 1000nits IPS display module can be used for agricultural equipment, medical device, game console, outdoor device and smart home etc.
