Kingtech 10.4 inch 800*600 LCD display supply is very stable. This 10.4inch supports the LVDS interface. In addition, the 10.4 inch SVGA TFT module lifetime is 30000h, the brightness is 350nits, and this 10.4-inch screen is normally white. For the touch part, Kingtech can custom the touch according to the customer's requirements.
TN / Normally white
800x600 / SVGA
Stable supply
Wide temperature/-30℃~+70℃
350nits brightness
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | 10.4inch 800x600 LCD display |
| Model No | PV104000S20A |
| Resolution | 800x600 / SVGA |

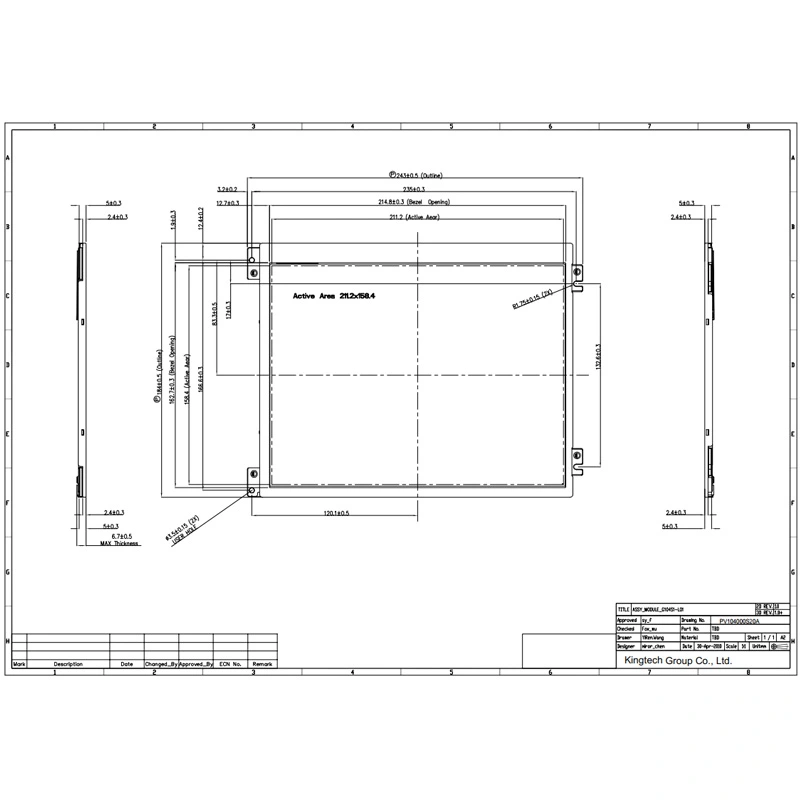

| Outline Dimension | 243 x 184 x 6.7 |
| Active Area(mm) | 211.2x 158.4 |
| Interface | LVDS 6/8 bit |
| Brightness | 350nits |
| Viewing Angle | 12 O'clock |
| LED life | 30000h |
| Display Mode | TN / Transmissive / Normally white |
| PIN | 20 |
| Operating Temperature | -30℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Touchscreen | Can custom capacitive touchscreen |
The 10.4inch 800x600 TFT LCD display can be used for agricultural equipment, medical device, game console and smart home, etc.
