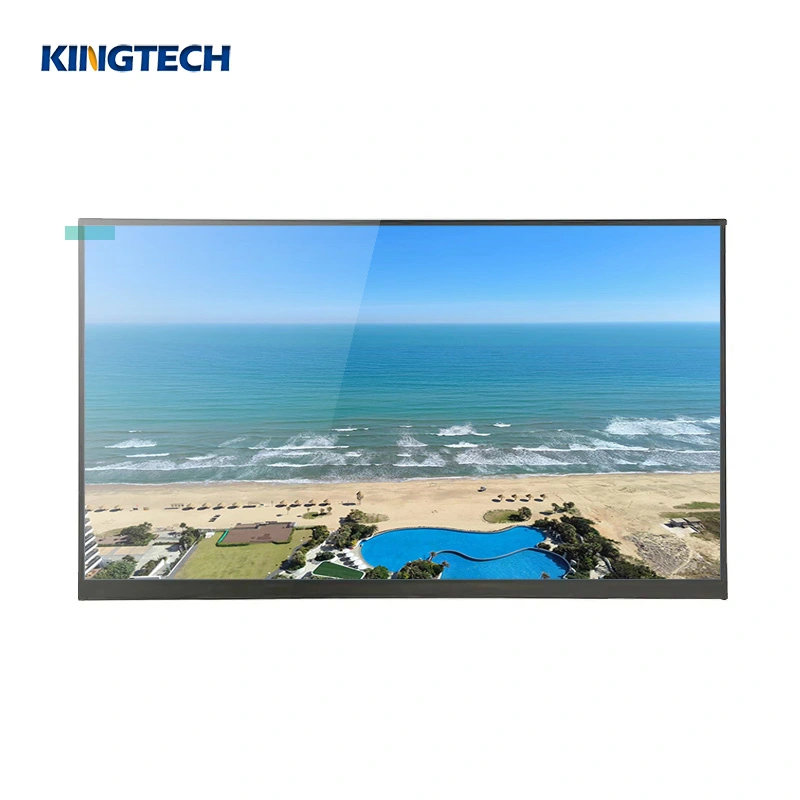

Kingtech 11.6 inch 1920*1080 TFT module display supply very stable. This 11.6 inch supports eDPinterface. In addition, the 11.6 inch TFT display module brightness is 1000nits for outdoor equipment, and this 11.6inch screen is all viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
Full/All/Wide viewing angle
1000nits brightness/Sunlight readable/High brightness/Outdoor
Can custom resistive touch and capacitive touch
Get a Quote
Documentation

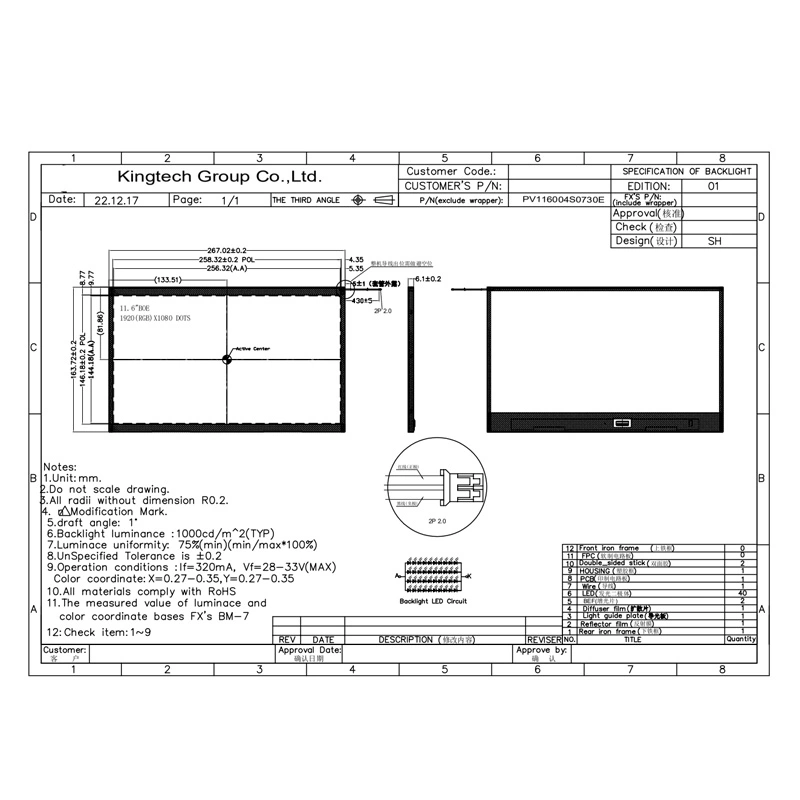

| Item | 11.6inch IPS 1920*1080TFT display |
| Model No. | PV116004S0730E |
| Resolution | 1920*1080 |
| Outline Dimension (mm) | 267.72*164.42*6.1 |
| Active Area (mm) | 256.320*144.180 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | eDP |
| Backlight | 4*10LED |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial or outdoor, advertisement and thermostat, automotive |
The 11.6 inch 1920*1080 TFT display module can be used for Medical, hand-held device, industrial or outdoor, advertisement and thermostat, video door, automotive, 3D printer.
