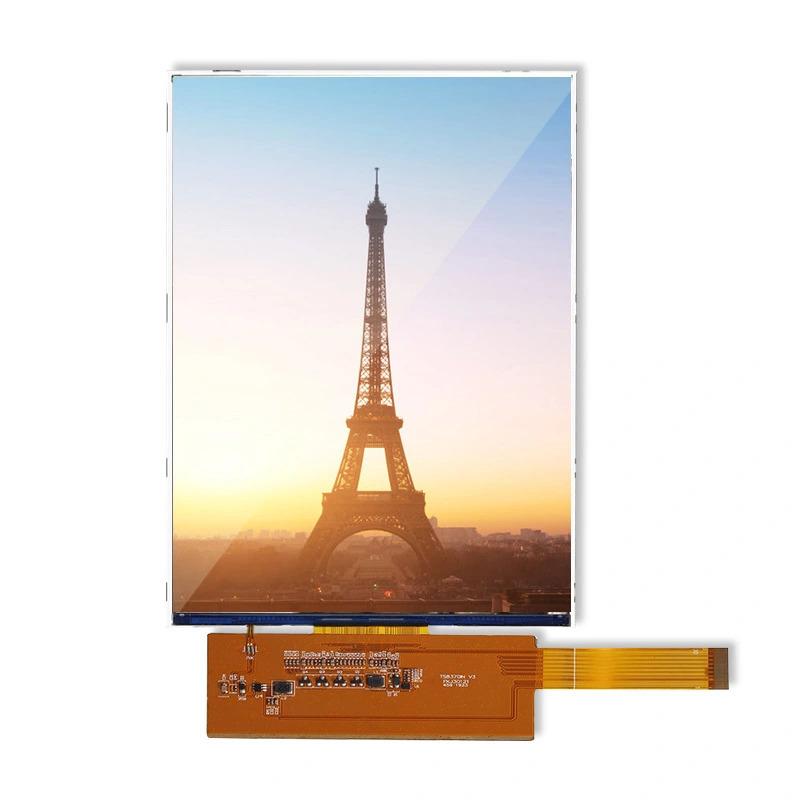

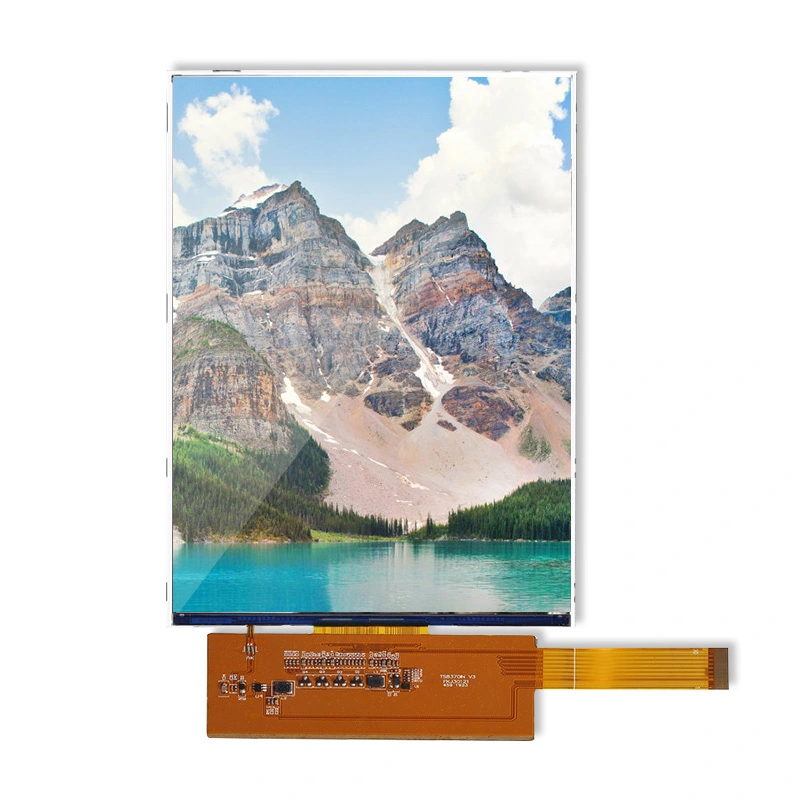

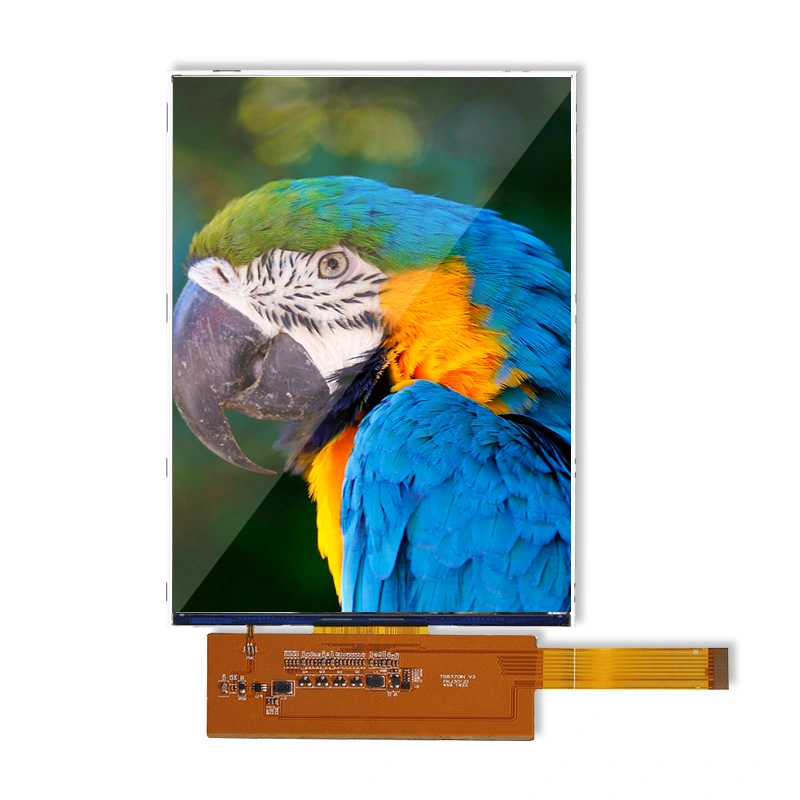

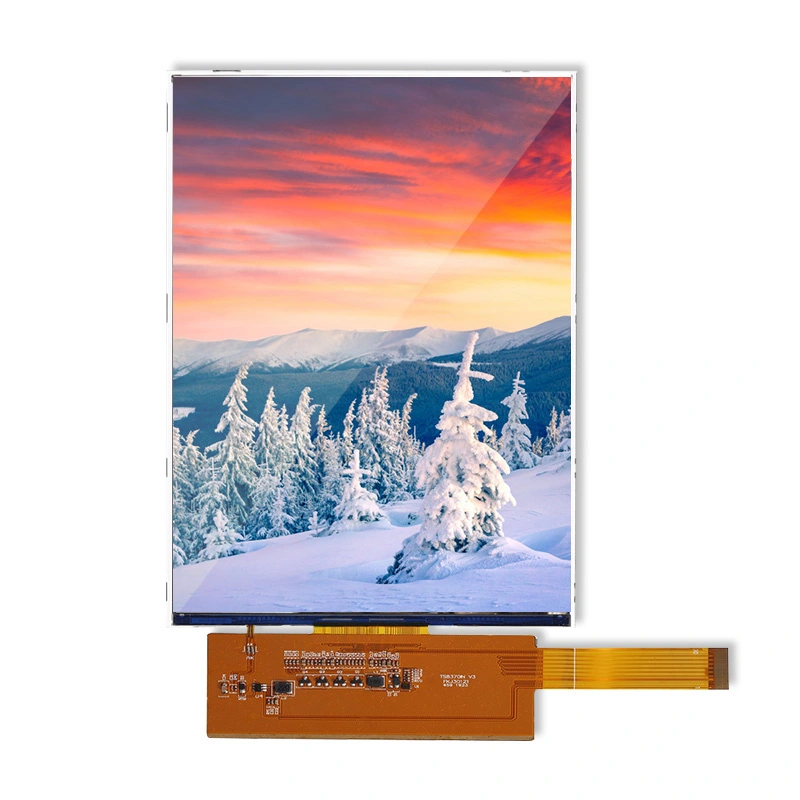

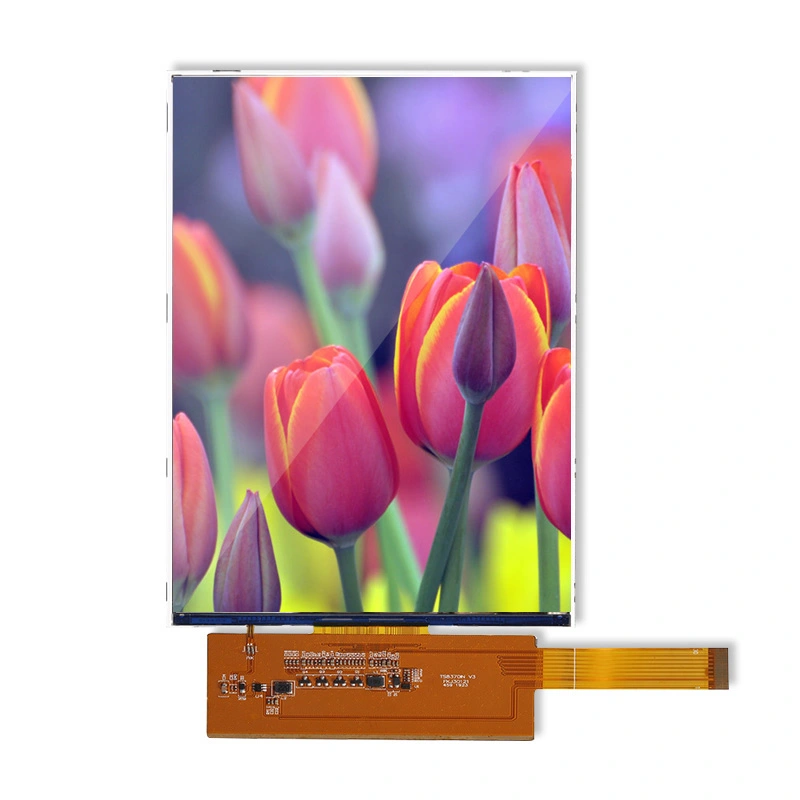

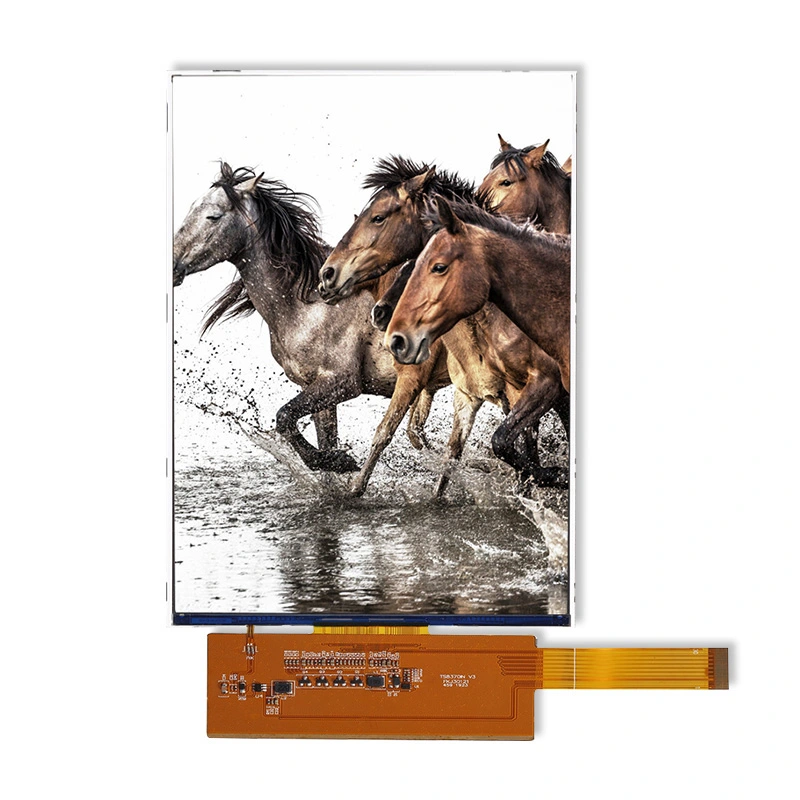

Kingtech 7inch 800x1280 IPS All / free/ wide viewing angle TFT LCD display is one of our main products.
The 7inch module has a special resolution of 800x1280, and the interface is MIPI 4 lane. The brightness is 500nits. The 7inch LCD screen has existing capacitive touch and also can custom LCD screens according to customer requirements.
Kingtech Diaplay, as a LCD panel company, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be welcomed.
800x1280 resolution
All / Free / Wide viewing angle
MIPI 4 lane interface
Portrait / vertical display
Support capacitive touch
| Item | 7'' TFT LCD Display |
| Model No | PV07011TD30L |
| Resolution | 800x1280 |
| Outline Dimension | 102.05x162.40x3.13 |
| Active Area(mm) | 94.2x150.72 |
| Interface | MIPI-4 Lanes |
| Viewing Angle | All/IPS |
| Driving IC | JD9366 |
| pin | 30-pin |
| Pixel Pitch (mm) | 0.03925(H) x 0.11775(V) |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -20 to +70℃ |
| Brightness | 500Cd/m² |
The 7inch 800x1280 IPS TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, logistics device, and E-Bike.
