8-PV08000TYD40C

Kingtech 8inch 1024x600 LVDS interface display supply is very stable. This 8inch WSVGA LCD screen supports LVDS inteface and the 8inch touch screen is 450nits brightness. The 8inch landscape module LCD lifetime is 30000h. For the touch part, Kingtech can custom the 8inch touch according to the customer's requirements.


  • 1024x600 / WSVGA

  • LVDS interface

  • Landscape / Horizontal Type

  • Stable supply

  • Capacitive touch screen to be customized

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

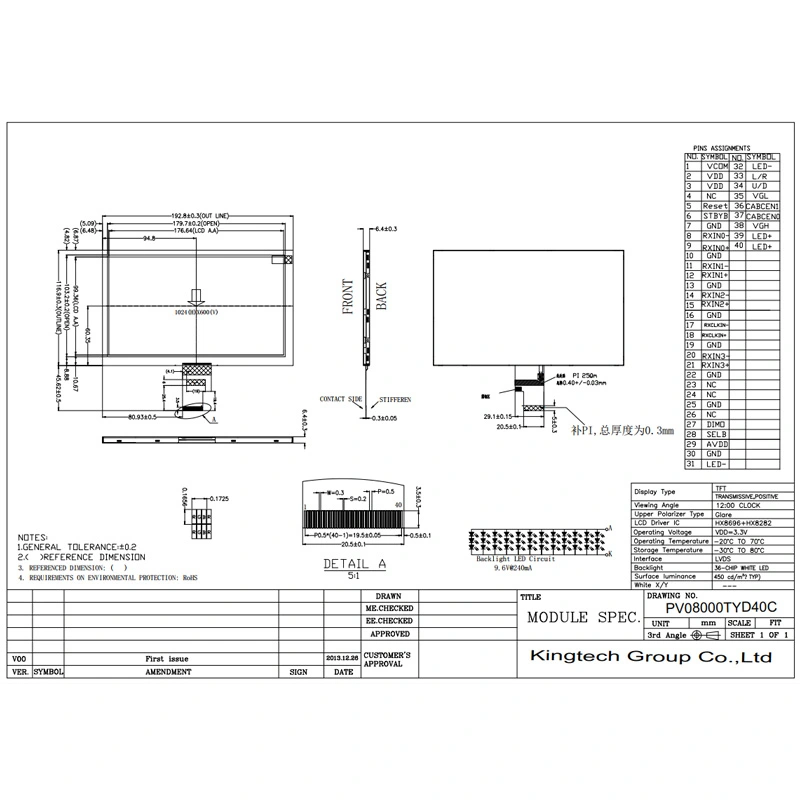

Specification of 8-PV08000TYD40C

Item8inch 1024x600 LVDS interface display
Model NoPV08000TYD40C
Resolution1024x600

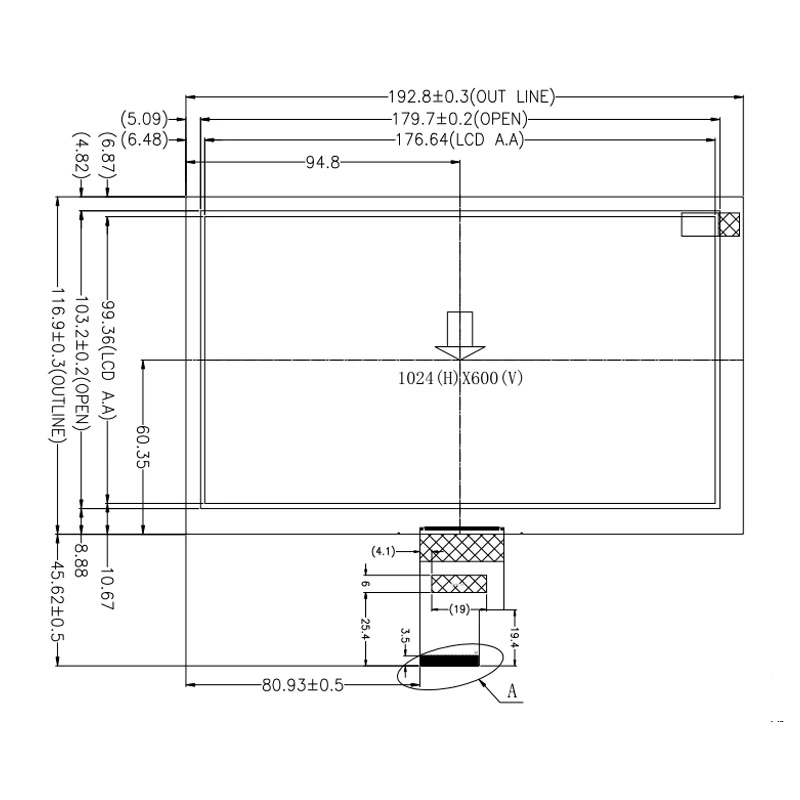

Outline Dimension192.8*116.9*6.4
Active Area(mm)176.64*99.36
InterfaceLVDS
Brightness450
Driver ICHX8696+HX8282
Viewing Angle12 O'clock
LED life30000h
Display ModeTN / Transmissive / Normally white
PIN40
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
TouchscreenCan custom resistive and capacitive touch screen


Application of 8-PV08000TYD40C

  • The 8inch 1024x600 LVDS interface 12 o'clock viewing angle display module can be used for agricultural equipment, industrial devices, game consoles, and smart homes, etc.
