Kingtech 7.0" inch 1024*600 TFT module display supply very stable. This 7.0" inch supports RGB interface. In addition, the 7.0" inch TFT display module brightness is 850nits, and this 7.0" inch screen is All viewing type. For the touch part, we can also customize GT911 capacitive and resistive touch according to the customer requirements.
Stable supply
850nits brightness/Sunlight readable/High brightness/Outdoor
-30~85/Wide working temperature
Can custom resistive touch and capacitive touch
Get a Quote
Documentation
| Item | 7.0 inch IPS 1024*600 TFT display |
| Model No. | PV07071H0550Y-CT1 |
| Resolution | 1024*600 |

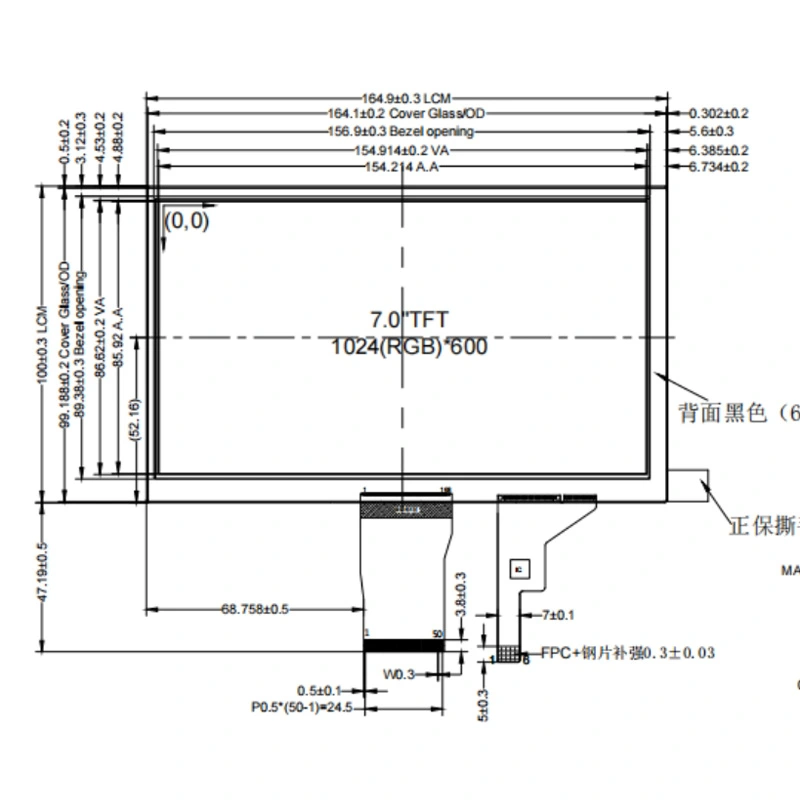

| Outline Dimension (mm) | 164.9*100*9 |
| Active Area (mm) | 154.214*85.92 |
| Viewing Angle | All |
| Brightness | 850nits |
| Interface | RGB |
| Backlight | 3*10LEDs |
| Driving IC | EK79001+EK73215 |
| PIN No. | 50 |
| Operating Temperature | -30~85C |
| Storage Temperature | -30~85C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
The 7.0" inch 1024*600 TFT display module can be used for Medical, hand-held device, industrial, Smart-home, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
