Kingtech 2.4inch 450*600 AMOLED display supply very stable. This 2.4inch supports SPI/MCU/MIPI interface. In addition, the 2.4 inch 450*600 AMOLED display module brightness is 680 nits, and this 2.4 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
2.4 inch AMOLED display
450*600
Stable supply
All viewing angle/Wide viewing angle
SPI/MCU/MIPI interface
680nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| Item | 2.4 inch 450*600 AMOLED display |
| Model No. | PV02420J0145V-CO |
| Resolution | 450*600 |

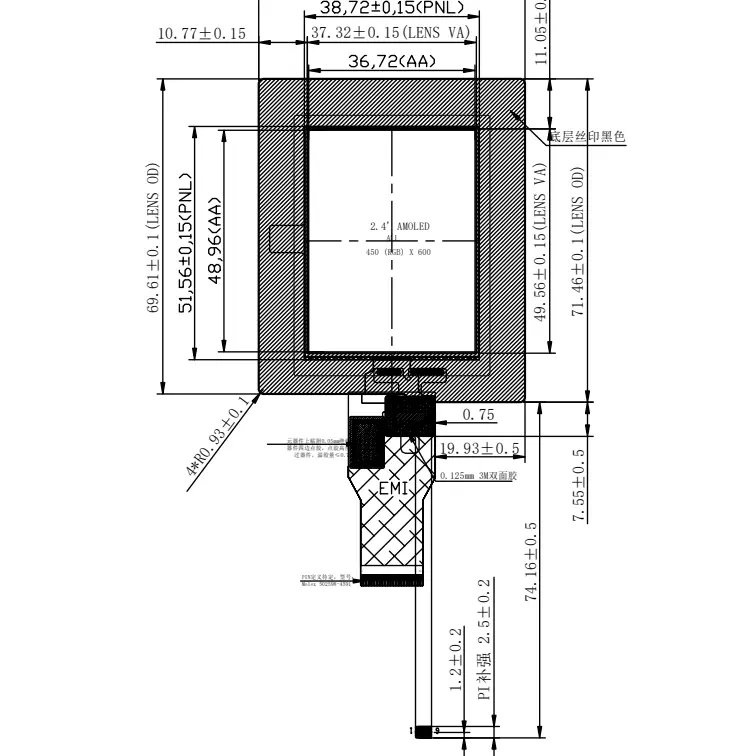

| Outline Dimension (mm) | 58.86*69.61*1.88 |
| Active Area (mm) | 36.72*48.96 |
| Viewing Angle | All |
| Brightness | 680nits |
| Interface | RGB /MCU /SPI |
| Backlight | / |
| Driving IC | RM690B0 |
| PIN No. | 45 |
| Operating Temperature | -20~80 |
| Storage Temperature | -40~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial， |
The 2.4 inch 450*600 AMOLED display module can be used for E-Bike, Medical, hand-held device, industrial or others.
