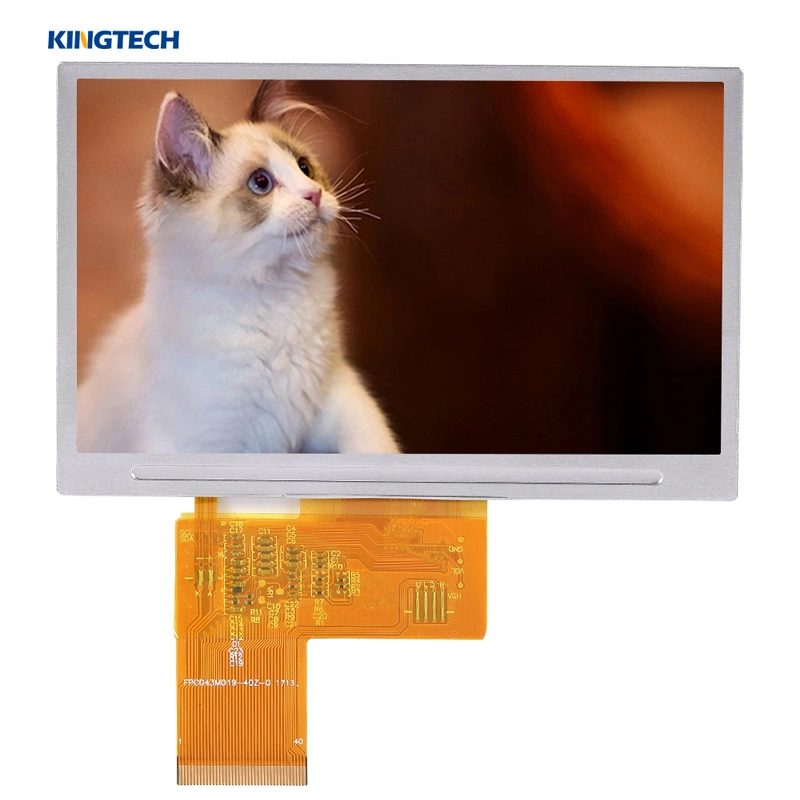

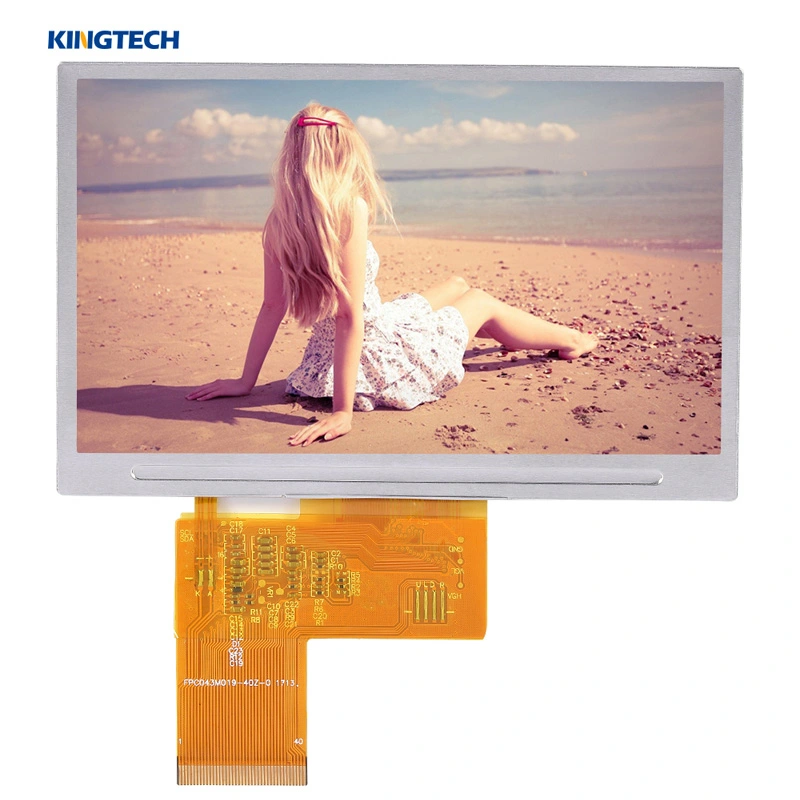

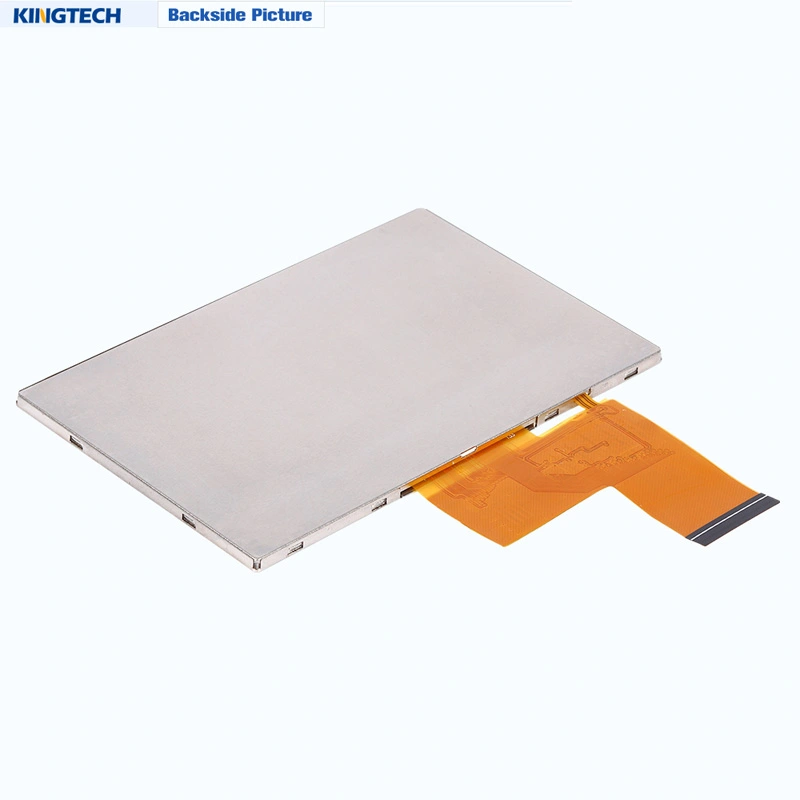

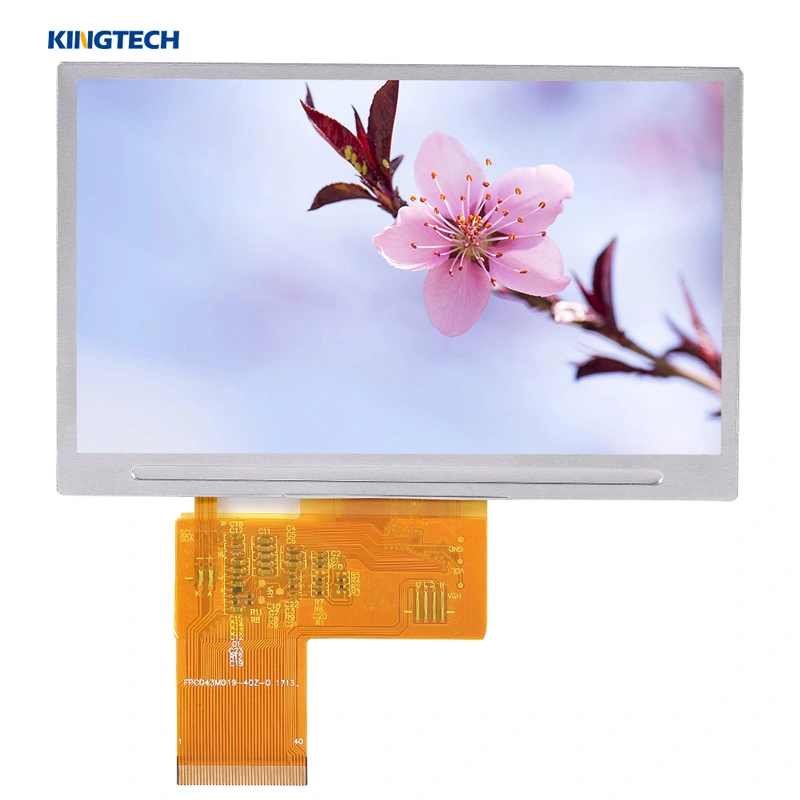

Kingtech 4.3 inch 480*272 Uart Serial Hmi Display Module PV043800480-HMI Board is one of Kingtech's touch control serial screen, using modular design,has excellent electrical characteristics and anti-interference, stable and reliable work, industrial standards . It supports TTL UART (TXD/RXD) interface. It is consist of 4.3-inch800x480 LCD and a HMI board. It is equipped with LED backlight, and capacitive touch screen. It's typical features are With touch screen, White LED backlight, USB connector Optional. Its operating temperature is -20 ~ 60°C and storage temperature is -30 ~ 70°C. This model is recommended for industrial use.It can provide a display brightness of 250 cd/m². It uses a UART signal interface.
IPS TFT LCD display
4.3inch 800x480 /WVGA
Stable supply
All/Full/Wide/IPS viewing angle
250nits brightness
Touch optional
Serial board /HMI board
Get a Quote
Documentation
| Item | 4.3inch 800x480 with UART HMI Board LCD display |
| Model No. | PV043800480-HMI Board |
| Resolution | 800*480/WVGA |
| Outline Dimension (mm) | 121.9*73.2 |
| Active Area (mm) | 95.0*53.9 |
| Viewing Angle | All |
| Brightness | 250nits |
| Interface | USB/UART |
| Backlight | / |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Touch screen | Support custom capacitive touch and resistive touch |
| Application | Industrial, Cope with most indoor scenes, Access control, Home appliance |
The 4.3 inch touch control serial screen can be used for Industrial, cope with most indoor scenes, Access control, Home appliance.
