Kingtech 7inch 800x1280 MIPI interface display supply is very stable. This display supports the MIPI interface. The 7inch WXGA IPS/All/Full/Free/Wide viewing angle TFT LCD screen lifetime is 30000h. This 7inch touch screen LCD has the existing capacitive touch and Kingtech can also custom the touch according to the customer's requirements.
800x1280/WXGA
IPS/Free/All/Full/Wide viewing angle
40pin
MIPI interface
Stable supply
Capacitive touch screen to be customized
| Item | 7inch 800x1280 MIPI interface IPS display |
| Model No | PV07035H0140L |
| Resolution | 800x1280 |

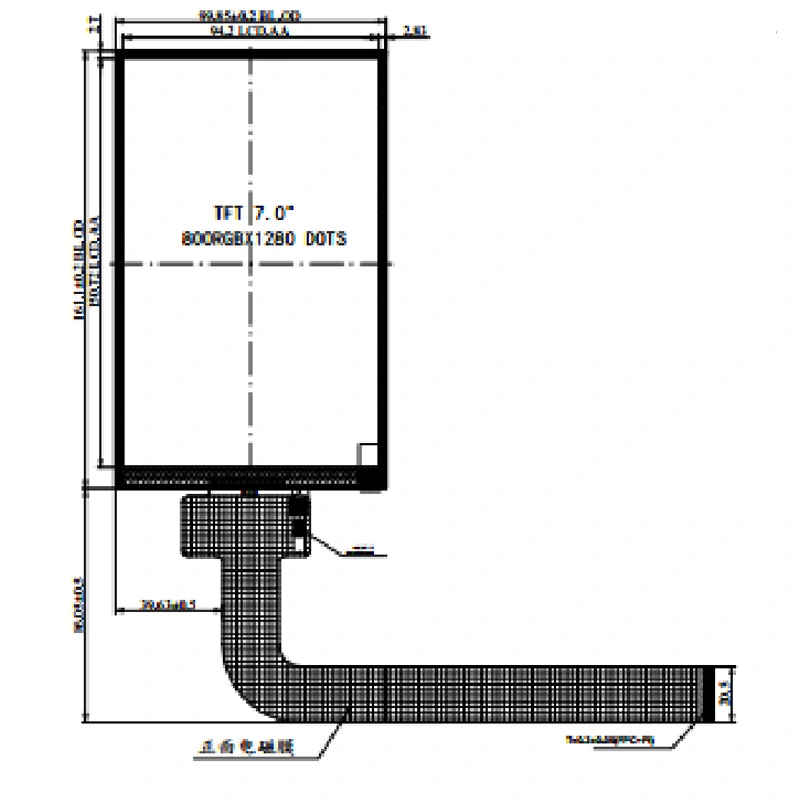

| Outline Dimension | 99.85*161.1*2.53 |
| Active Area(mm) | 94.2*150.72 |
| Interface | MIPI |
| Viewing Angle | All |
| Driver IC | ILI9881 |
| LED life | 30000h |
| Display Mode | Normally Black |
| PIN | 40 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Capacitive touchscreen |
The 7inch 800x1280 IPS MIPI interface display can be used for agricultural equipment, medical device, game console, and smart home, etc.
