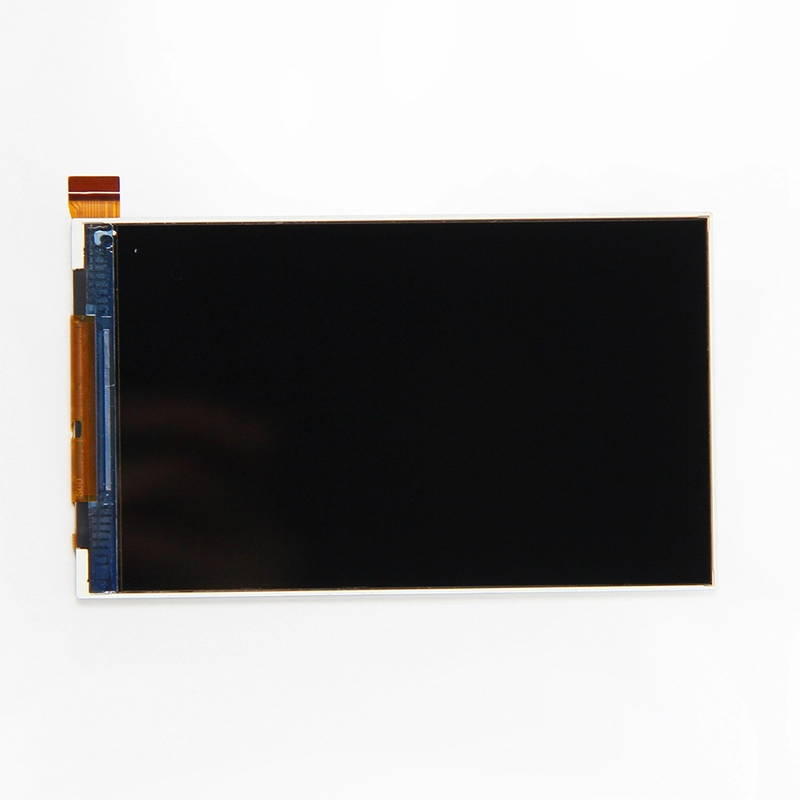

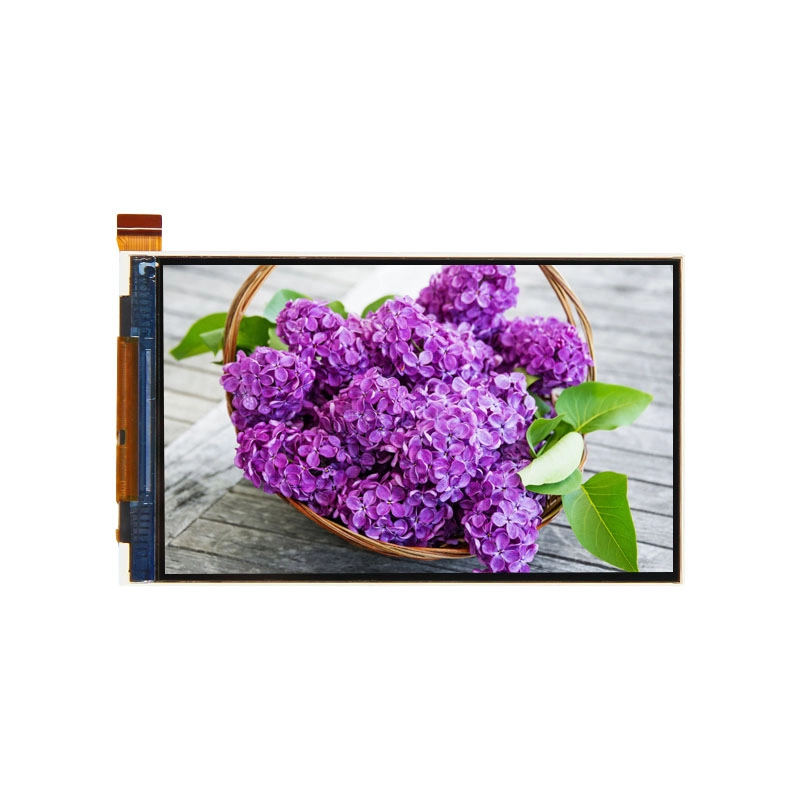

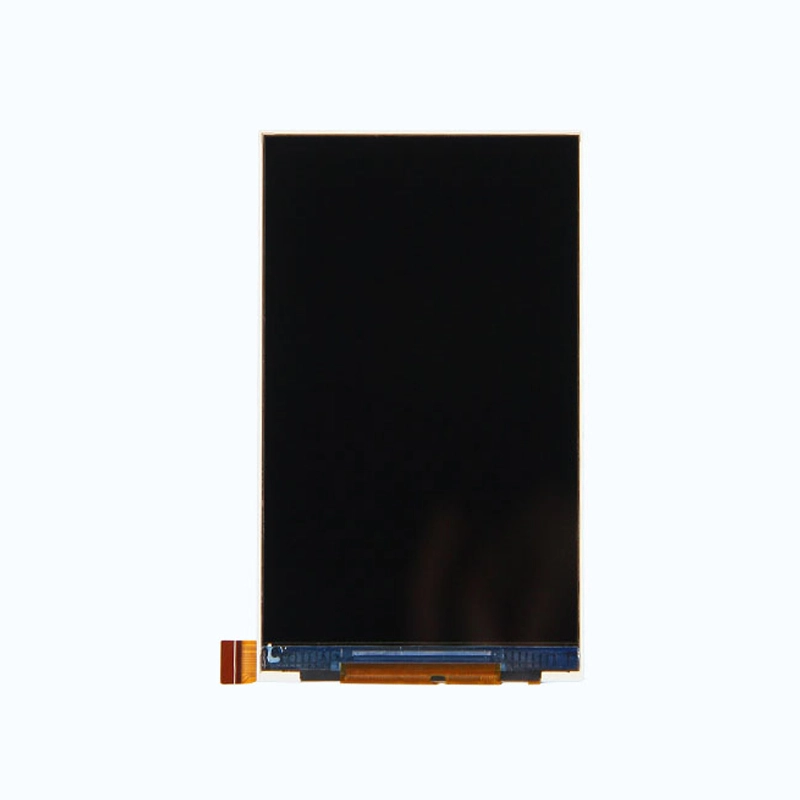

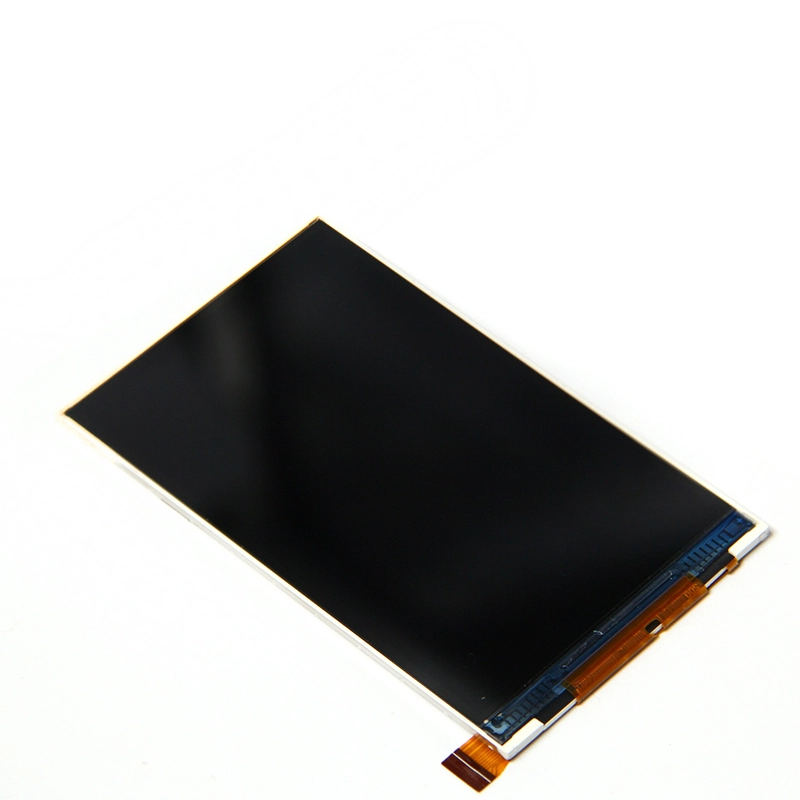

Kingtech 4.0inch 480x800 IPS/free/all/full viewing angle TFT LCD display is our most leading product. It is mainly used for black box, so it’s very popular in Korea Market.
This 4.0inch MIPI interface IPS LCD screen has capacitive touch, we can also custom LCD screens according to customer's requirements.
All/Free/Wide/Full viewing angle
480x800 resolution
IPS TFT display
MIPI-2 Lanes
Support TFT capacitive touchscreen
Get a Quote
Documentation
| Item | TFT LCD module 4.0 inch 480x800 |
| Model No | PV04005TD25E-C |
| Resolution | 480x800 |
| Outline Dimension | 62.5(H)x111.04(W)x3.47(T) |
| Active Area(mm) | 51.84(H)x86.4 (V) |
| Interface | MIPI-2 Lanes |
| Brightness | 400nits |
| Viewing Angle | All |
| Driving IC | ST7701S |
| Display Mode | TFT / Transmissive / Normally Black |
| Operating Temperature | -20~60C |
| Storage Temperature | -30~70C |
| Touch screen | Capacitive touch screen |
The 4.0inch 480x800 IPS display can be used for medical device, handheld equipment, industrial control, smart Home, POS machine and black box.
