Kingtech PV05034H0140F-CT is 5.0inch WVGA TFT colorful LCD module. Its viewing angle is all, IPS panel technology. The resolution is 800x480. Its driver IC is ST7265, supporting RGB interface with standard 40pins. Its backlight is 6*3LEDs, the brightness can reach up to 300nits Typical and 1000nits for outdoor. It is with a compatible capacitive touch and resistive touch.
5.0inch IPS LCD
WVGA resolution
RGB interface 40pins
Can make 1000nits high brightness for outdoor device
Capacitive Touch or resistive touch optional
Get a Quote
Documentation
| Item | 5.0inch IPS 800x480 RGB LCD with capacitive touch |
| Model No. | PV05034H0140F-CT |
| Resolution | 800*480 |

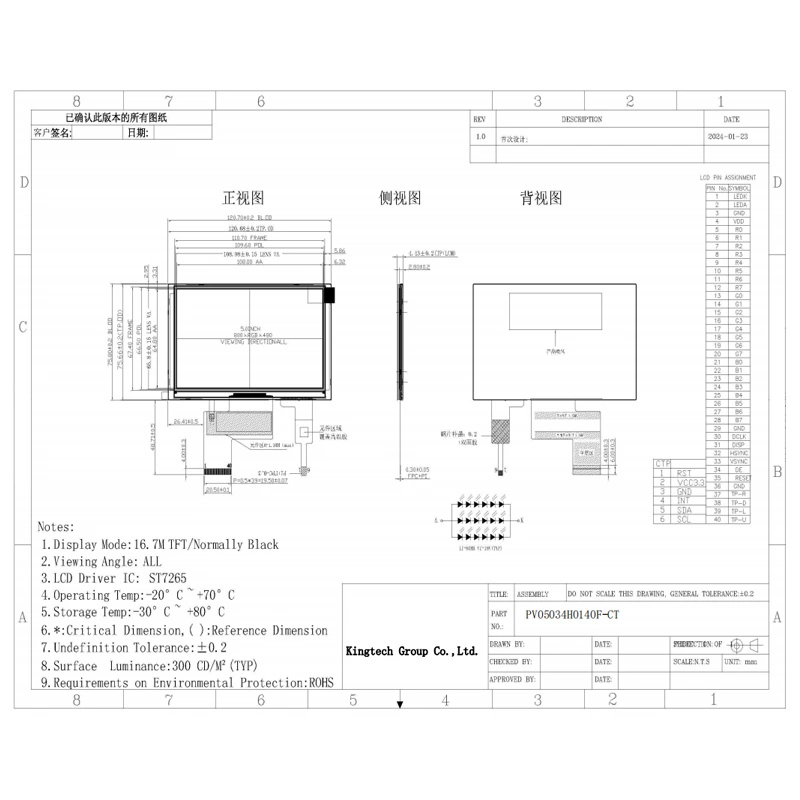

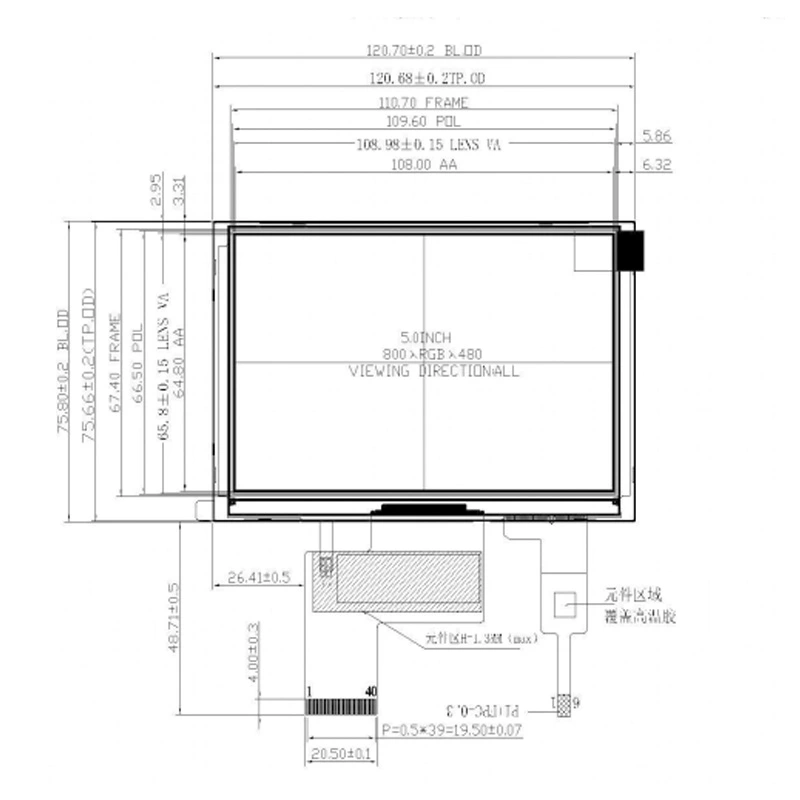

| Outline Dimension (mm) | 120.70*75.80*4.43 |
| Active Area (mm) | 108.00*64.80 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | RGB Interface |
| Backlight | 6*3LEDs |
| Driving IC | ST7265 |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch with GT911, I2C for optional |
| Application | Industrial, Medical, POS, Portable device, PLC control, Smart Home |
It is applicable for Medical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer etc.
