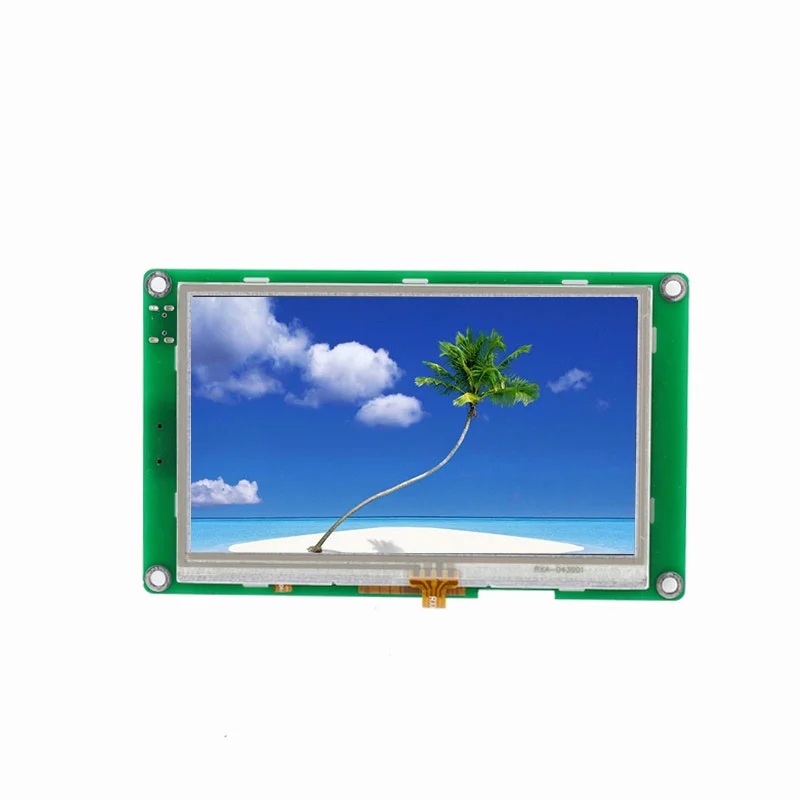

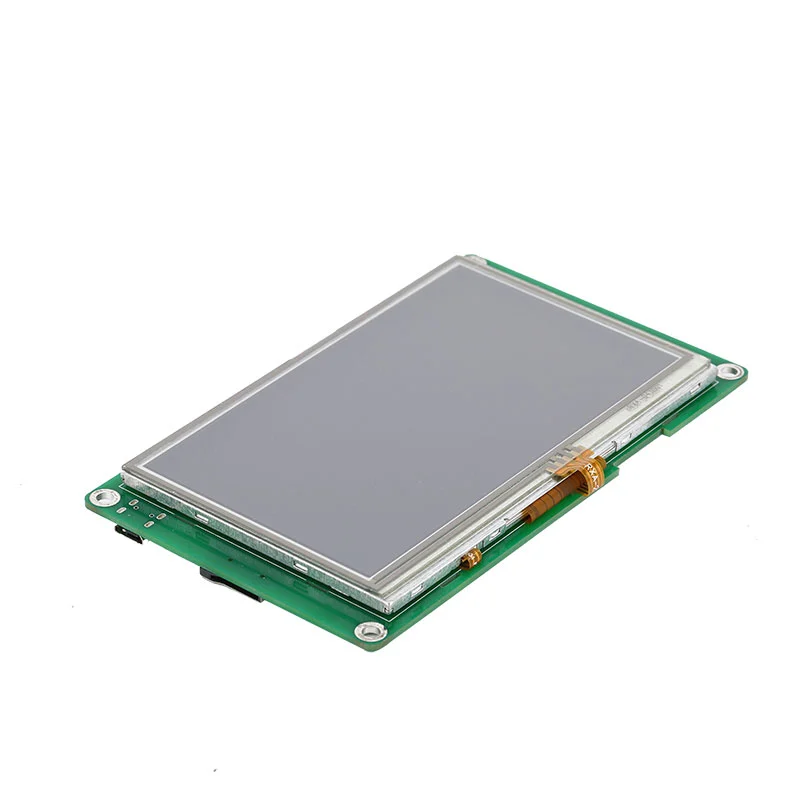

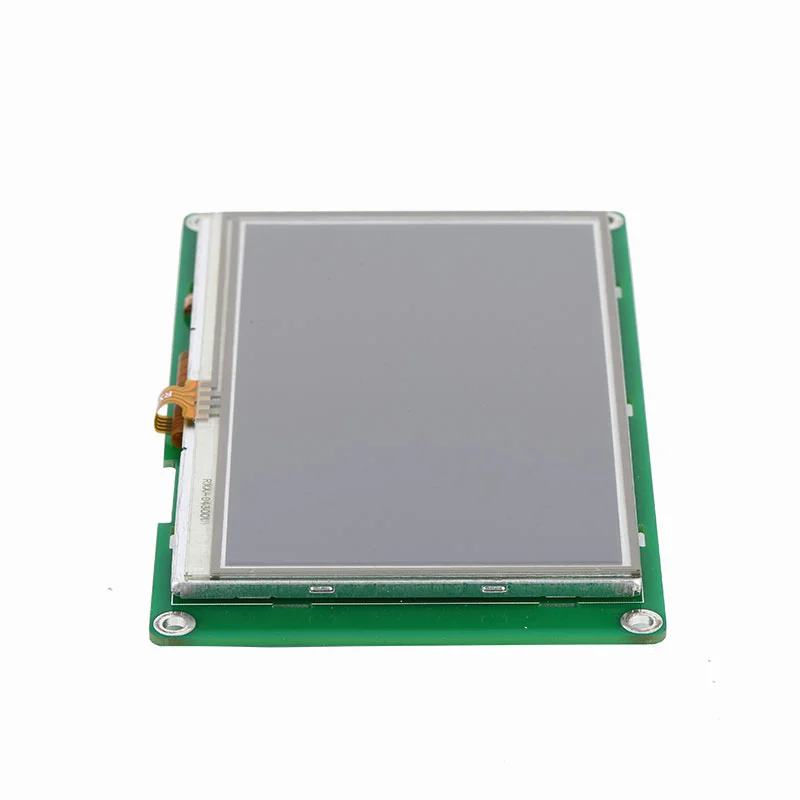

Kingtech 4.3 inch 480*272 Uart Serial Hmi Displayl Module supply very stable. This 4.3 inch WQVGA supports TTL UART (TXD/RXD) interface, LT7688 Driver IC. In addition, the 4.3 inch TFT module brightness is 300nits, and this 4.3 inch screen is Free / full / All /IPS/ wide viewing angle type. For the touch part, can provide capacitive and resistive touch.
Landscape / Horizontal
480*272 / WVGA
Stable supply
TTL UART (TXD/RXD) interface
Free / full / All /IPS/ wide viewing angle
Provide capacitive touch and resistive touch
Industrial equipment/medical device/smart home
Get a Quote
Documentation
| Item | 4.3inch 480*272 Resolution UART Serial HMI display |
| Model No | PVS043480272R001R |
| Resolution | 480*272 |
| PCBA Outside | 120.00(W)*75.00(H)*13.00(T) |
| Outline Dimension | 105.50(W)*67.20(H)*3.00(T) |
| Active Area(mm) | 95.04(W)*53.86(H) |
| Viewing Angle | All view (IPS) |
| Driver IC | LT7688 |
| Interface | TTL UART (TXD/RXD) |
| Input Voltage | 5.0V (VDD) |
| Backlight Luminance | 300nits |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch screen | Resistive touch |
The 4.3 inch 480*272 / WQVGA UART Serial HMI Display Module can be used for agricultural equipment, medical device, and smart home etc.
