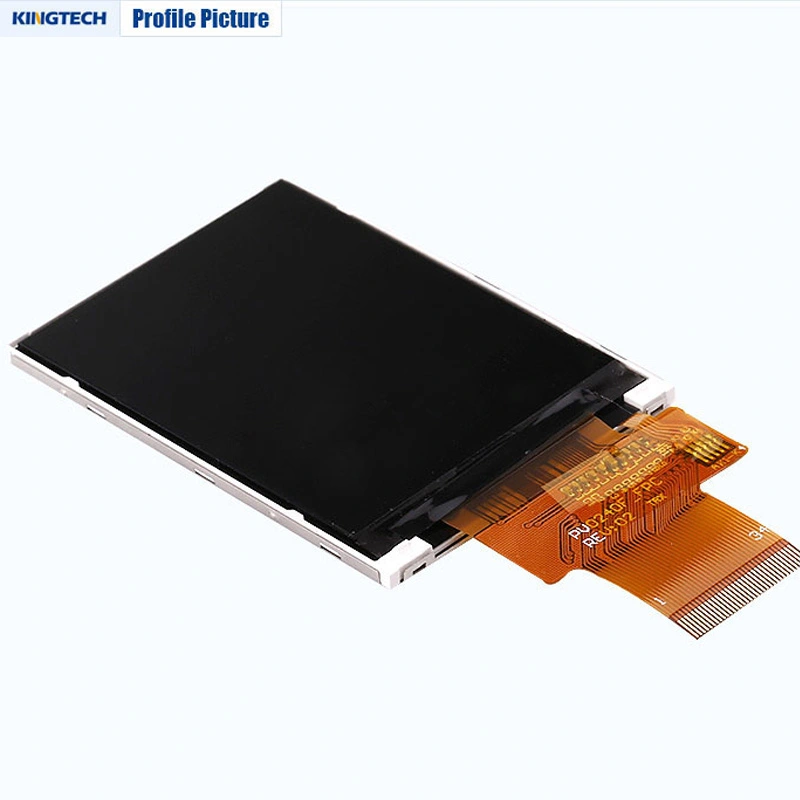

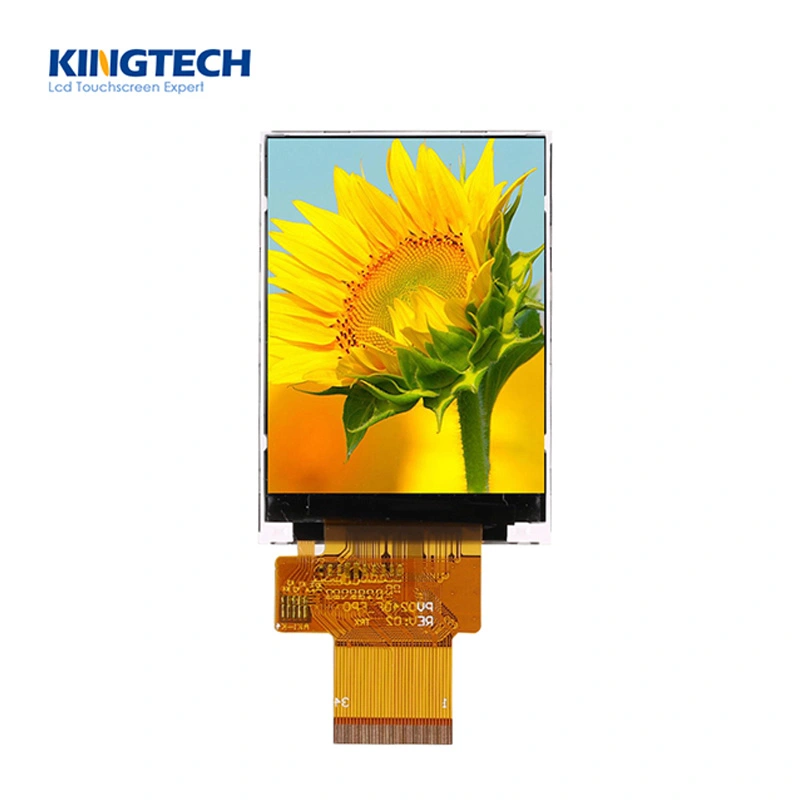

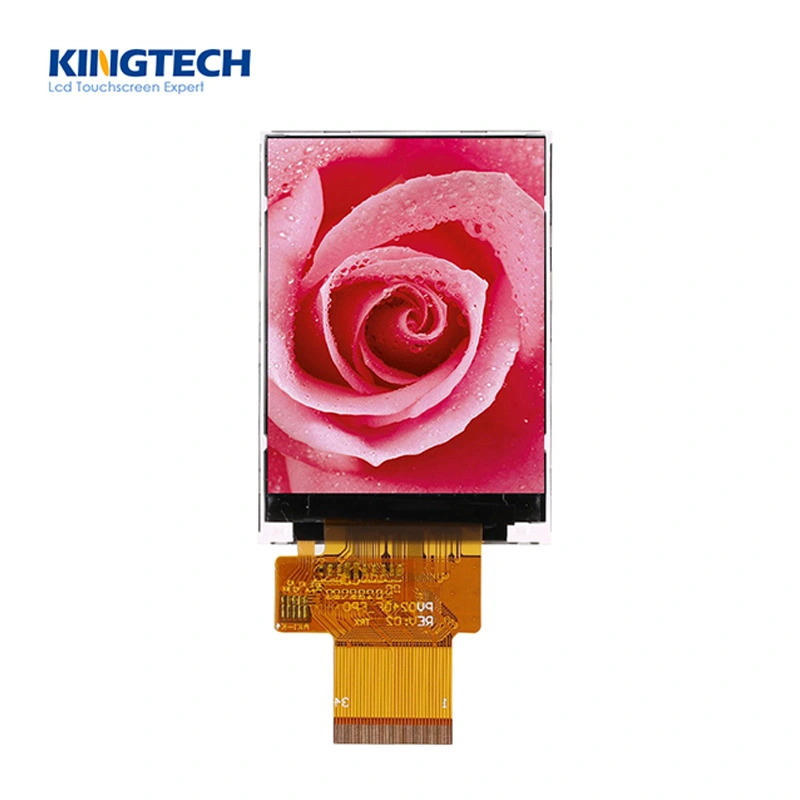

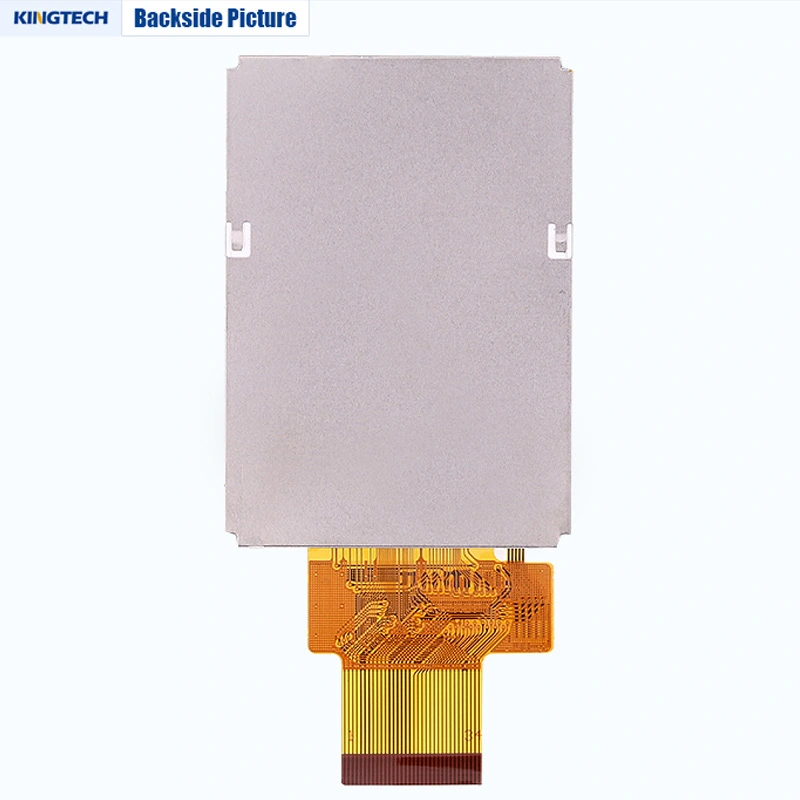

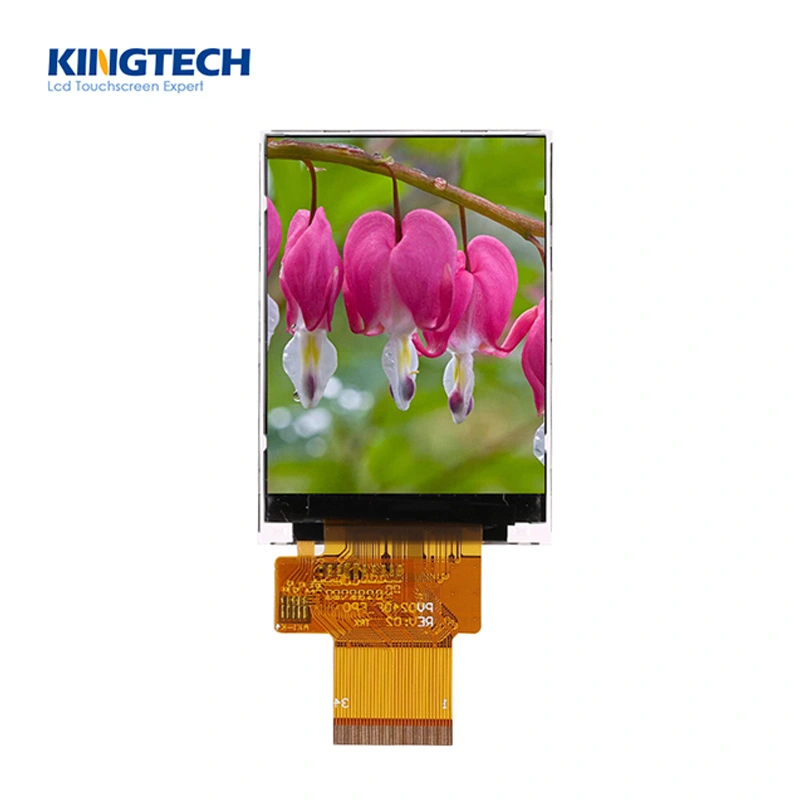

Kingtech 240x320 (QVGA) IPS/free/all/wide viewing angle 2.4 inch TFT LCD module is very popular in the market. This 2.4 inch LCD is a portrait type, and the 2.4 inch screen is mainly used for handheld devices. Plus the 2.4 LCD display can reach 800nits, so LCD 2.4 inch can be sunlight readable.
The 2.4 inch LCD TFT display has the existing capacitive touch. We, as one of LCD screen manufacturers, also produce 3.5-inch touch screens and any custom requirements for touchscreens will be welcomed.
This kind of TFT 2.4 inch display has many features, as following:
All/Free/Wide viewing angle
240x320 resolution/QVGA resolution
LCD IPS screen
Can make 800nits and can be sunlight readable
Support TFT resistive touchscreen and capacitive touch
Get a Quote
Documentation
| Item | 2.4 inch with 240*320 resolution IPS display |
| Model No | PV02413HZ22N |
| Resolution | 240*320 |
| Outline Dimension | 42.72(H)*60.7(W)*2.21(T) |
| Active Area(mm) | 36.72(H)*48.96(W) |
| Brightness | 250nits and 700nits |
| Interface | 16-bits MPU |
| Viewing Angle | ALL |
| Driving IC | ILI9341V |
| Display Mode | Transmissive/Normally black |
| Operating Temperature | -10°~60° |
| Storage Temperature | -20°~70° |
The 2.4 TFT spi 240x320 display can be used for medical devices, handheld equipment, industrial control, smart Home, POS machines and telecom products.
The 2.4inch IPS 800nits also can be used in sunlight-readable such as advertising machines, and automotive devices.
