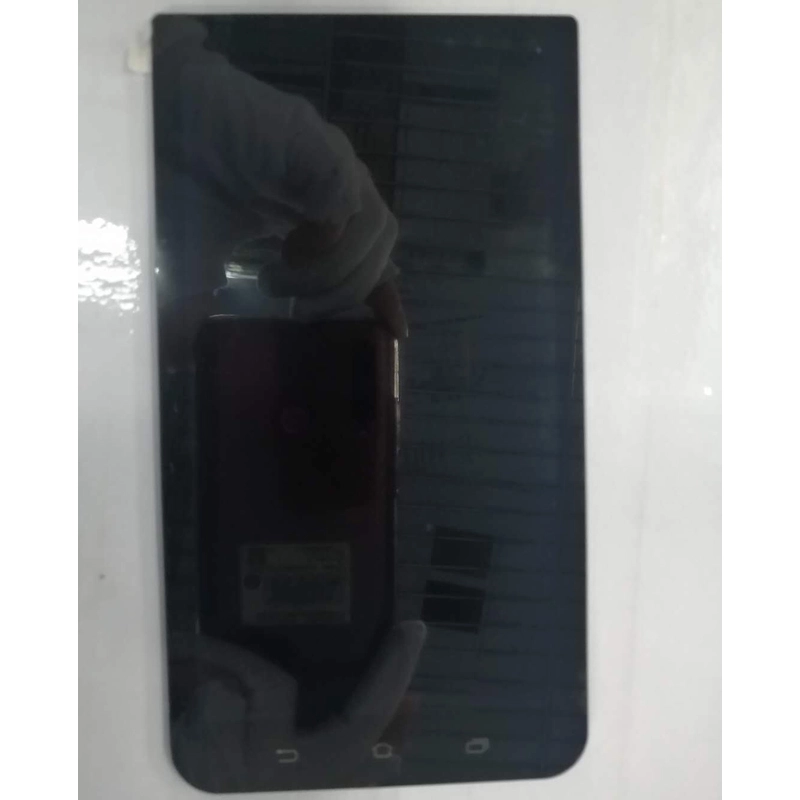

Kingtech 5.5inch IPS/free/all/wide/full viewing angle TFT LCD display has a high resolution for 720x1280.
This 5.5inch MIPI DSI interface IPS LCD screen has capacitive touch, we can also custom LCD screens according to the customer's requirements. The 5.5inch lifetime can reach 30000 hours and the brightness is 390nits.
All/Free/Wide viewing angle
720x1280 resolution
IPS type
MIPI 2 lanes and MIPI 4 lanes
Support TFT capacitive touchscreen
Get a Quote
Documentation
| Item | 5.5inch 720x1280 IPS display |
| Model No | PV05505TD39C-C |
| Resolution | 720x1280 |
| Outline Dimension | 144.4(W)x79(H)x2.84(T) |
| Active Area(mm) | 68.04(H)x120.96(V) |
| Interface | MIPI-4Lanes |
| Driver IC | ST7703 |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | Transmission / Normally Black |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Brightness | 390nits |
| Touch screen | Capacitive touch screen |
The 5.5inch 720x1280 IPS/free/all/full/wide LCD module can be used for 3D printers, medical devices, handheld equipment, industrial control, smart Home, POS machine, and a black box.
