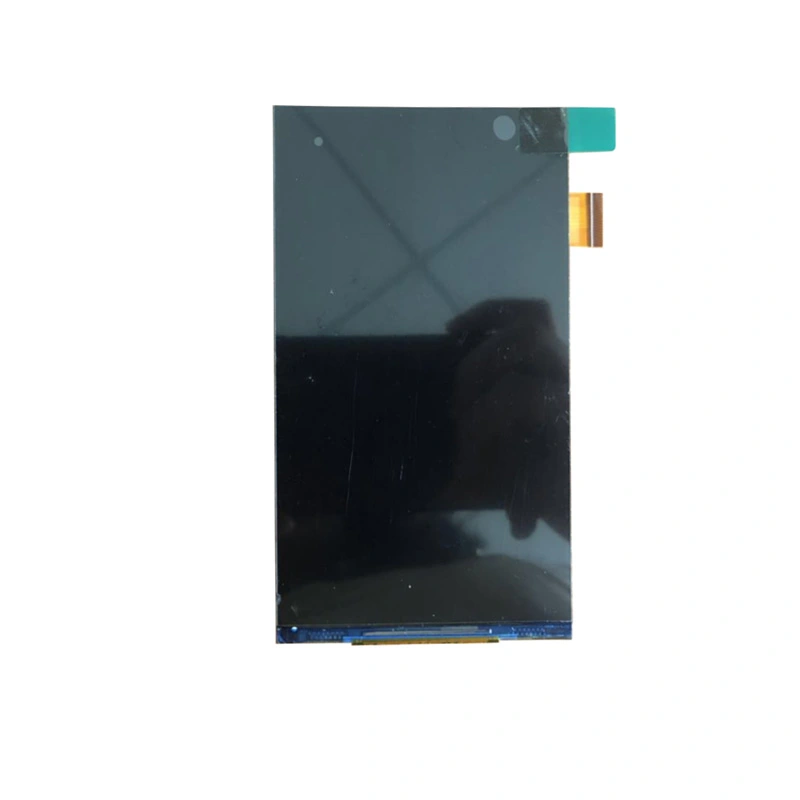

Kingtech 5.0inch 480*854 LCD display supply is very stable. This 5.0 inch supports the MIPI interface. In addition, the 4.95inch module used ST7701S driver IC and its full/all/wide IPS viewing angle. For the touch part, Kingtech can custom the 4.95inch full wide VGA display touch panel according to the customer's requirements.
All/Full/Wide/IPS viewing angle /Normally black
480*854/Full Wide VGA resolution
ST7701S IC
Can custom capacitive touchscreen
MIPI interface
Get a Quote
Documentation
| Item | 5.0 inch 480*854 MIPI interface LCD module |
| Model No | PV05012HZ25P |
| Resolution | 480*854 |
| Outline Dimension | 64.70*118.70*2.01 |
| Active Area(mm) | 61.63*109.65 |
| Interface | MIPI |
| Driver IC | ST7701S |
| LED | 5*2 LEDs |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | Transmissive / Normally black |
| PIN | 25 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Can custom capacitive/resistive touchscreen |
The 5.0 inch 480x854 IPS LCD module can be used for agricultural equipment, medical device, game console, and smart home, etc.
