Kingtech 4.3" inch 480*272 TFT module display supply very stable. This 4.3" inch supports RGB interface. In addition, the 4.3" inch TFT display module brightness is 260nits, and this 4.3" inch screen is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Stable supply
Can custom resistive touch and capacitive touch
Life-time 30000h
Get a Quote
Documentation
| Item | 4.3 inch IPS 480*272TFT display |
| Model No. | PV043034H0140E |
| Resolution | 480*272 |

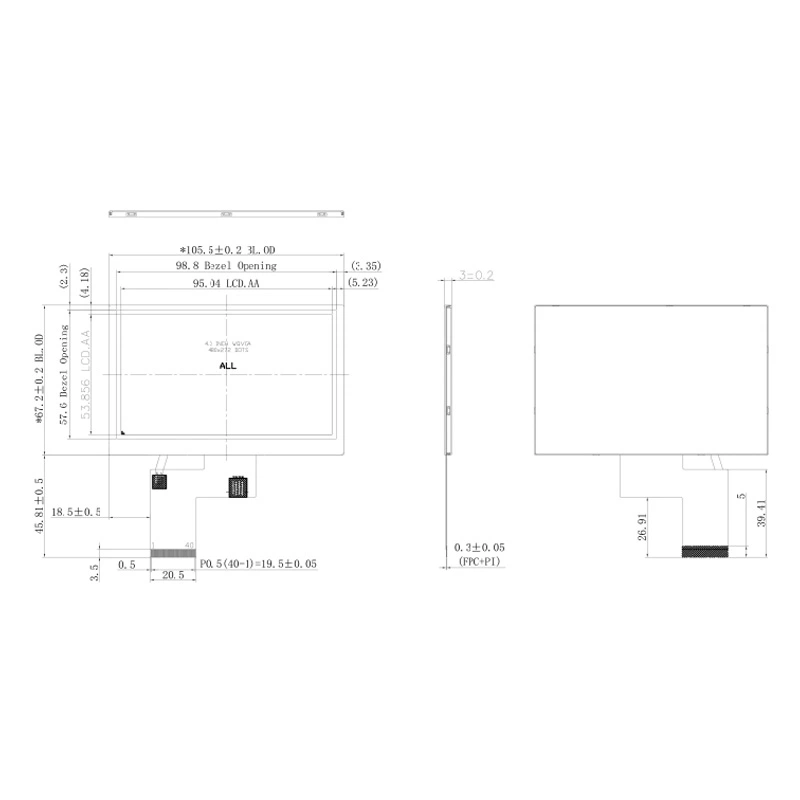

| Outline Dimension (mm) | 105.5*67.2*3.0 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | All |
| Brightness | 260nits |
| Interface | RGB |
| Backlight | 7*1LED |
| Driving IC | NV3047E |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
The 4.3" inch 480*272 TFT display module can be used for Medical, hand-held device, industrial, Smart-home, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
