Kingtech 1.9inch 170x320 resolution IPS ST7789V small display supply very stable. This 1.9 inch screen supports SPI 4 wire interface. In addition, the brightness is 550nits high brightness/ sunlight brightness, and this 1.9 inch LCD module is All/Free/Wide viewing angle/IPS type. For the touch part, Kingtech can be customized according to the customer’s requirements.
All/Free/Wide viewing angle/IPS
170x320
Stable supply
Small / tiny display
SPI interface
550 nits high brightness/ sunlight brightness
Smart watch/wearable
Get a Quote
Documentation
| Item | 1.9 inch 170x320 LCD display module |
| Model No | PV019001H0110B |
| Resolution | 170x320 |

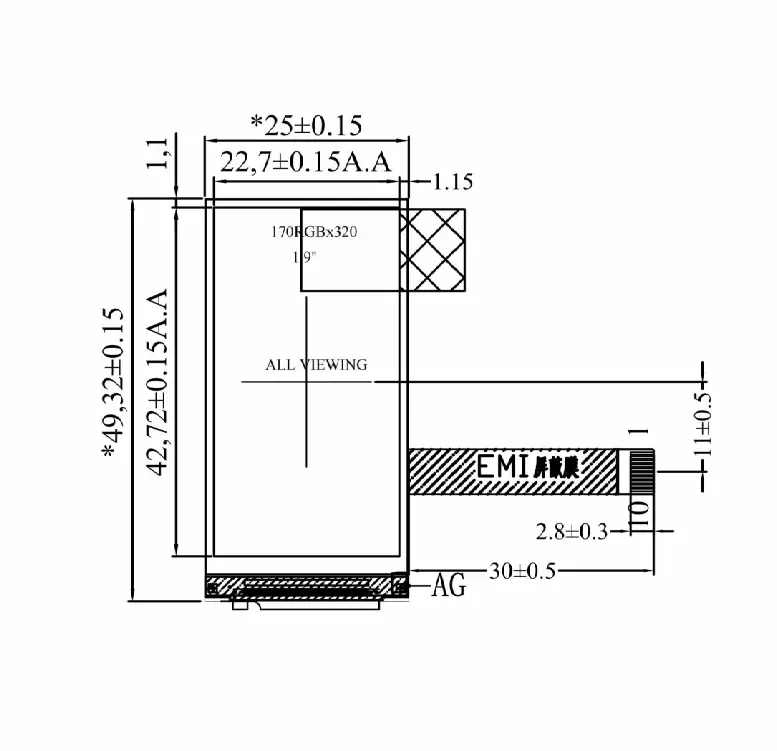

| Outline Dimension | 25.00(H ) x49.32(V) x1.57(T) |
| Active Area(mm) | 22.7(H) x42.72(V) |
| Viewing Angle | All |
| Interface | SPI 4 wire |
| Driving IC | ST7789V |
| PIN | 10 |
| Brightness | 550nits |
| Color | 262K |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch screen | Can custom capacitive touch |
The1.9 inch 170x320 IPS TFT LCD displaycan be used forSmart watch and wearable.
