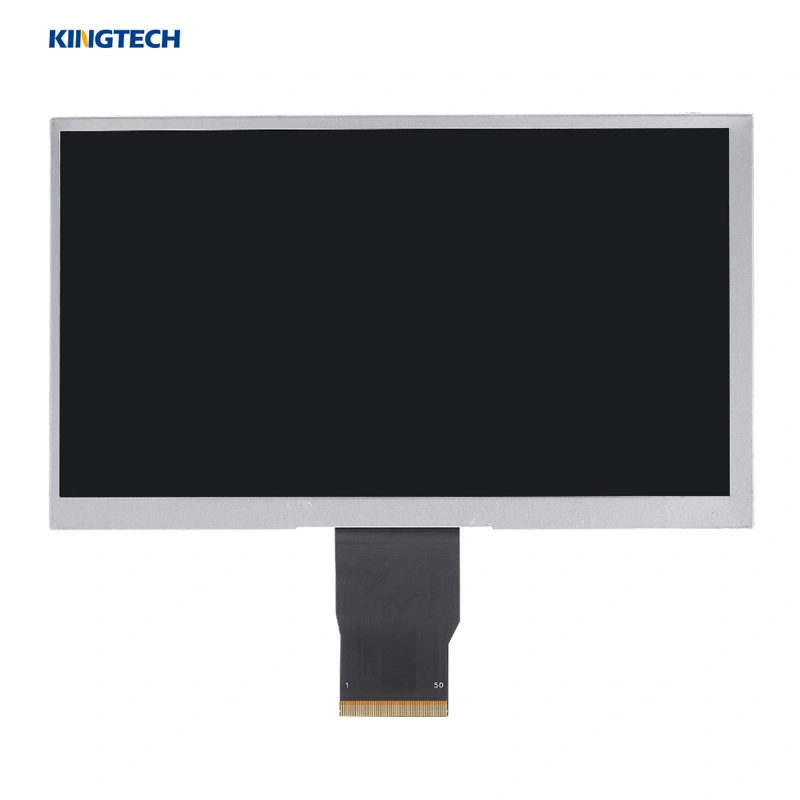

Kingtech PV07074H0550B is 7.0inch colorful transmissive TFT LCD module. Its LCD panel is IPS, with 1024x600pixel. The display is seen whole from any viewing angel. Its driver IC is JD9165A-A1, supporting RGB interface with standard 50pins. Its backlight is 4*8LED, brightness can reach 550nits Typical. It can be used for many applications, indoor, portable devices, industrial, medical, high end consumer electronics etc.
7.0inch IPS LCD
550nits, common brightness, sunlight readable, outdoor, high brightness
RGB interface with 50pins
Can be used for many applications
Get a Quote
Documentation
| Item | 7inch IPS 1024*600dots LCD module |
| Model No. | PV07074H0550B |
| Resolution | 1024*600 |

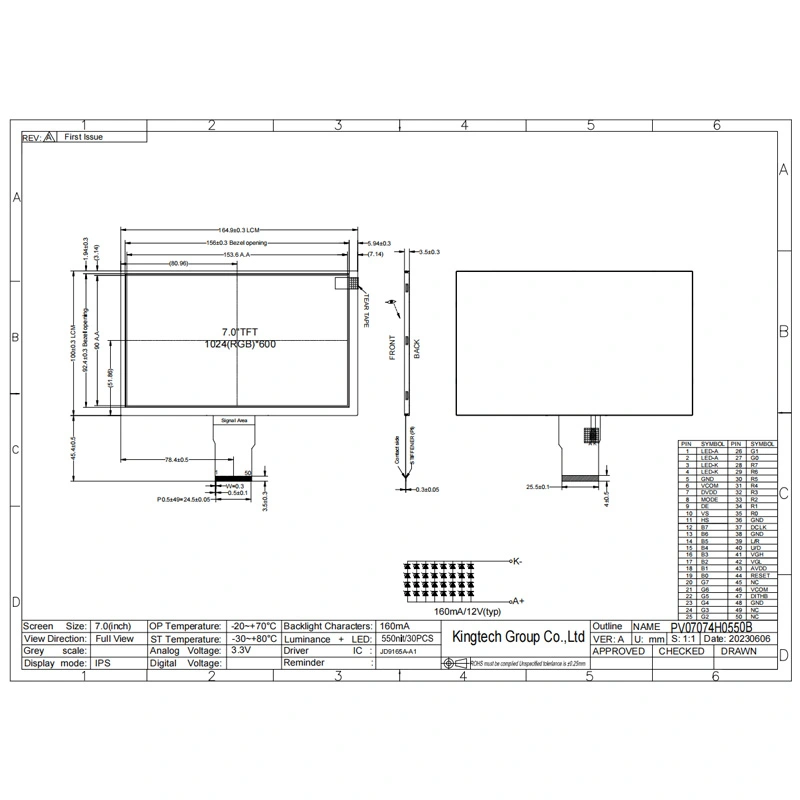

| Outline Dimension (mm) | 164.9*100*3.5 |
| Active Area (mm) | 153.6*90 |
| Viewing Angle | All |
| Brightness | 550nits |
| Interface | RGB |
| Backlight | 4*8LEDs |
| Driving IC | JD9165A-A1 |
| PIN No. | 50 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Optional |
| Application | Industrial, Medical, Handheld device, Smart Home, Instruments etc |
It is applicable for Medical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
