Kingtech PV05712T0231N-CO is 5.7nch Portrait TFT colorful LCD module. Its viewing angle is all, IPS panel technology. The resolution is 720x1440. Its driver IC is ST7703, supporting MIPI interface. Its backlight is 7*2LED, brightness can reach 400nits Typical. It is with high brightness, can display clear and high performance. It is designed for indoor application, Smart Home, POS, ATM, Portable device.
Thin
Portrait, Bay type
High resolution
Capacitive Touch with OCA bondin
Get a Quote
Documentation
| Item | 5.7inch IPS 720x1440 LCD module with Capacitive touch |
| Model No. | PV05712T0231N-CO |
| Resolution | 720*1440 |

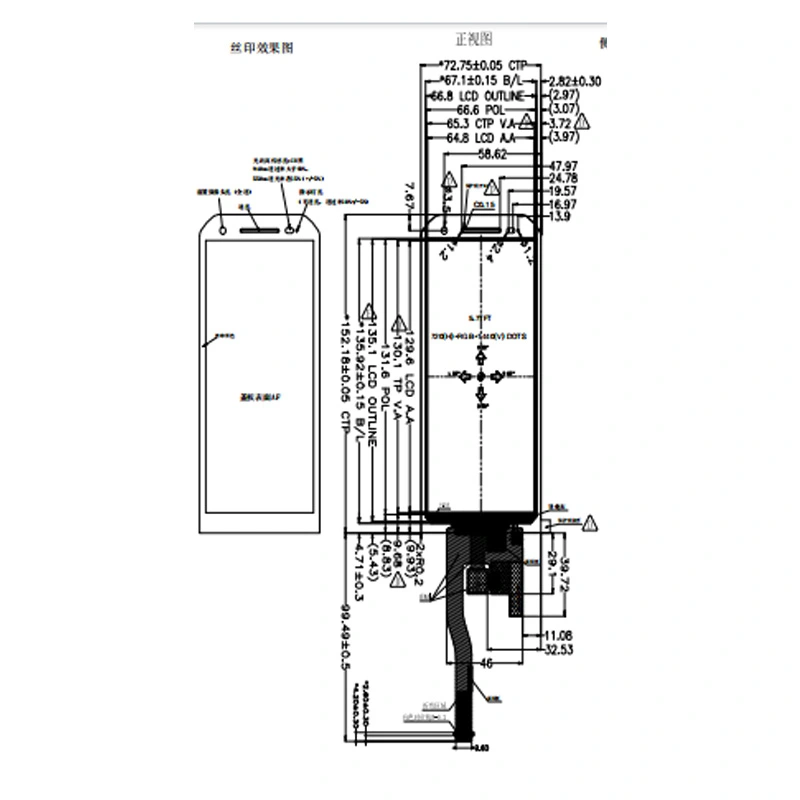

| Outline Dimension (mm) | 72.75*152.18*2.72 |
| Active Area (mm) | 64.8*129.6 |
| Viewing Angle | All |
| Brightness | 400nits |
| Interface | MIPI-4 Lanes |
| Backlight | 7*2 LEDs |
| Driving IC | ST7703 |
| PIN No. | 31 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Capacitive touch |
| Application | Industrial,indoor application, smart phone, POS, ATM |
It is applicable for Medical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer.
