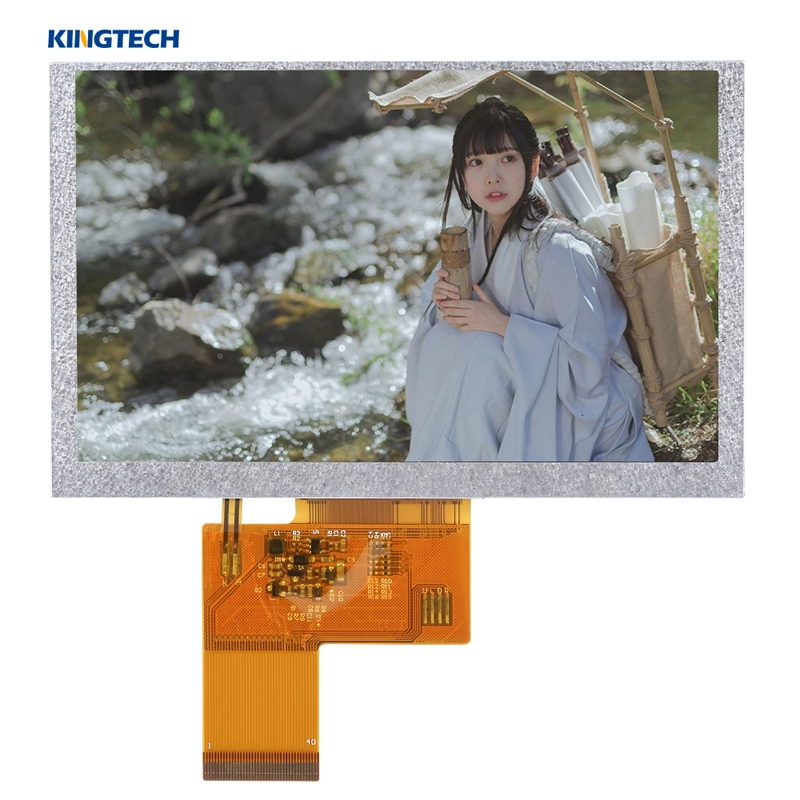

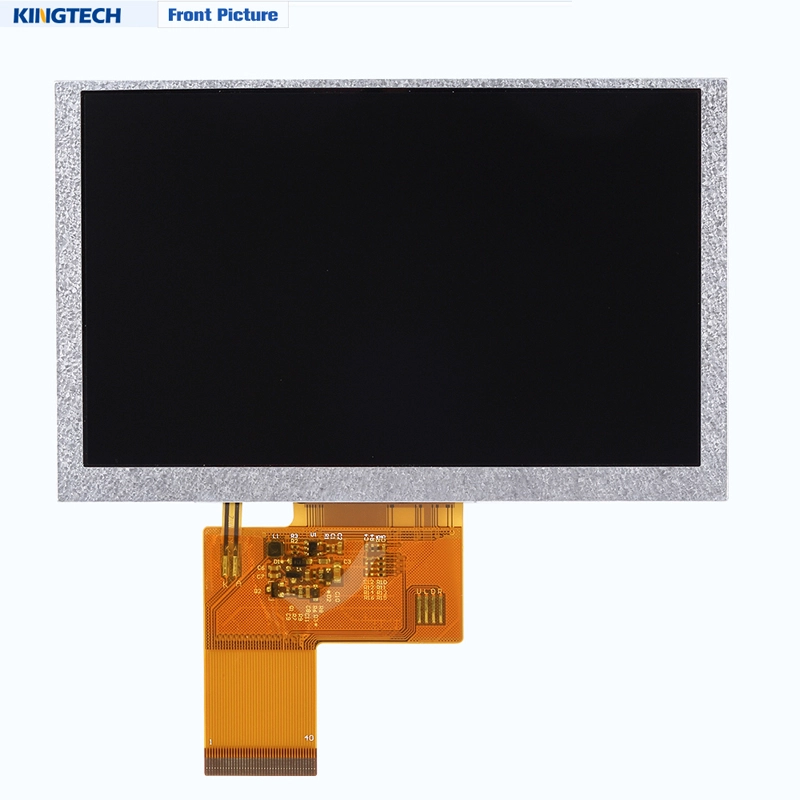

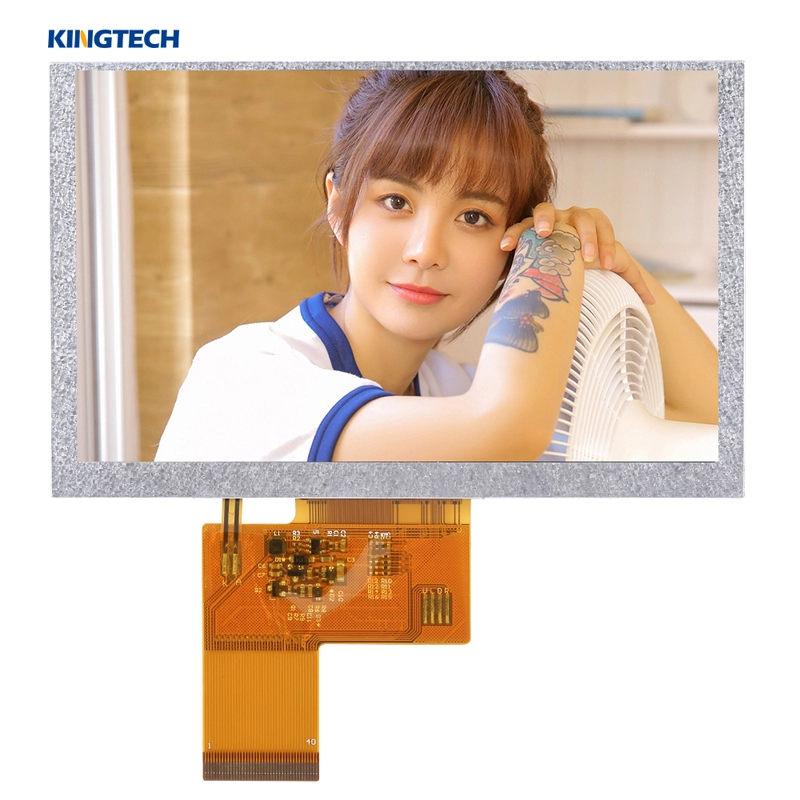

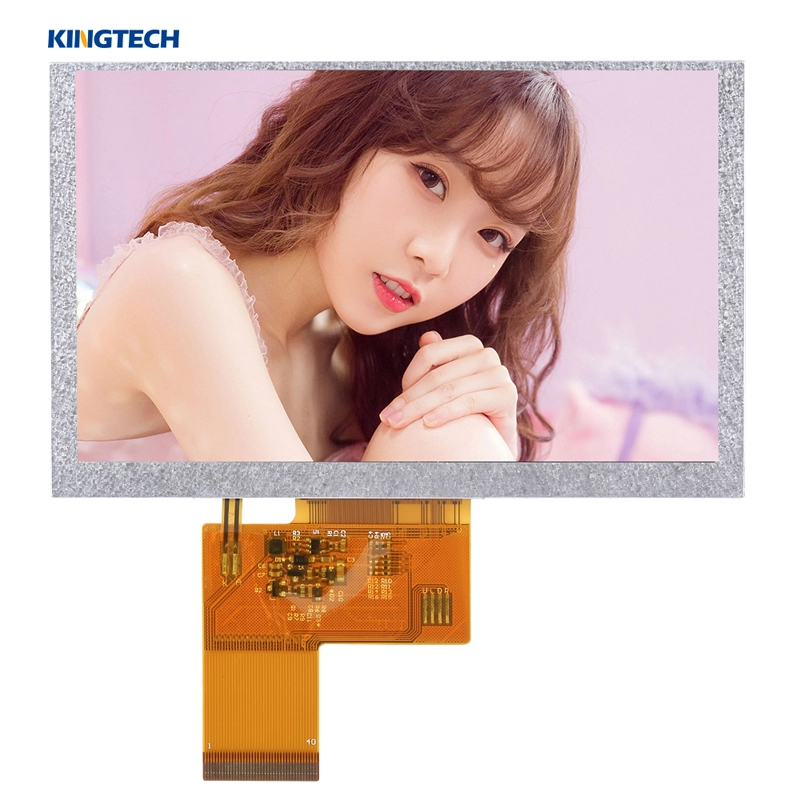

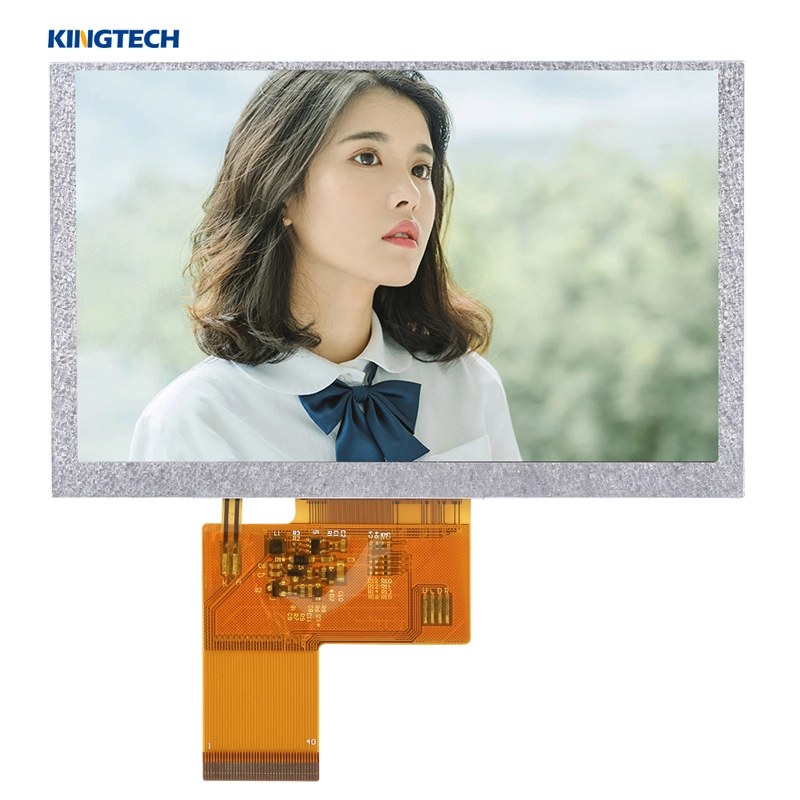

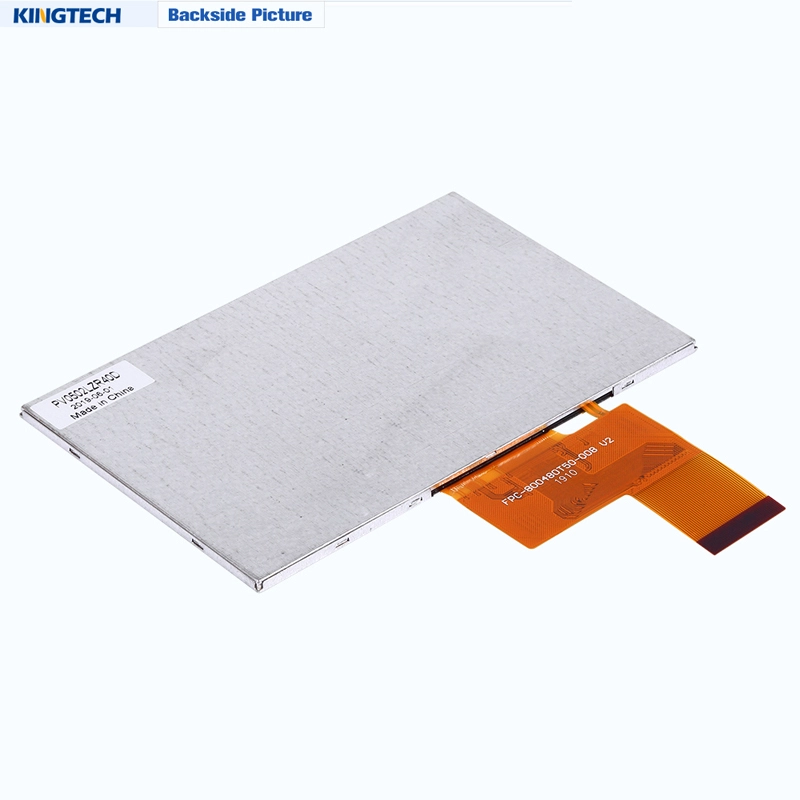

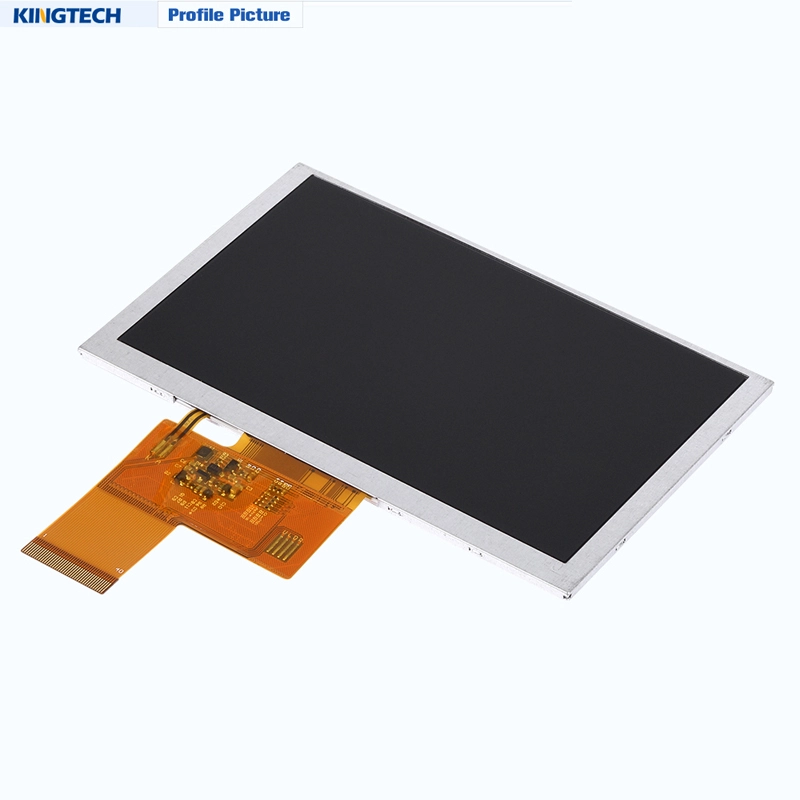

Kingtech 5inch 480x272 /WQVGA TFT LCD display is one of Kingtech's main products. The 5inch LCD screen can be supplied for a long time.
This 5inch display has the resistive touch and capacitive touch and the touch can be customized according to customer requirements. This 5inch module can reach 1000nits and can be used for outdoor devices. The 5inch module has HDMI Board.
480x272 / WQVGA resolution
Landscape / Horizontal
High brightness/sunlight readable screen/1000nits
Support resistive touch and TFT capacitive touchscreen
HDMI Board
Get a Quote
Documentation
| Item | 5-inch 480x272 TFT LCD display |
| Model No | PV05001YX40B-R |
| Resolution | 480x272 |
| Outline Dimension | 120.7(W)x75.8(H)x4.2(T) |
| Active Area(mm) | 110.88(W)x62.832(H) |
| Interface | 24-bit Parallel RGB |
| Brightness | 250nits |
| Board | Convert board |
| Viewing Angle | 12 O'clock |
| Driving IC | ILI6480 |
| Display Mode | Transmission / Normally White |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Resistive touch screen |
The 5inch 480x272 / WQVGA TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, E-bike, and Navigator device.
The 5inch TN 1000nits also can be used in sunlight-readable such as advertising machines, automotive devices.
