Kingtech 2.5 inch 480*480 TFT round module display supply very stable. This 2.5-inch circular supports the MIPI-DSI interface. In addition, the 2.5 inch TFT display module brightness is 400 nits, and this 2.5 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, we also can customize capacitive touch according to the customer requirements.
TFT display
480*480
Stable supply
Round / Circular display
Free / IPS/ full / wide viewing angle
Small display
MIPI-DSI interface
Smartwatch/wearable/medical
Can custom capacitive touch panel
Get a Quote
| Item | 2.4 inch round TFT display module |
| Model No | PV024701SY35B |
| Resolution | 480*480 |

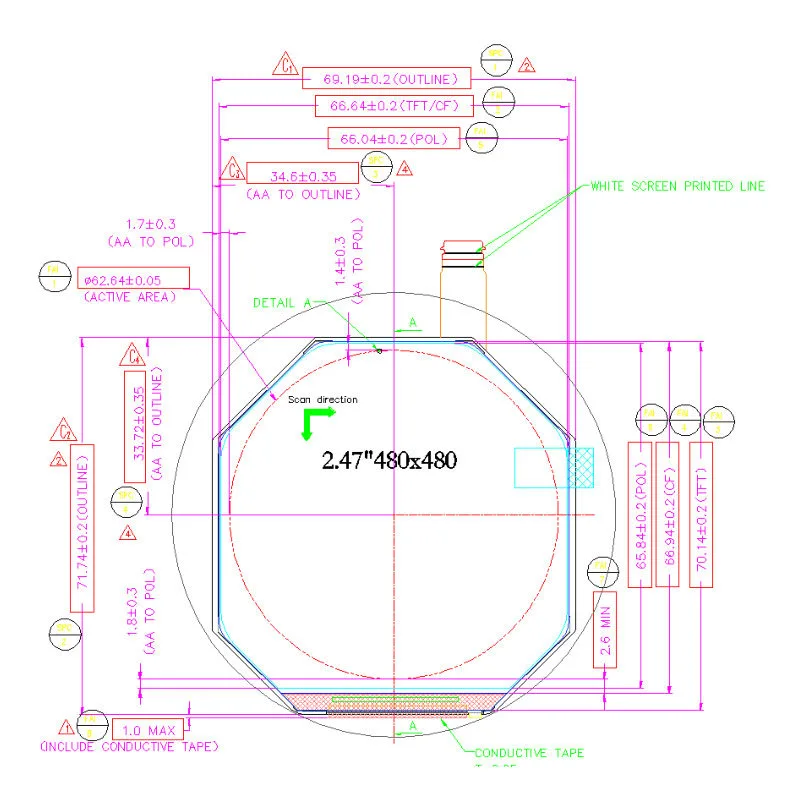

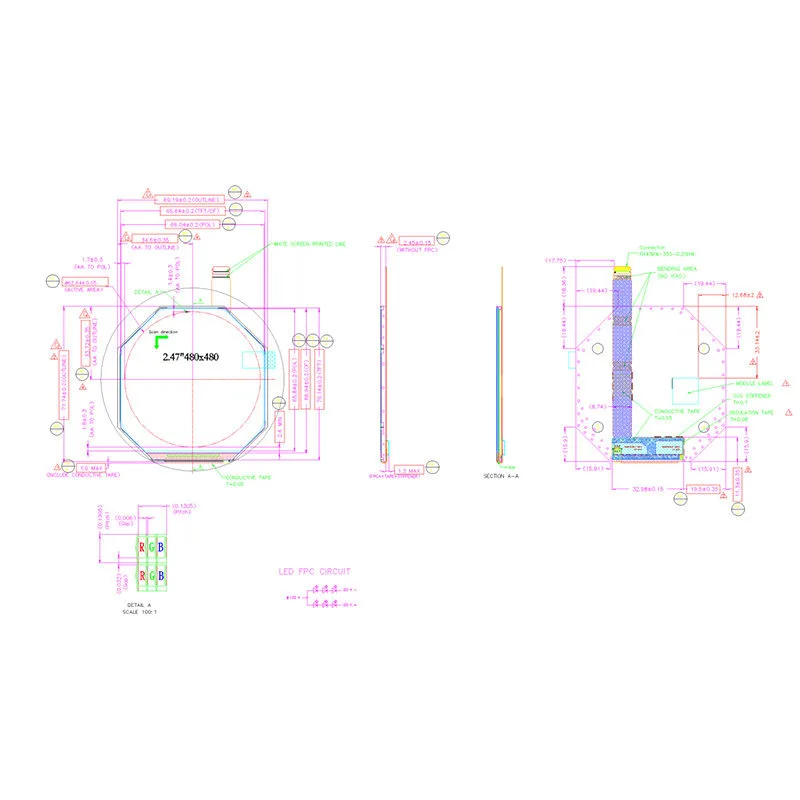

| Outline Dimension | 69.19*71.74*2.45 |
| Active Area(mm) | 62.64*62.64 |
| Brightness | 400nits |
| Viewing Angle | All |
| Interface | MIPI-DSI interface |
| Driving IC | HX8379-C |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | --30℃~70℃ |
| Touch screen | Can custom capacitive touch screen |
The 2.5 inches 480*480 TFT round display module can be used for smart watch, wearable, medical， the thermostat and hand-held devices.
