Kingtech 8.8 inch 768*768 TFT display supply very stable. This 8.8 inch supports LVDS interface. In addition, the 8.8 inch 768*768 TFT display module brightness is 1000nits, and this 8.8 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
8.8 inchTFT display
768*768
Stable supply
All/Wide/Full viewing angle
LVDS interface
1000nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| Item | 8.8inch IPS 768x768 TFT LCD display |
| Model No. | PV08804P0160E |
| Resolution | 768*768 |

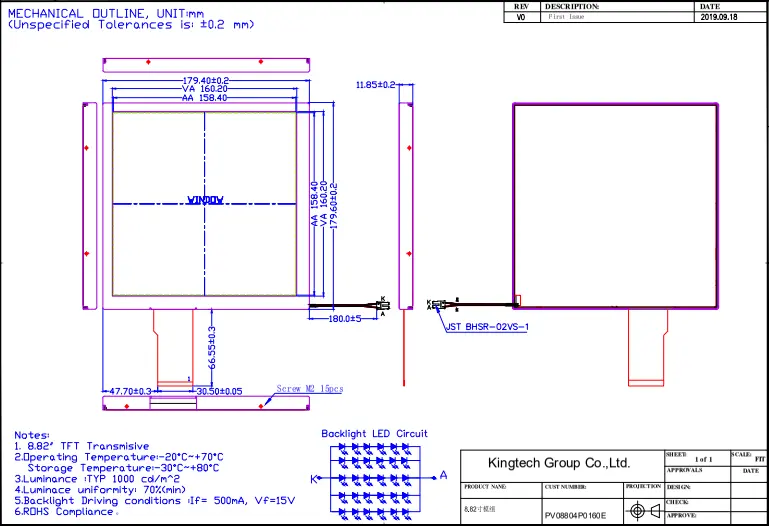

| Outline Dimension (mm) | 179.4*179.6*11.85 |
| Active Area (mm) | 158.4*158.4 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | 6*5LED |
| Driving IC | / |
| PIN No. | 60 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial, |
The 8.8 inch 768*768 TFT display module can be used for E-Bike, Medical, hand-held device, industrial or others.
