Kingtech 2.4 inch 240*320 resolution TFT LCD display. It with stable production. This 2.4 inch QVGA TFT LCD display supports MCU&SPI interface, ST7789V driver IC. It with 6 O’clock viewing angle. Mainly application for Smart home, medical, industrial and E-bike. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
TFT LCD DISPLAY
240*320/QVGA
Stable supply
TN viewing angle
MCU&SPI interface
Sunlight readable/Outdoor
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, E-bike
Get a Quote
Documentation
| Item | 2.4 inch 240*320 MCU/SPI interface lcd display |
| Model No. | PV024QV-HFA3901 |
| Resolution | 240*320/QVGA |

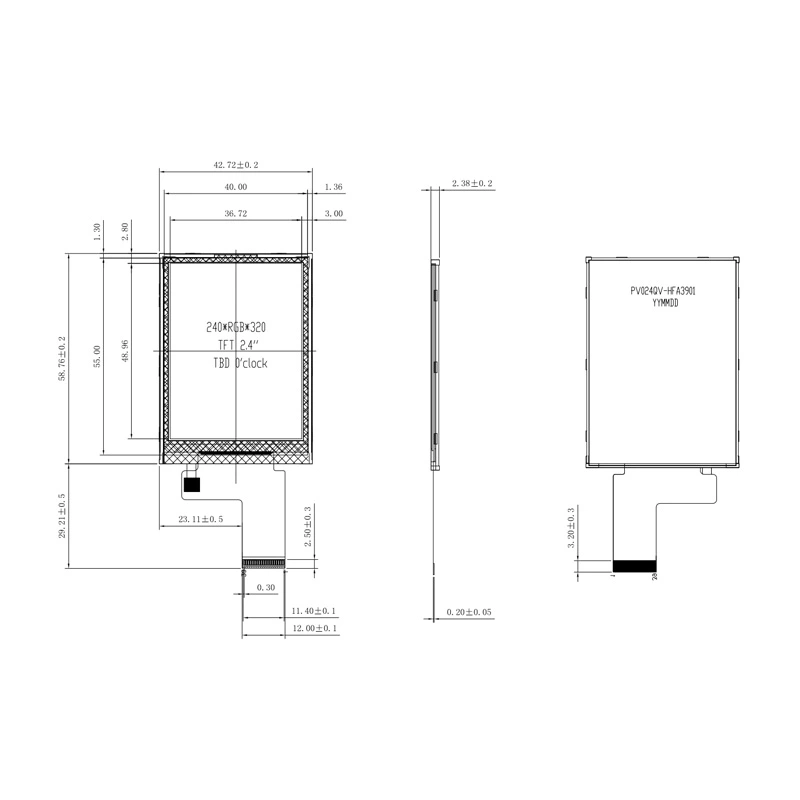

| Outline Dimension (mm) | 42.72*58.76*2.38 |
| Active Area (mm) | 36.72*48.96 |
| Viewing Angle | 6 O'clock |
| Brightness | 150nits |
| Interface | MCU&SPI |
| Backlight | 1*4LED |
| Driving IC | ST7789 |
| PIN No. | 39 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 2.4 inch 240*320/QVGA TFT can be used for Smart home, Medical, hand-held device, industrial, E-bike or others.
