Kingtech 8 inch 800*1280 vertical TFT LCD display supply is very stable. This 8 inch supports the MIPI interface. In addition, the 8 inch TFT module Driving IC is FT8201, and the brightness is 1000nits. It's high brightness, can use sunlight readable and outdoor devices. This 8-inch screen is IPS/Free/ Full viewing angle type. For the touch part, Kingtech can custom the capacitive touch or resistive touch according to the customer's requirements.
Vertical screen / Portrait
1000 nit/ high brightness/ sunlight readable / Outdoor
800*1280
IPS/Free/ Full viewing angle
Stable supply
MIPI interface
Can custom capacitive touch and resistive touch
Get a Quote
Documentation
| Item | 8 inch 800*1280 TFT display module |
| Model No | PV08009H0130J |
| Resolution | 800*1280 |

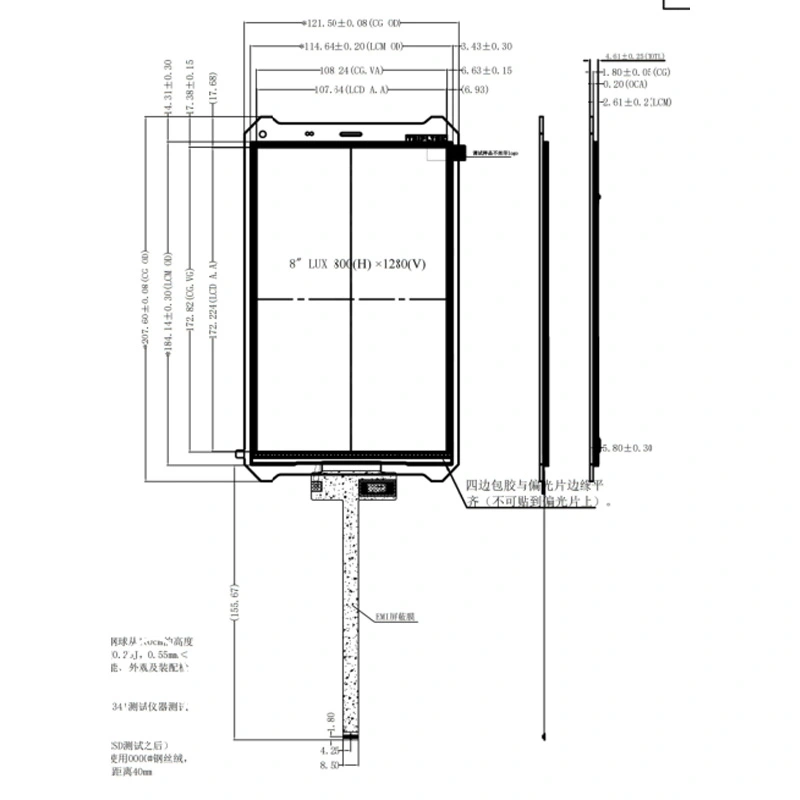

| Outline Dimension | 121.50(H ) x207.60(V) x4.61(T) |
| Active Area(mm) | 107.64*172.224 |
| Viewing Angle | All |
| Driving IC | FT8201 |
| Brightness | 1000nits |
| Interface | MIPI |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Display Type | Normally Black/ Transmissive |
| Touch panel | Can custom resistive and capacitive touch |
The 8 inch 800*1280 Vertical TFT LCD display can be used for agricultural equipment, medical device, game console, Industrial and smart homes, etc.
