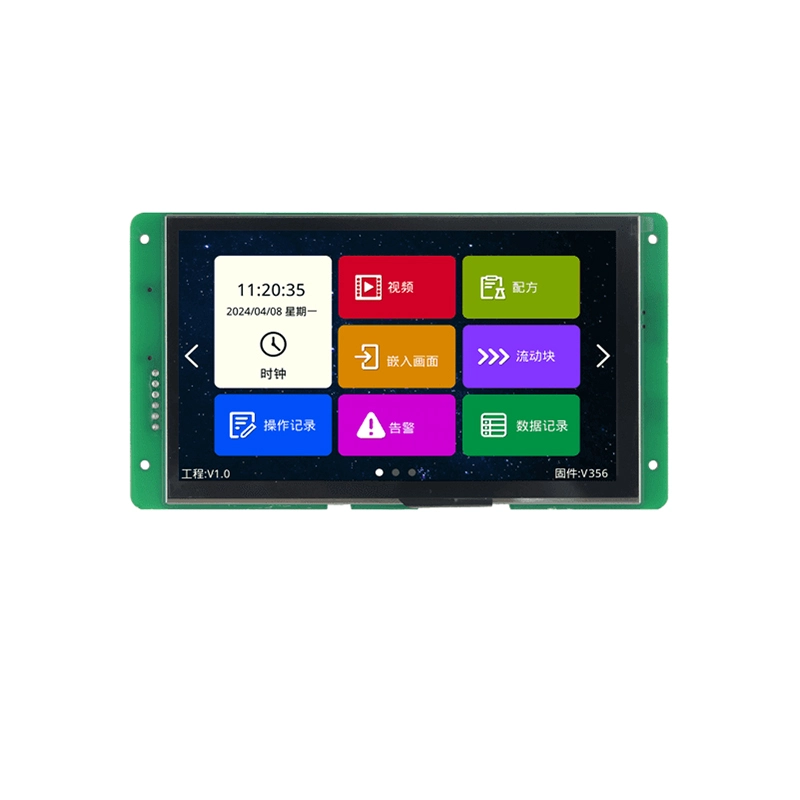

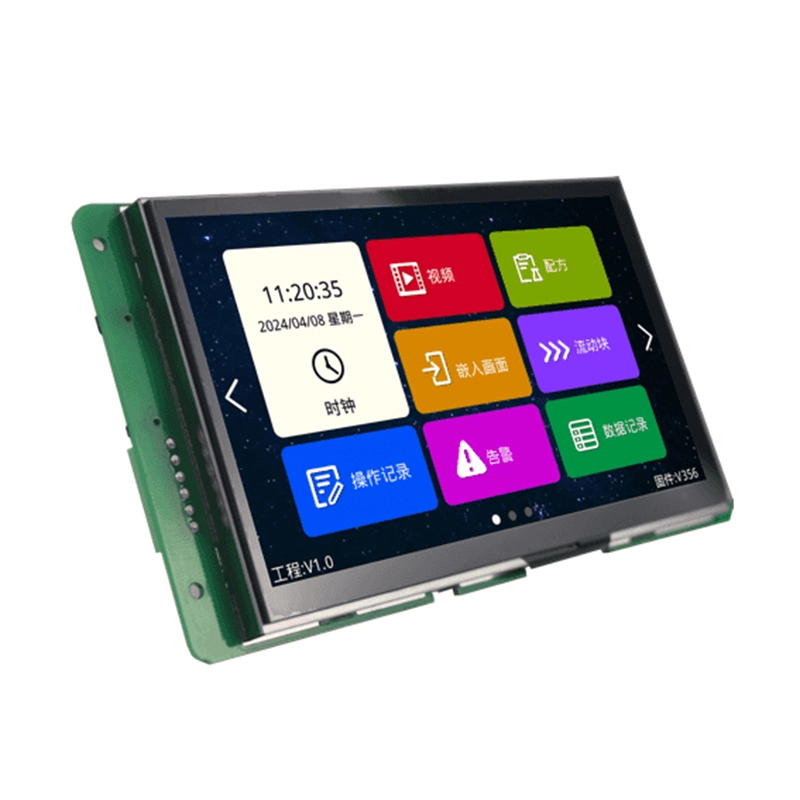

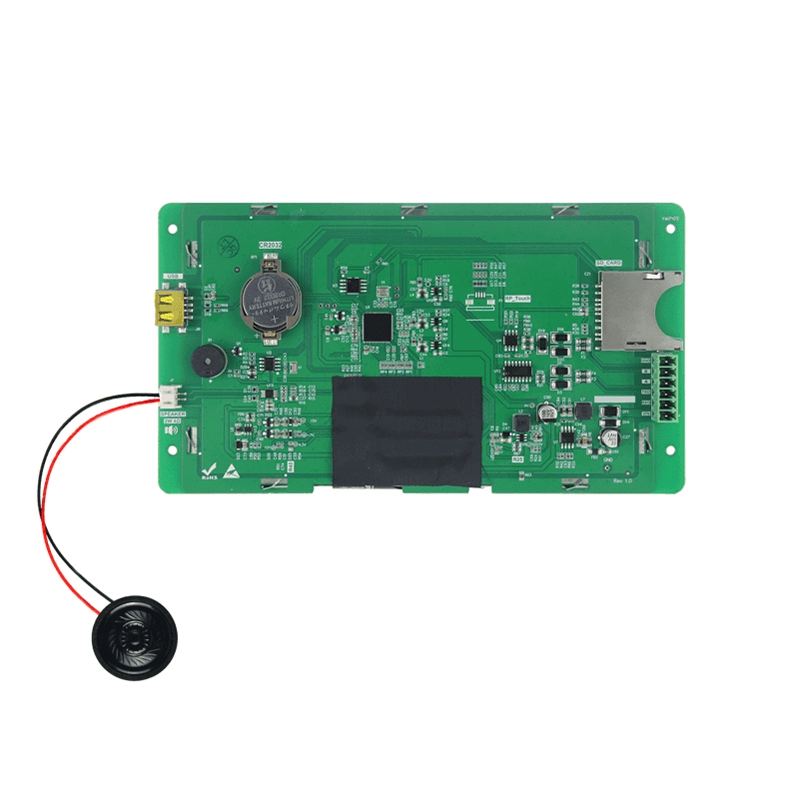

PV070800480M070- V1.0 is a HMI LCD display. HMI means a Human-Machine Interface which is a user interface that connects a person to a machine, system, or device, allows users to interact with a device. It is most commonly used in industrial. PV070800480M070- V1.0 includes 7inch WVGA pixel LCD display module with capacitive touch(resistive touch or without touch) with serial board with 400M SOC Processor intergrated with functions such as SDR graphic card, JPED decode, with audio, picture, video showing. We will share you our development software so you can use it to design your own user interfaces and functions to easily finish the software parts for your device.
32bits dual-core processor frame specified for picture display optimized
2D speed engine
JPEG hardware decode to show different special effects, more fluently and gorgeous
It can work reliably, 24*365 work without stop, no redundant files
7inch 800x480 dots LCD display with touch optional (Capacitive touch, Resistive touch, without)
Get a Quote
| Size | 7.0 inch |
| Resolution | 800*480 |
| Operating Temperature | -20～+70℃ |
| Storage Temperature | -30～+80℃ |
| Display Type | TFT LCD screen |
| Backlight | LED |
| Brightness (cd/m²) | 500 |
| Backlight Life-time(h) | >20,000 |
| Contrast | 800:1 |
| Viewing Angle (L/R/T/B) | 70/70/60/50 |
| Touch Type | Capacitive touch screen |
| Capacitive Touch Screen Mode | Single-point, swipe touch |
| Capacitive Touch Screen Light Transmittance | More than 90%. |
| The Number of Capacitive Screen Touch | The number of capacitive screen touches is theoretically unlimited, and the touch life is related to the working environment (dust, humidity). |
| Capacitor Cover Customized | The "glass cover + capacitive touch" integrated lamination service can be customized according to the user's drawing size. |
The 7inch 800x480 TFT LCD with HMI board display can be used for Energy, Food and beverage, Manufacturing, Oil and gas, Power, Recycling, Transportation, Water and waste water etc.
