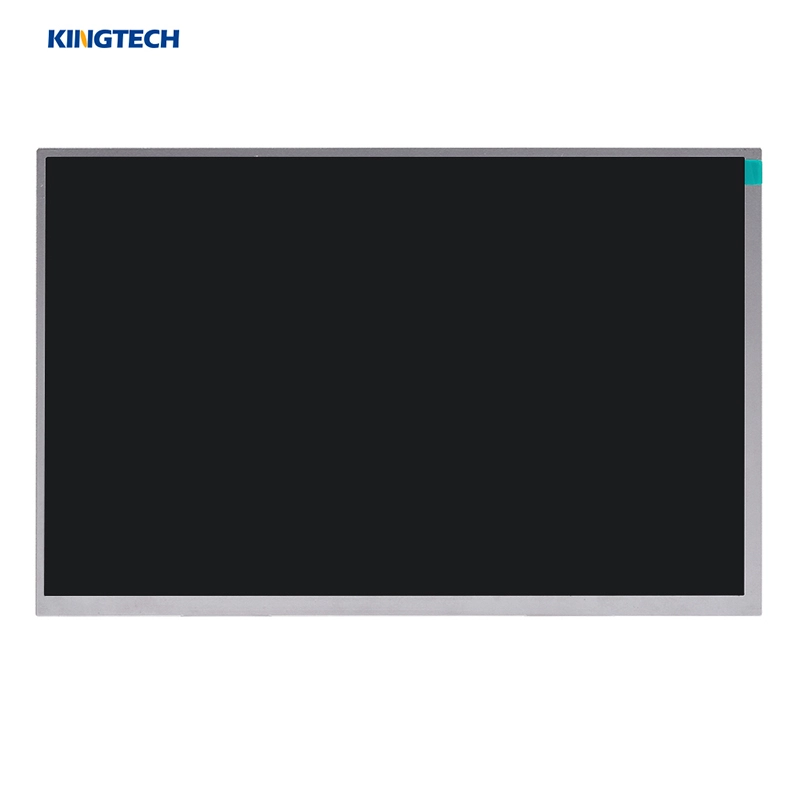

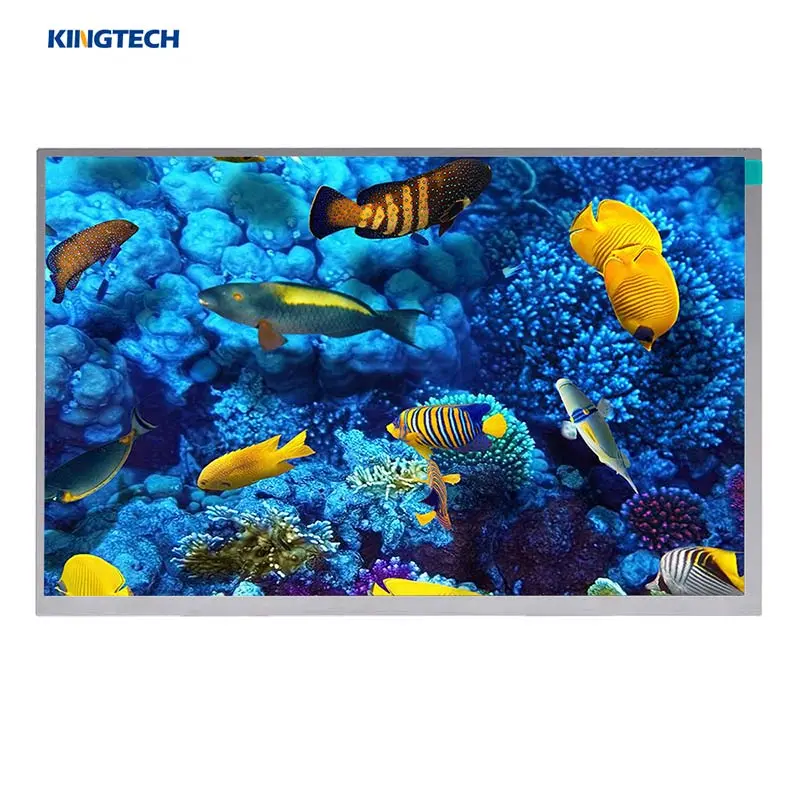

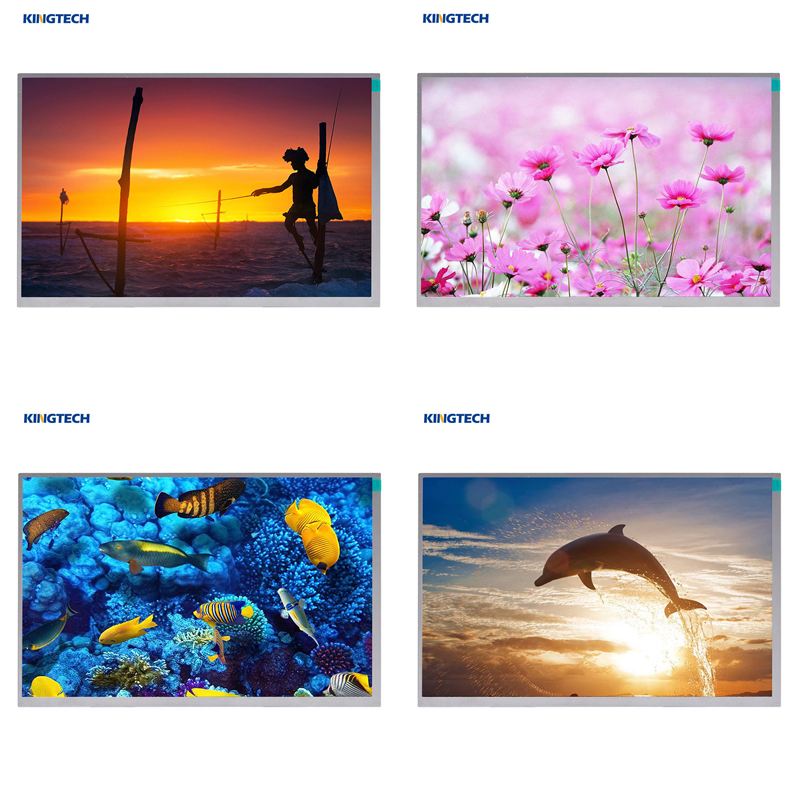

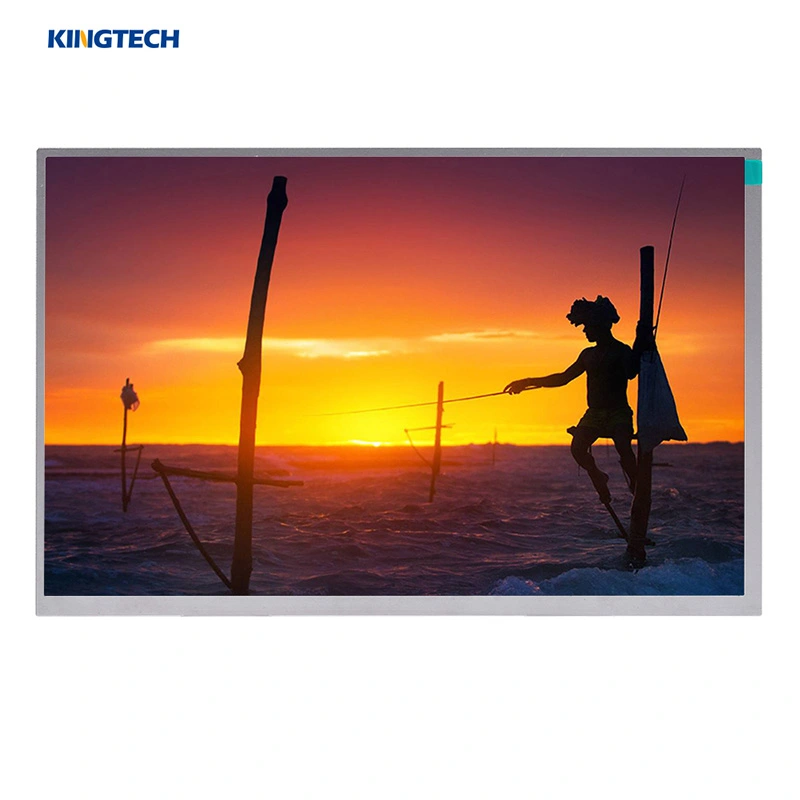

Kingtech 1280*800 IPS/ free viewing angle 10 inch LCD display module is our leading TFT display product. This high brightness 10 inch TFT display can stand very high temperatures because we invested an NRE fee to the LCD panel's original manufacturer and have custom-made special crystal to handle the high temperature.
Kingtech, as one of LCD screen suppliers, can offer many kinds of top-quality TFT LCD display products, such as 10.1 inch 1200x1920 HDMI IPS LCD display, 10.1 inch LCD screen with brightness of 1000 nits, and so on.
Get a Quote
Documentation
Kingtech 1280*800 IPS/ free viewing angle 10 inch lcd display screen of high brightness has the below features:
The most important feature of this high brightness 10.1 inch lcd display is the wide temperature at -30℃ to +80℃ for both operating and storage temperatures. Normally the LCD 10.1 inch 1280*800 resolution display is only -10℃ to +60℃ or -20℃ to +70℃ operating temperature.
Our high brightness 10.1 lcd display module can stand so high temperature because we invested an NRE fee to the LCD panel's original manufacturer and have custom-made special crystal to handle the high temperature.
High brightness sun readable LCD of 1000nits
The high brightness LCD touch screen 10 inches can be used for outdoor applications and some tough environments in industrial fields.
We can supply a capacitive touch panel with I2C or USB interface for the customer's option.
Quite some customers tooled up the thick cover glass like 3mm to protect their device.
We can make gloves operation function by choosing a special driver IC.
Long term and stable supply.

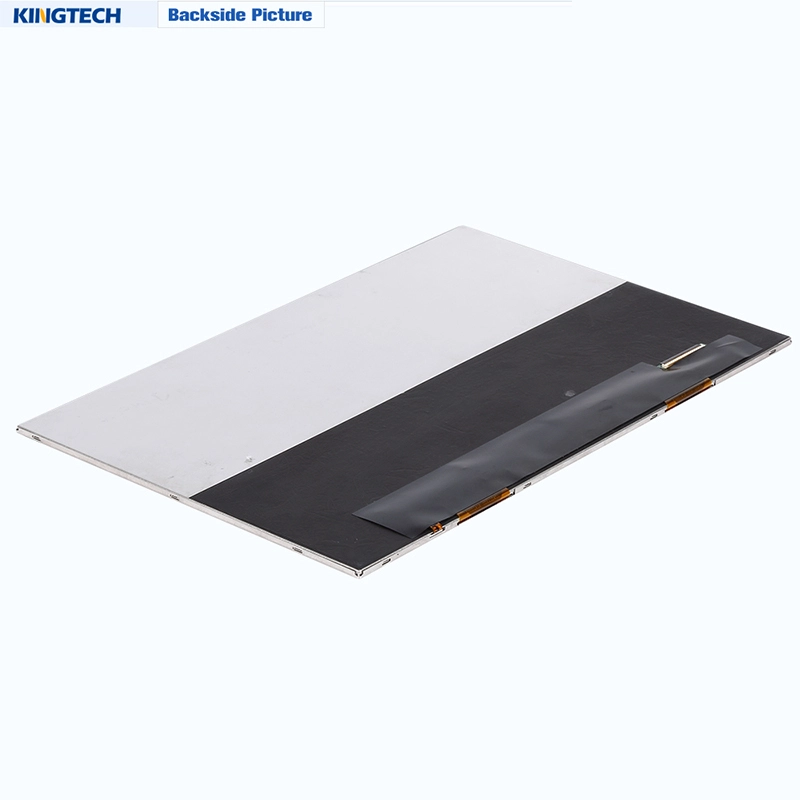

We invested tools for an LCD panel, backlight, FPC, touch panel, and T-con board ourselves.
So, we have a very good position to ensure the long term and stable supply.
Our T-con board includes the voltage rising circuit and the backlight control circuit.
This design of LCD touch screen 10 inches can help our customers to save a lot of money.
HDMI board is available.
We designed an HDMI board to match with a high brightness LCD display so that you can just connect our display to your computer easily and quickly to check the display effect.
HDMI board available to this 10.1-inch model can be used as an alternative to Mitsubishi model AA101TA12 and Innolux model. If you are looking for these displays, you can try our 10.1 inch LCD display.
| Item | Kingtech 10.1 inch IPS 1280x800 LCD Screen | key parameter |
| Model No. | PV10109LZR40G | |
| Resolution | 1280*800 | y |

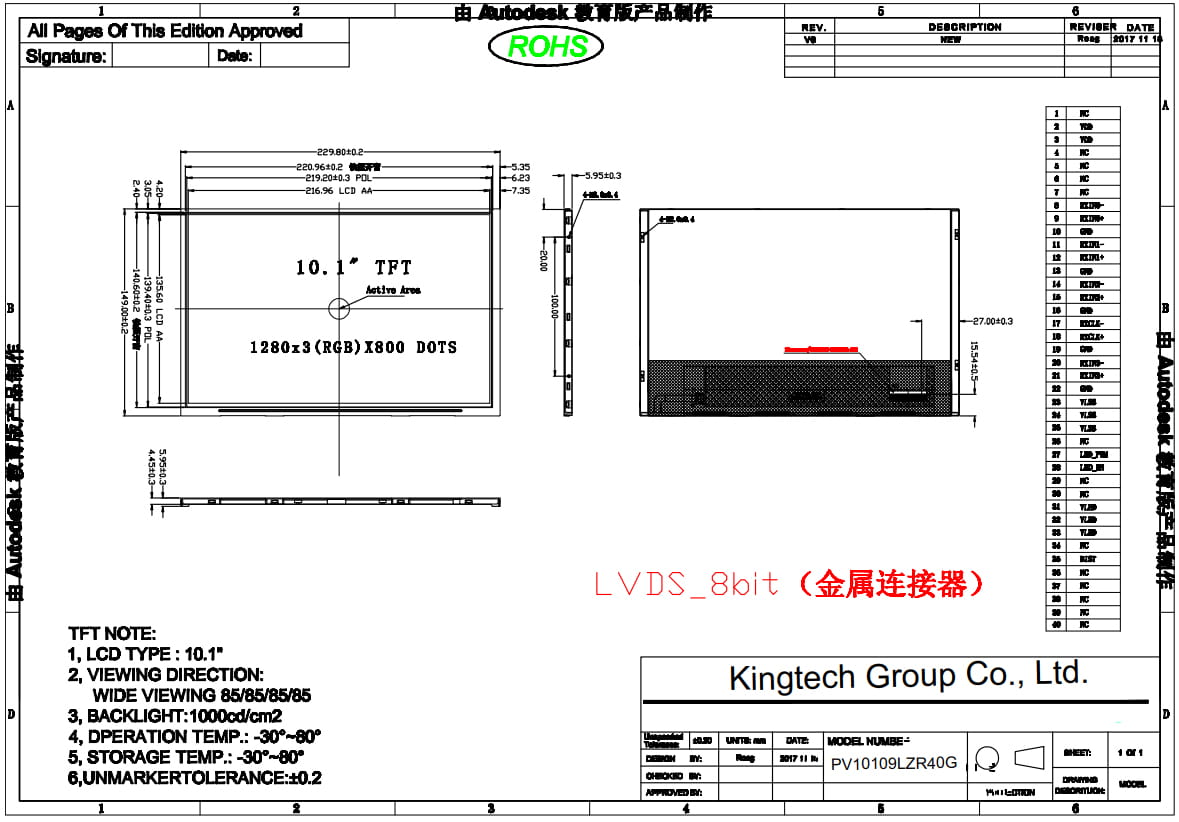

| Outline Dimension | 229.80(W) x 149.00(H) x 5.95(T) | |
| Active Area(mm) | 216.96(W) x 135.60(H) | |
| Brightness | 1000nits | y |
| Touch screen | I2C / USB capacitive touch screen | y |
| Interface | 8-BIT LVDS Interface | y |
| Viewing Angle | All | y |
| LED life | 50000h | |
| Display Mode | Transmissive / Normally Black | |
| Operating Temperature | -30℃ to +80℃ | |
| Storage Temperature | -30℃ to +80℃ | |
| Board | HDMI board | y |
