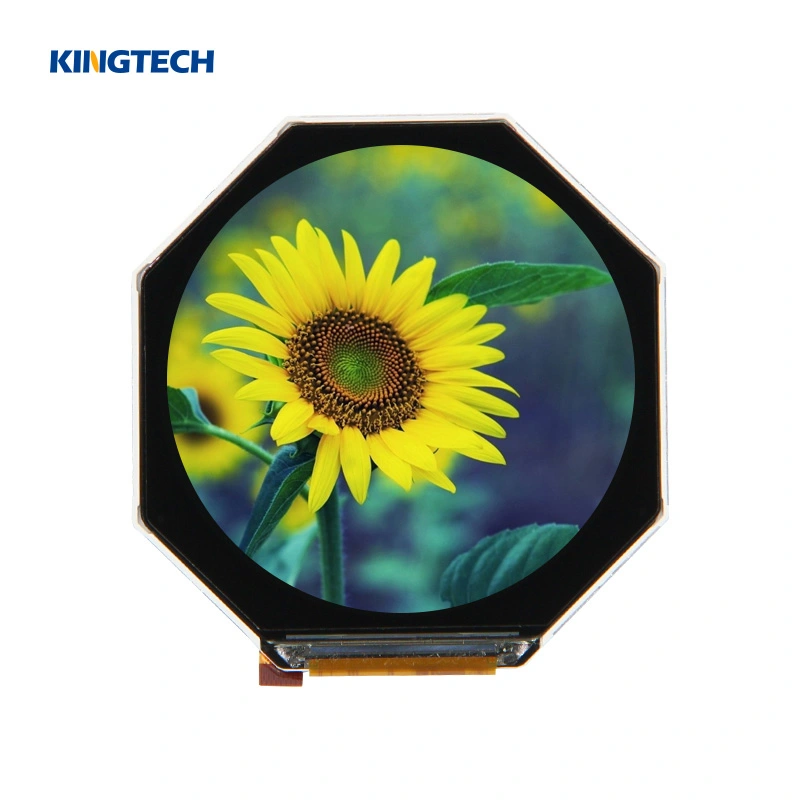

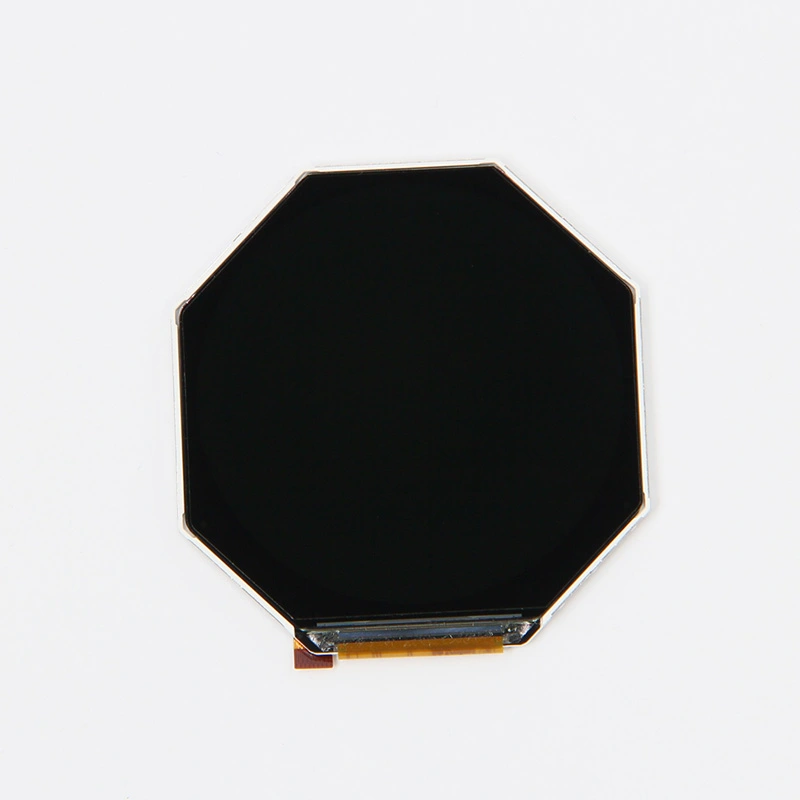

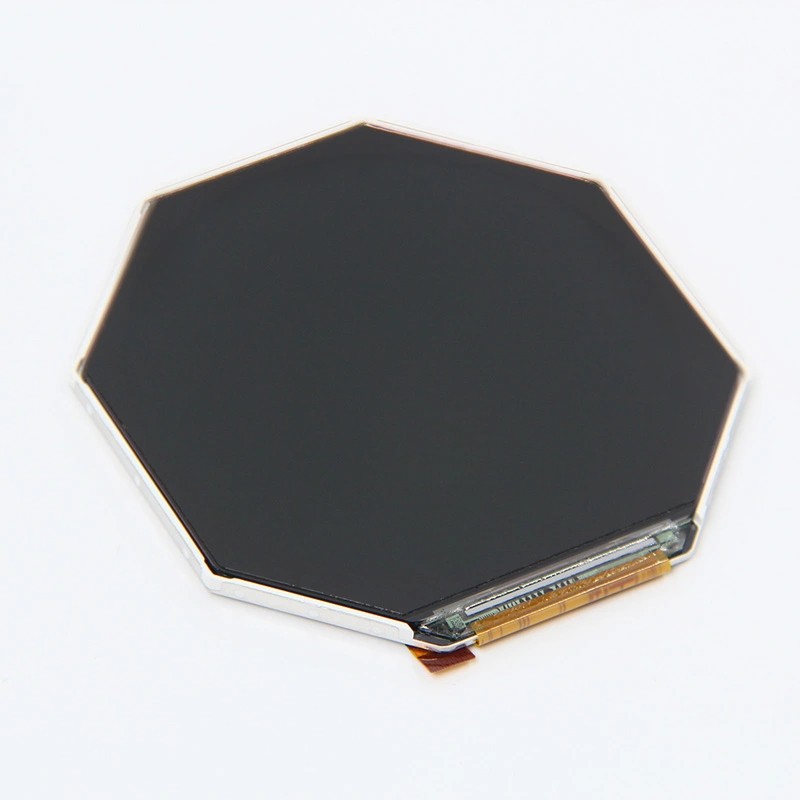

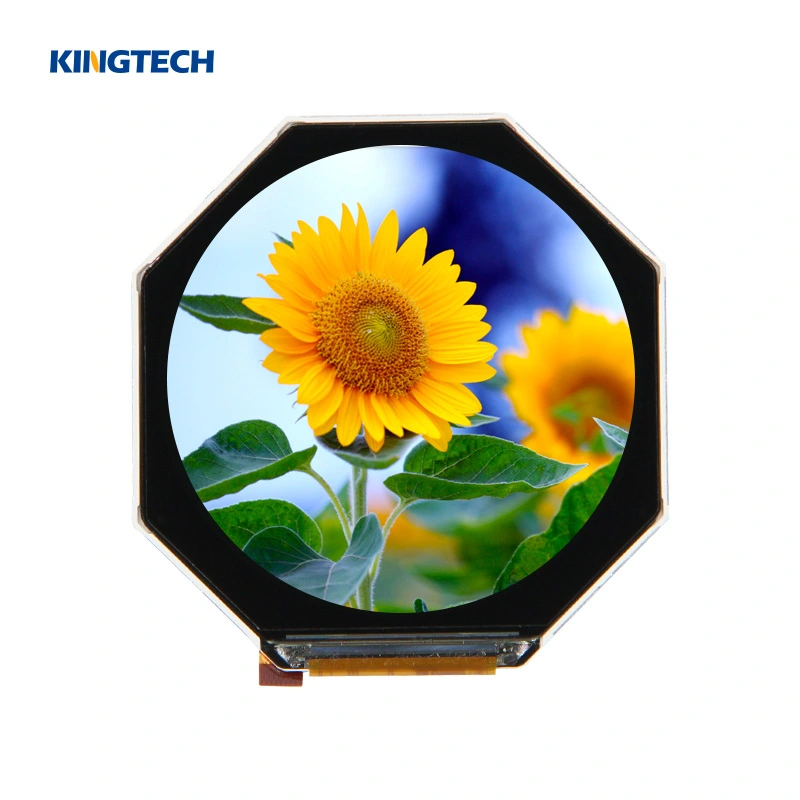

Kingtech 3.34inch 320x320 round TFT LCD display is our most leading product. The 3.34inch is 600nits, it can be used for outdoor devices such as the advertising machine and automotive equipment.
The 3.34inch round TN display also has existing HDMI Board. The HDMI board can be connected to a raspberry pi.
Kingtech Diaplay has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard LCD dispaly and satisfying one-stop services. Any requests will be welcomed.
Round / Circle / Circular
320x320 resolution
High brightness/sunlight readable/600nits
HDMI Board
Get a Quote
Documentation
| Item | Kingtech 3.34 inch 320*320 MIPI display |
| Model No | PV033400AR17A |
| Resolution | 320(RGB) X 320 |
| Outline Dimension | 66.20(H)×69.30(V)×2.66(T) |
| Active Area(mm) | Diameter 60mm |
| Interface | MIPI (Command Mode) |
| Brightness | 600nits |
| Viewing Angle | 12 o'clock |
| Driving IC | ST7796SI |
| Display Mode | TM with Normally White |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Board | HDMI board |
The 3.34 inch 320x320 round display has a wide application field. It can be used for the thermostat, automotive device, handheld device, industrial control, and smart home equipment.
