7.0-PV07048Y0150Z

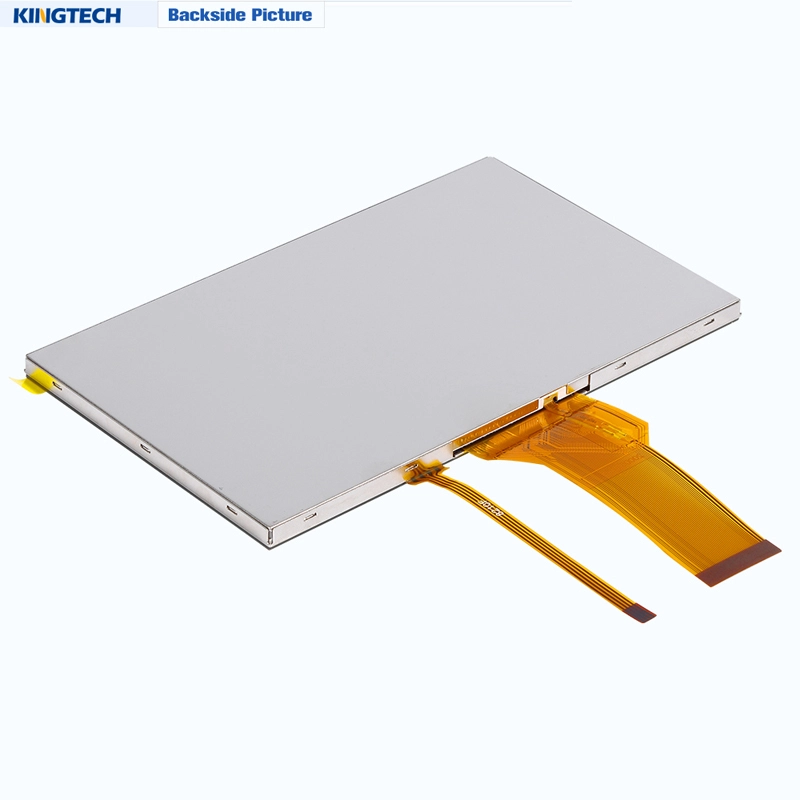

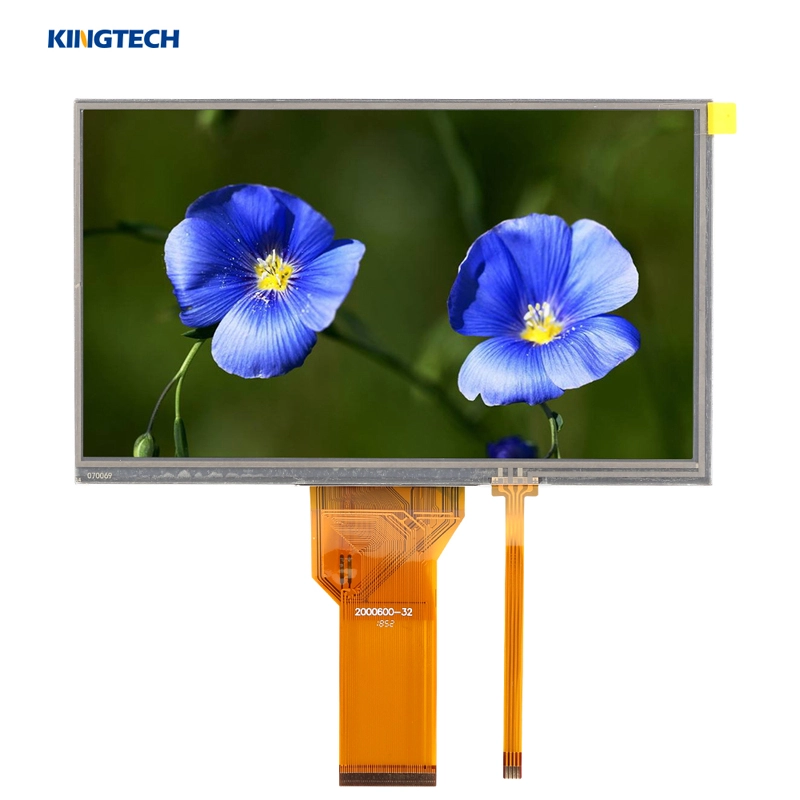

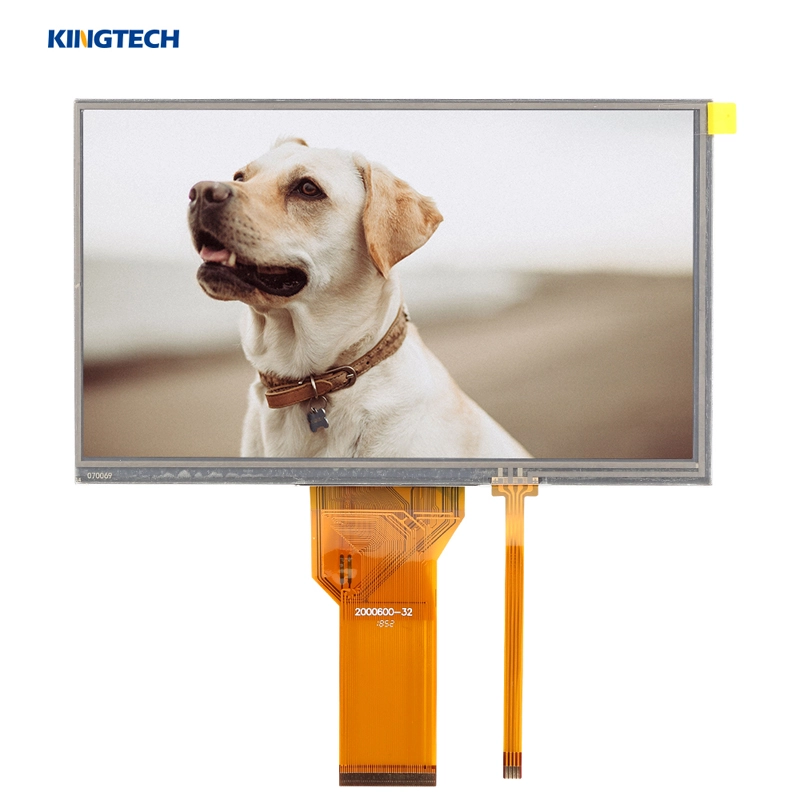

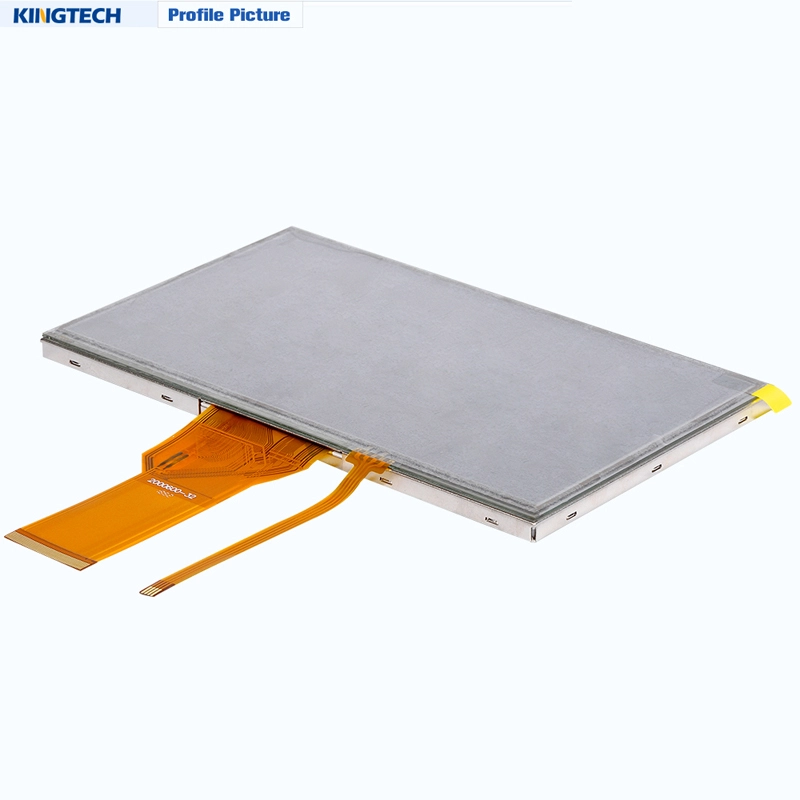

Kingtech PV07048Y0150Z is a 7-inch 800x480 dots LCD module using TN TFT-LCD technology. It is composed of a TFT LCD panel, driver IC, FPC, backlight. It supports 24bits RGB interface. The 7inch WVGA TFT LCD screen is 500nits for sunlight readable. The 7inch TFT display work temperature is -20-70. It is with backlight of 3*9LED. This 7inch has resistive touch and capacitive touch and also can be customized.


  • standard 50pins, support RGB interface

  • Brightness 500nits, High brightness, Sunlight readable, Outdoor

  • Competitive price

  • Resistive touch and capacitive touch can be customized.

Get a Quote Get a Quote Get a Quote Documentation Documentation Documentation

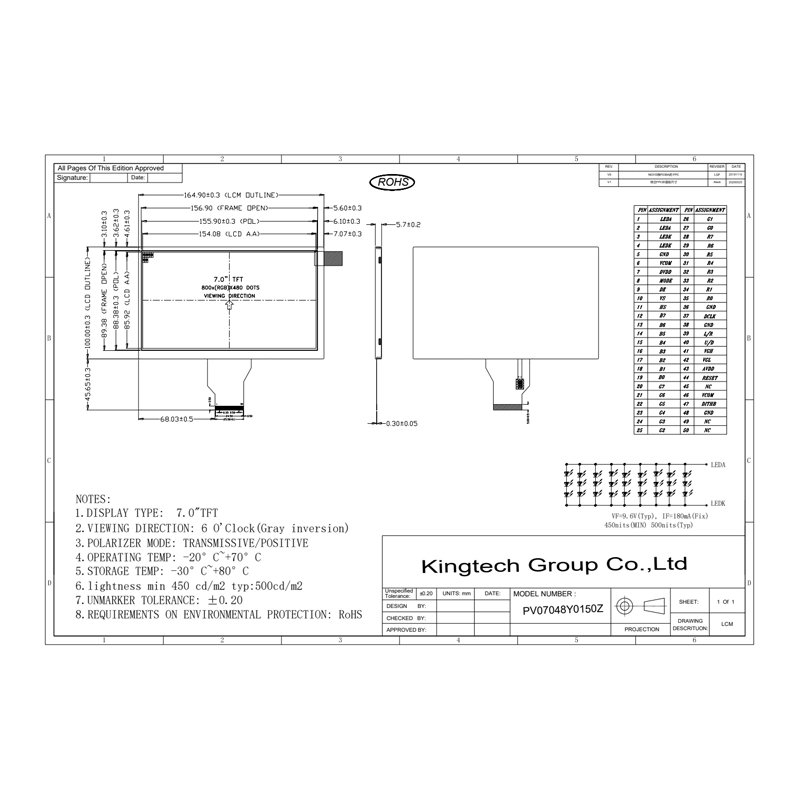

Specification of 7.0-PV07048Y0150Z

Item7.0 inch TN 800x480 LCD module
Model No.PV07048Y0150Z
Resolution800*480
Outline Dimension (mm)164.9*100*5.7
Active Area (mm)154.08*85.92
Viewing Angle12 O'clock
Brightness500nits
Interface24bit RGB
Backlight3*9LED
Pin nums50
Driving IC/
PIN No.50
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenResistive touch and capacitive touch optional
ApplicationIndustrial, Medical, Digital photo frame, portable DVD, video doorbell, video phone.


Application of 7.0-PV07048Y0150Z

  • The 7inch WVGA TFT LCD module applicable for Industrial, Medical, Digital photo frame, portable DVD, video doorbell, video phone, outdoor etc.
