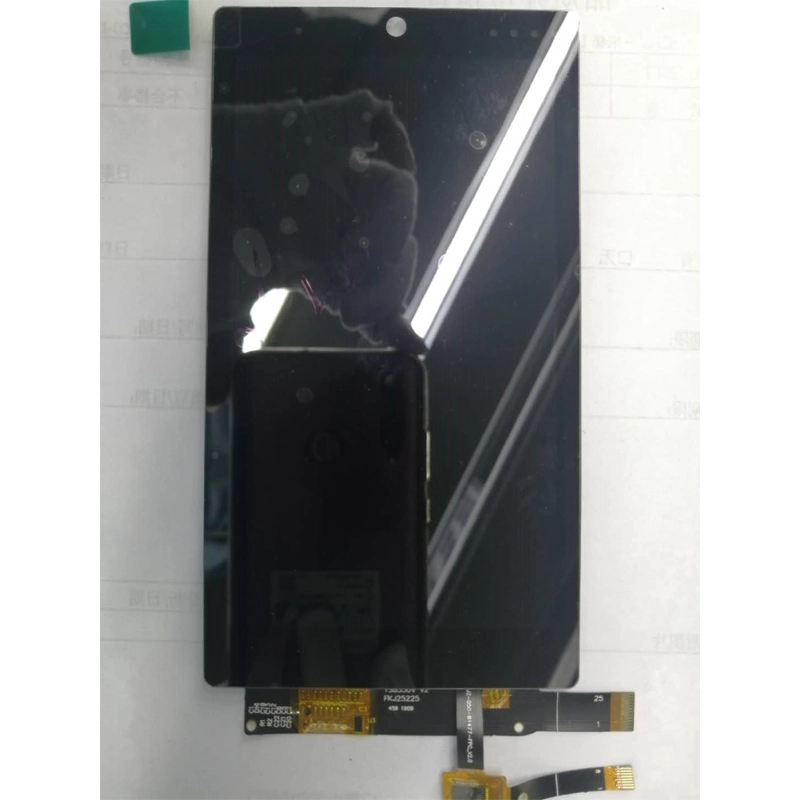

Kingtech 5inch IPS/ free/all/wide/full viewing angle TFT LCD display has a high resolution for 720x1280. This 5inch MIPI 4 lanes interface IPS LCD screen has existing capacitive touch, we can also custom the touch panel according to the customer's requirements. The 5inch lifetime can reach 30000 hours and the brightness is 350nits.
Kingtech Diaplay, as one of LCD display panel manufacturers, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be welcomed.
All/Free/Wide viewing angle
720x1280 resolution
IPS type
MIPI-4 Lanes
Support TFT capacitive touchscreen
Get a Quote
Documentation
| Item | 5inch 720x1280 TFT module display |
| Model No | PV0503TD25D-C |
| Resolution | 720x1280 |
| Outline Dimension | 131.8(W)x71.8(H)x2.7(T) |
| Active Area(mm) | 62.1(H)x110.4 (V) |
| Interface | MIPI-4 Lanes |
| Brightness | 350nits |
| Driver IC | HX8394D |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | TN / Transmissive / Normally Black |
| PIN | 25 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Capacitive touch screen |
The 5inch 720x1280 IPS LCD module can be used for 3D printer, medical device, handheld equipment, industrial control, smart Home, POS machine and black box.
