Kingtech 11.6inch Full HD 1920*1080 IPS TFT display supply very stable. This 11.6 inch supports the eDP interface. In addition, the 11.6 inch TFT module brightness is 220nits, and this 11.6-inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, can be customized as capacitive touch or resistive touch according to the customer.
All/Free/Wide viewing angle/IPS
Full HD/ 1920*1080
Stable supply
Landscape / Horizontal display
eDP interface
Can custom capacitive/ resistive touch
Industrial equipment/medical device/ smart home
Get a Quote
Documentation
| Item | 11.6 inch 1920*1080 TFT LCD module |
| Model No | PV116000H0330A |
| Resolution | 1920*1080 |

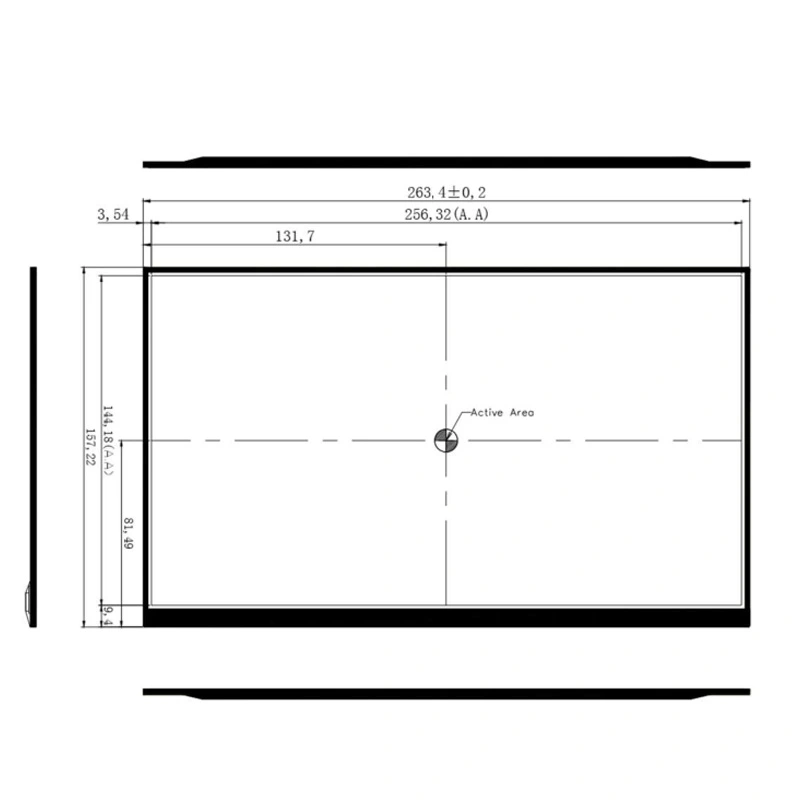

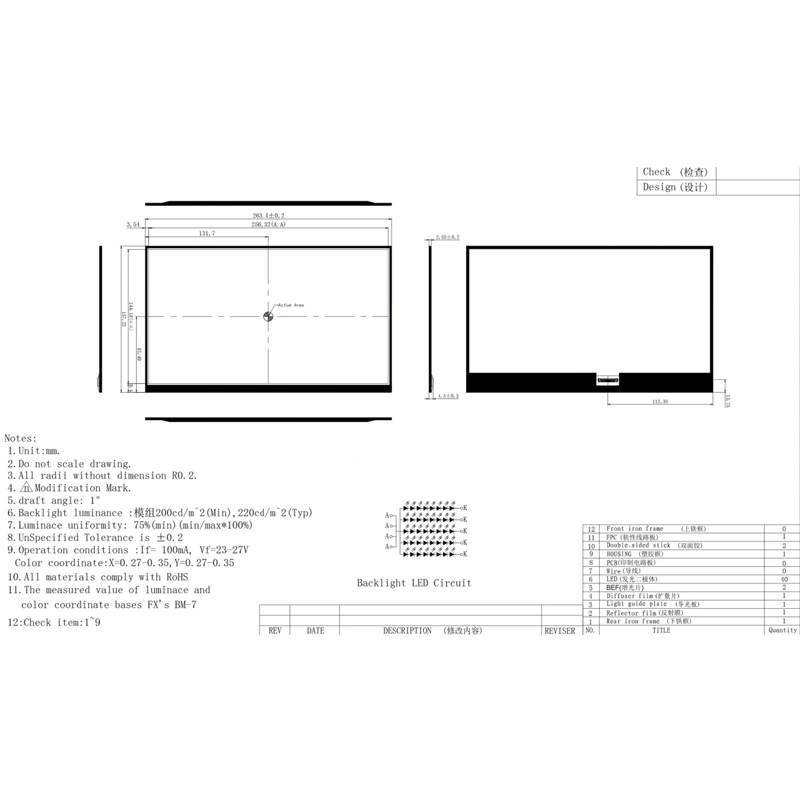

| Outline Dimension | 263.4*157.22*2.55 |
| Active Area(mm) | 256.32*144.18 |
| Interface | eDP |
| Brightness | 220 cd/m2 |
| Viewing Angle | All |
| Display Mode | Normally black |
| PIN | 30 |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -10°C~60°C |
| Contrast Ratio | 220 |
| LED lifetime | 30,000h |
| Touch panel | Can custom capacitive touch |
The 11.6 inches 1920*1080 Full HD IPS TFT LCD display can be used for industrial equipment, agricultural equipment, medical device, game console, smart homes, etc.
