Kingtech 15 inch 1024*768 horizontal TFT LCD display supply is very stable. This 15 inch supports LVDS interface. In addition, the 15-inch XGA TFT module has 16.7M / 262K color depth. The brightness is 500nits high brightness and this 15-inch screen is IPS/Free/ Full viewing angle type. For the touch part, Kingtech can custom the capacitive touch or resistive touch according to the customer's requirements.
Landscape /Horizontal screen
XGA /1024 x 768
IPS/Free/ /All /Full /Wide viewing angle
High brightness/Sunlight readable/Outdoor/500nits
Wide temperature / -30~+80C
Stable supply
LVDS interface
Can custom capacitive touch and resistive touch
Get a Quote
Documentation
| Item | 15 inch 1024*768 XGA TFT display module |
| Model No | PV15003S0120D |
| Resolution | 1024 x 768 / XGA |

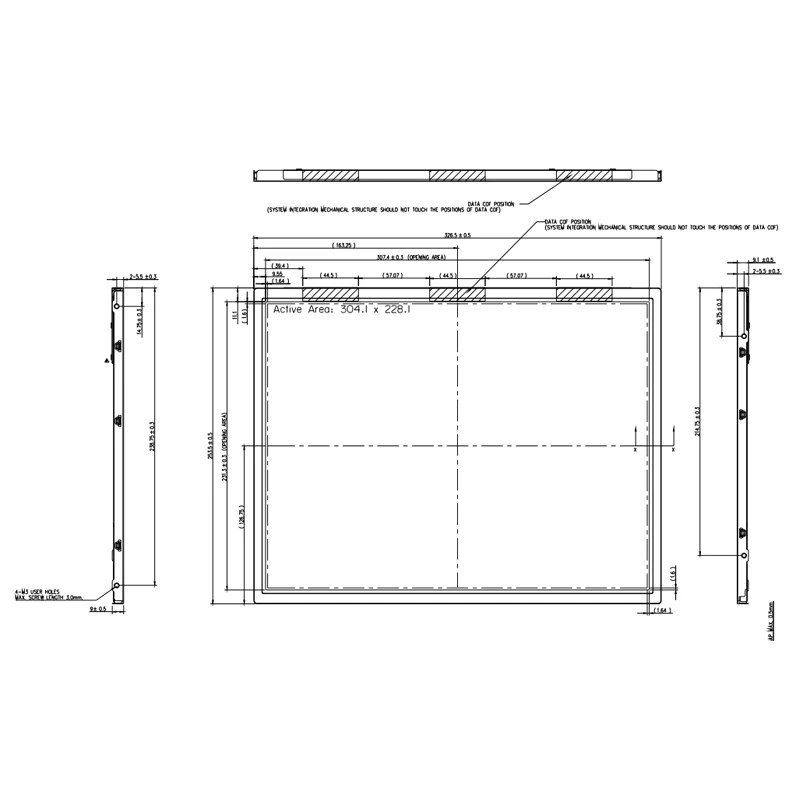

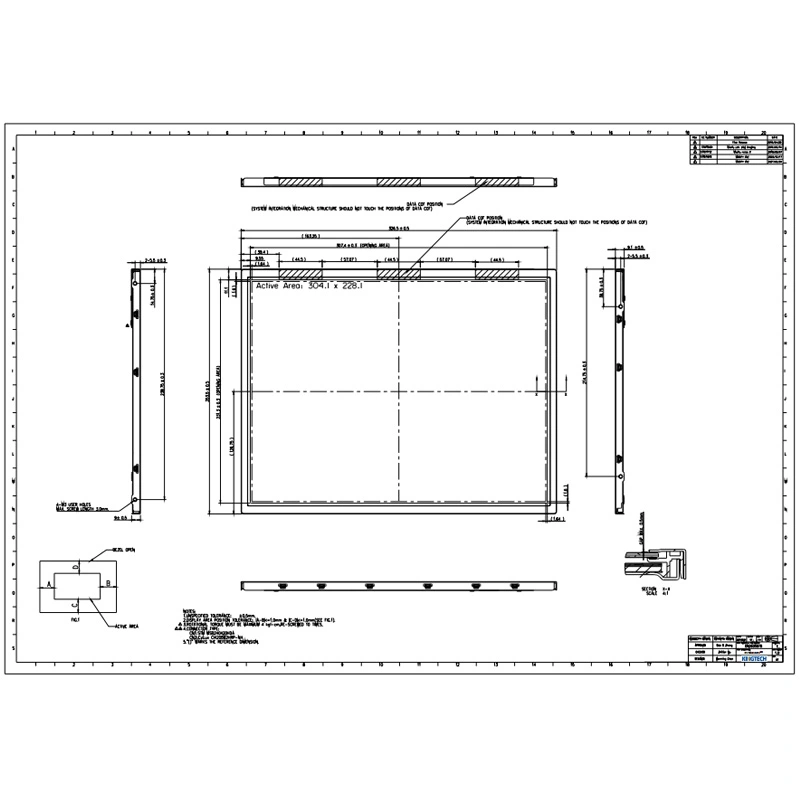

| Outline Dimension | 326.5*253.5*9.1 |
| Active Area(mm) | 304.1 (H) x 228.1(V) |
| Viewing Angle | All |
| Brightness | 500 nits |
| Interface | LVDS Interface |
| Display Color | 16.7M / 262K |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -40℃~80℃ |
| Display Type | Normally Black, Transmissive |
| Touch panel | Can custom resistive and capacitive touch |
The 15-inch XGA /1024 x 768 IPS landscape screen TFT LCD display can be used for agricultural equipment, medical device, game console, Industrial and smart homes, etc.
