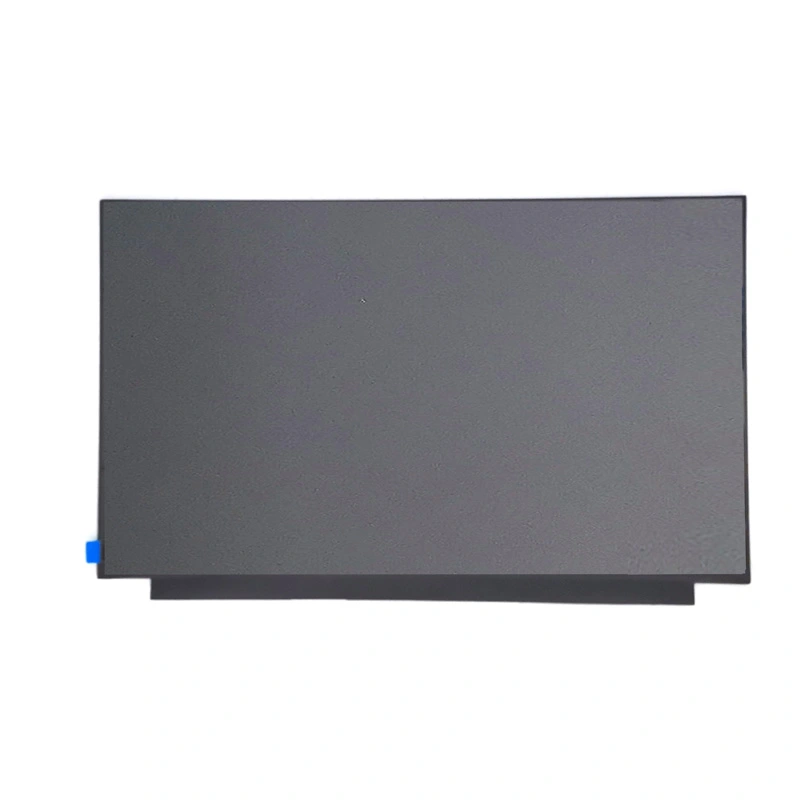

Kingtech 13.3 inch 1920*1080 Full HD Vertical TFT LCD display supply very stable. This 13.3-inch screen supports 2 lane eDP interface. In addition, the 13.3 inch TFT module 16.7M color depth, and the color gamut is 72%. The brightness is 280nits and this 13.3-inch screen is IPS/Free/ Full viewing angle type. For the touch part, Kingtech can custom the capacitive touch or resistive touch according to the customer’s requirements.
Landscape /Horizontal screen
1920*1080/ Full HD
IPS/Free/ Full viewing angle
The color gamut is 72%
Stable supply
eDP interface
Can custom capacitive touch and resistive touch
Get a Quote
Documentation
| Item | 13.3 inch 1920*1080 TFT display module |
| Model No | PV013309H0330K |
| Resolution | 1920*1080/ Full HD |

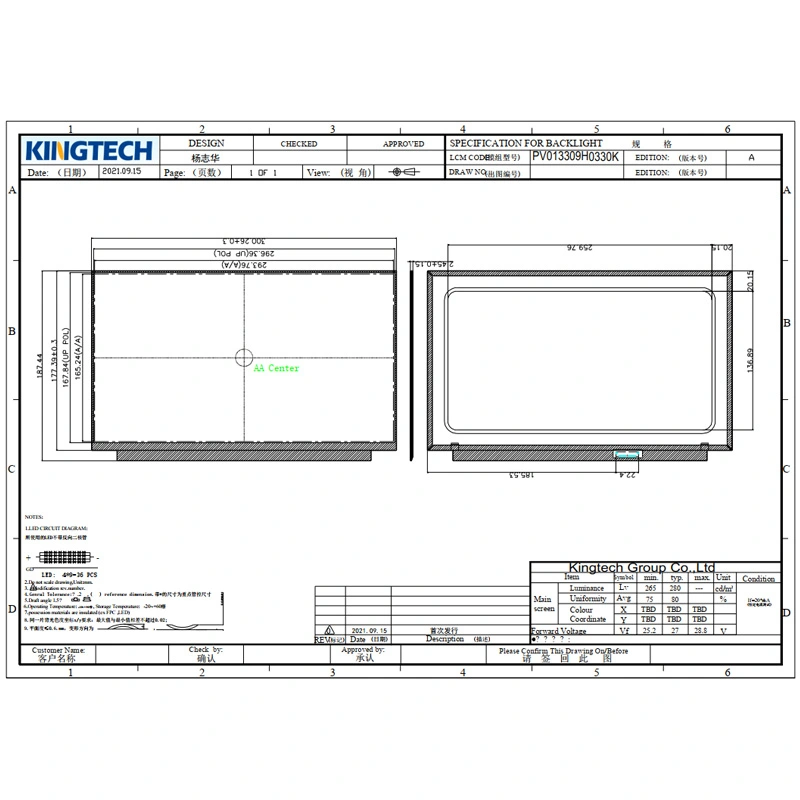

| Outline Dimension | 300.26*177.39*2.45 |
| Active Area(mm) | 293.76*165.24 |
| Viewing Angle | All |
| Brightness | 280 nits |
| Interface | 2 lane eDP interface |
| Display Color | 16.7M color depth, color gamut 72% |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -10℃~60℃ |
| Display Type | Normally Black, Transmissive |
| Touch panel | Can custom resistive and capacitive touch |
The 13.3 inch 1920*1080 Full HD IPS landscape screen TFT LCD display can be used for agricultural equipment, medical device, game console, Industrial and smart homes, etc.
