Kingtech 2.0 inch 240x320 resolution TFT LCD display. It with stable production. This 2.0 inch TFT LCD display supports 80 MCU16bit/ 80 MCU8bit interface, ILI9342C driver IC. It with All viewing angle. Mainly application for Smart home, hand-held device. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Small LCD display
IPS/Wide/Free/All viewing angle
Can custom resistive touch and capacitive touch
QVGA resolution
Get a Quote
Documentation
| Item | 2.0 inch 240x320 80 MCU16bit/ 80 MCU8bit LCD display |
| Model No. | PV02015D0140T |
| Resolution | 240*320 |

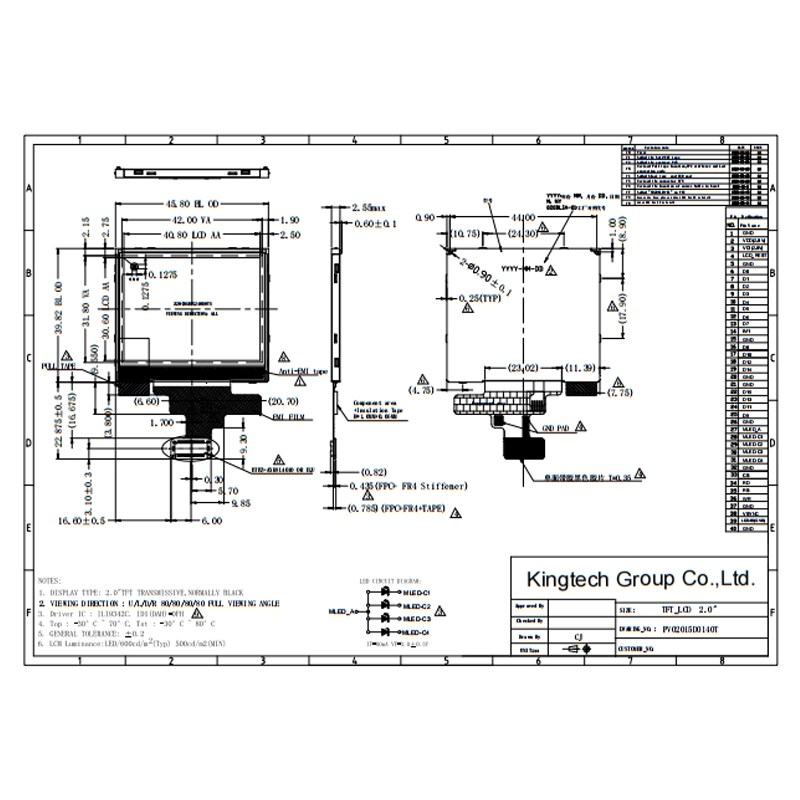

| Outline Dimension (mm) | 45.80*39.82*2.55 |
| Active Area (mm) | 40.80*30.60 |
| Viewing Angle | IPS |
| Brightness | 600nits |
| Interface | 80 MCU16bit/ 80 MCU8bit |
| Backlight | 1*4LED |
| Driving IC | ILI9342C |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
2.0inch QVGA TFT LCD module can be used for Medical, hand-held device, industrial, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
