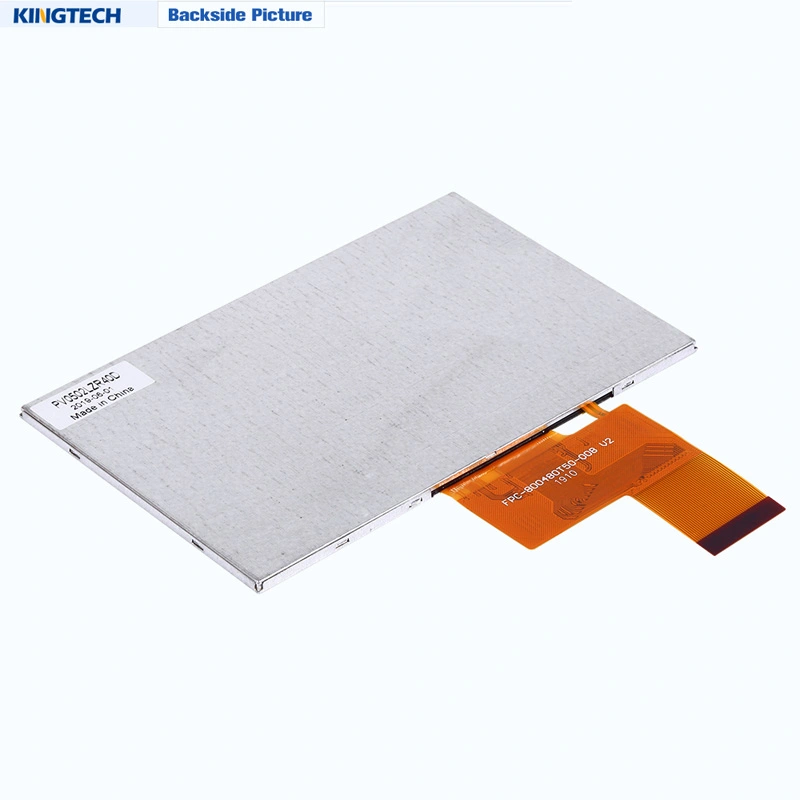

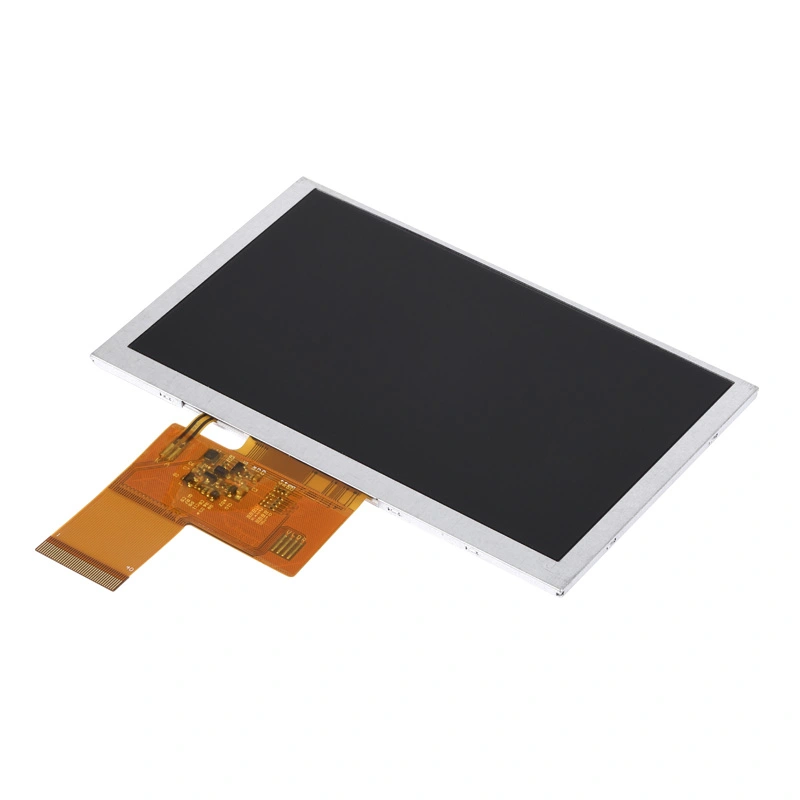

Kingtech PV05029Y0120A-CT is a 5.0-inch LCD module using IPSi TFT-LCD technology. Its resolution is 800x480/WVGA, landscape. It has full viewing angle, users can view the display well from every side. It has a relative high brightness of 800nits with 8*3LED. It supports multiple SPI interfaces, thus 3-wire SP, 4-wire SPI, QSPI interface. It is with capacitive touch screen. The driver IC of LCD and touch is FT813+ST7265/FT5426.
5.0inch 800*480/WVGA display
High brightness/Sunlight readable/800nits/outdoor
Stable supply
All/Wide/Full/IPS viewing angle
3-wire SPI、4-wire SPI、QSPI interface
With capacitive touch
Get a Quote
Documentation
| Item | High brightness 5.0inch 800x480 with capactive touch |
| Model No. | PV05029Y0120A-CT |
| Resolution | 800*480/WVGA |
| Outline Dimension (mm) | 120.7*75.8*6.2 |
| Active Area (mm) | 108 *64.8 |
| Viewing Angle | All |
| Brightness | 800nits |
| Interface | 3-wire SPI、4-wire SPI、QSPI interface |
| Backlight | 8*3LED |
| Driving IC | FT813+ST7265/FT5426 |
| PIN No. | 20 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Support custom capacitive touch and resistive touch |
| Application | Industrial,meter, camera,medical, outdoor device, Security device, Farm machine etc. |
PV05029Y0120A-CT is applicable for industrial, meter, camera,medical, outdoor device, Security device, Farm machine, etc.
