Kingtech 12.1 inch 1024*768 TFT LCD display supply very stable. This 12.1 inch supports LVDS interface. In addition, the 12.1 inch TFT module brightness is 850nit high brightnesss, and this 12.1 inch screen is IPS / Free / Full / Wide viewing angle type. For the touch part, Kingtech can custom the touch according to customer’s requirements.
andscape / Horizontal screen
1024*768
Stable supply
High brightness/Sunlight readable/850 nits
IPS / Free / Full / Wide viewing angle
LVDS interface
Can custom capacitive touch and resistive touch
Get a Quote
| Item | 12.1 inch 1024*768 TFT LCD module |
| Model No | PV012104TX20E |
| Resolution | 1024*768 |

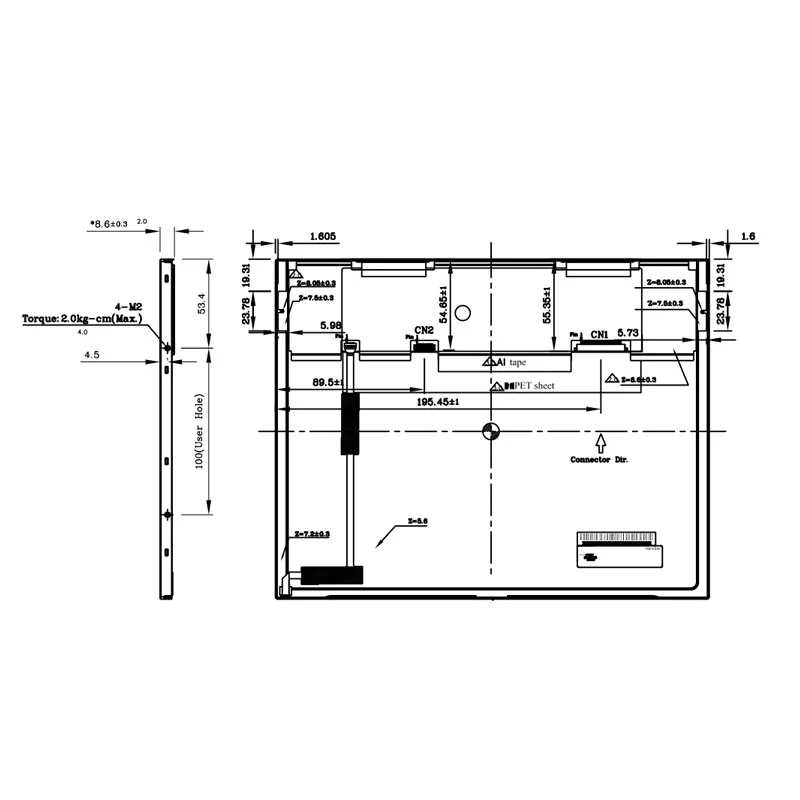

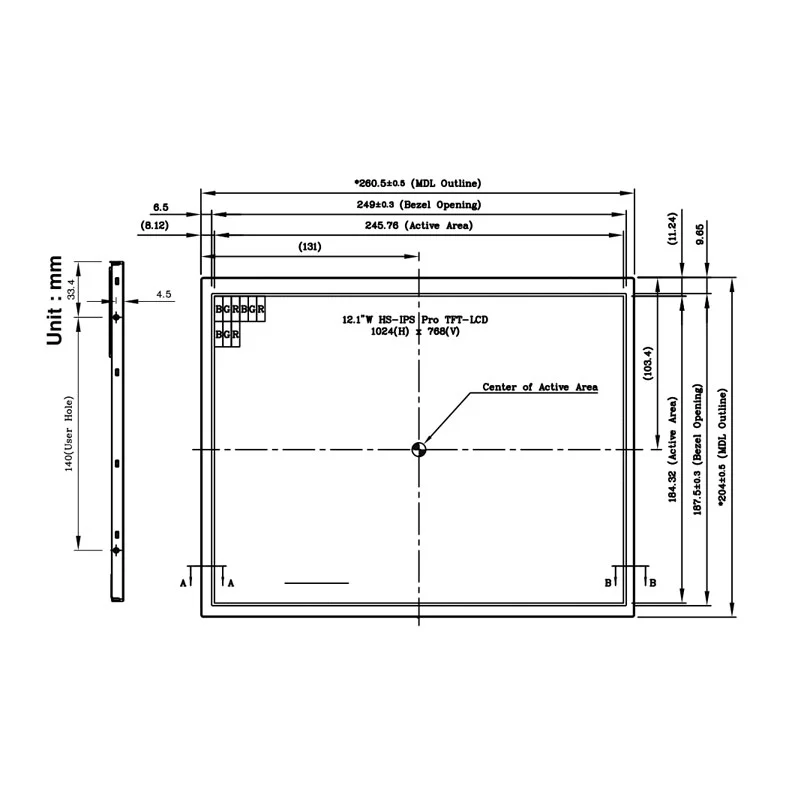

| Outline Dimension | 260.5 (H) x 204 (V) x 8.6 (D) |
| Active Area(mm) | 245.76(H)x184.32(V) |
| Interface | LVDS |
| Brightness | 850 cd/m2 |
| Viewing Angle | ALL |
| Display Mode | Normally BLACK |
| PIN | 30 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| NTSC | 70 |
The 12.1inch 1024*768 TN TFT LCD display can be used for agricultural equipment, medical device, game console and smart home etc.
