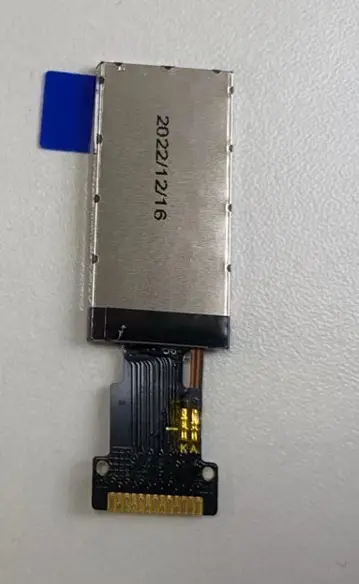

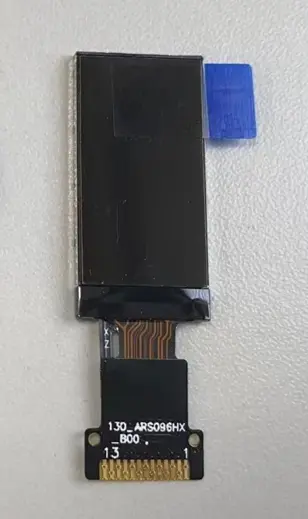

Kingtech 0.95 inch 120X240 resolution AMOLED display with stable production. This 0.95 inch AMOLED display supports SPI interface, 450nits brightness, SH8501 driver IC. It is IPS, full/wide/all viewing angle, with better display effect. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
AMOLED
120X240
Stable supply
IPS / Wide viewing angle / All viewing angle
SPI interface
450nits brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart watch
Get a Quote
Documentation
| Item | 0.95 inch IPS 120x240 SPI AMOLED display |
| Model No. | PV09500A0120A |
| Resolution | 120*240 |
| Outline Dimension (mm) | 16.32*29.76*1.68 |
| Active Area (mm) | 13.82*23.04 |
| Viewing Angle | IPS |
| Brightness | 450nits |
| Interface | SPI |
| Backlight | / |
| Driving IC | SH8501 |
| PIN No. | 20 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
The 0.95 inch AMOLED display can be used for Medical, hand-held device, industrial or others.
