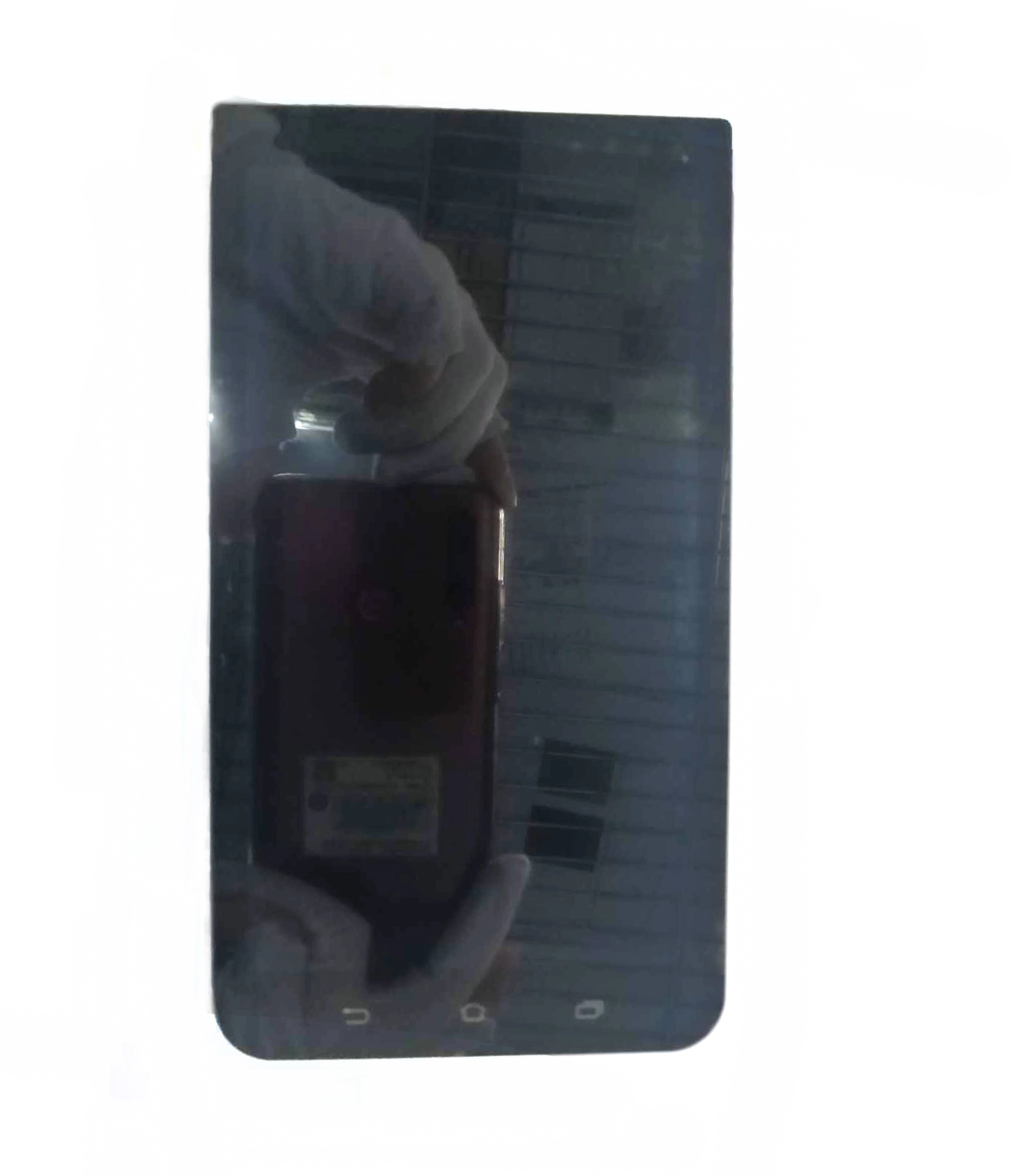

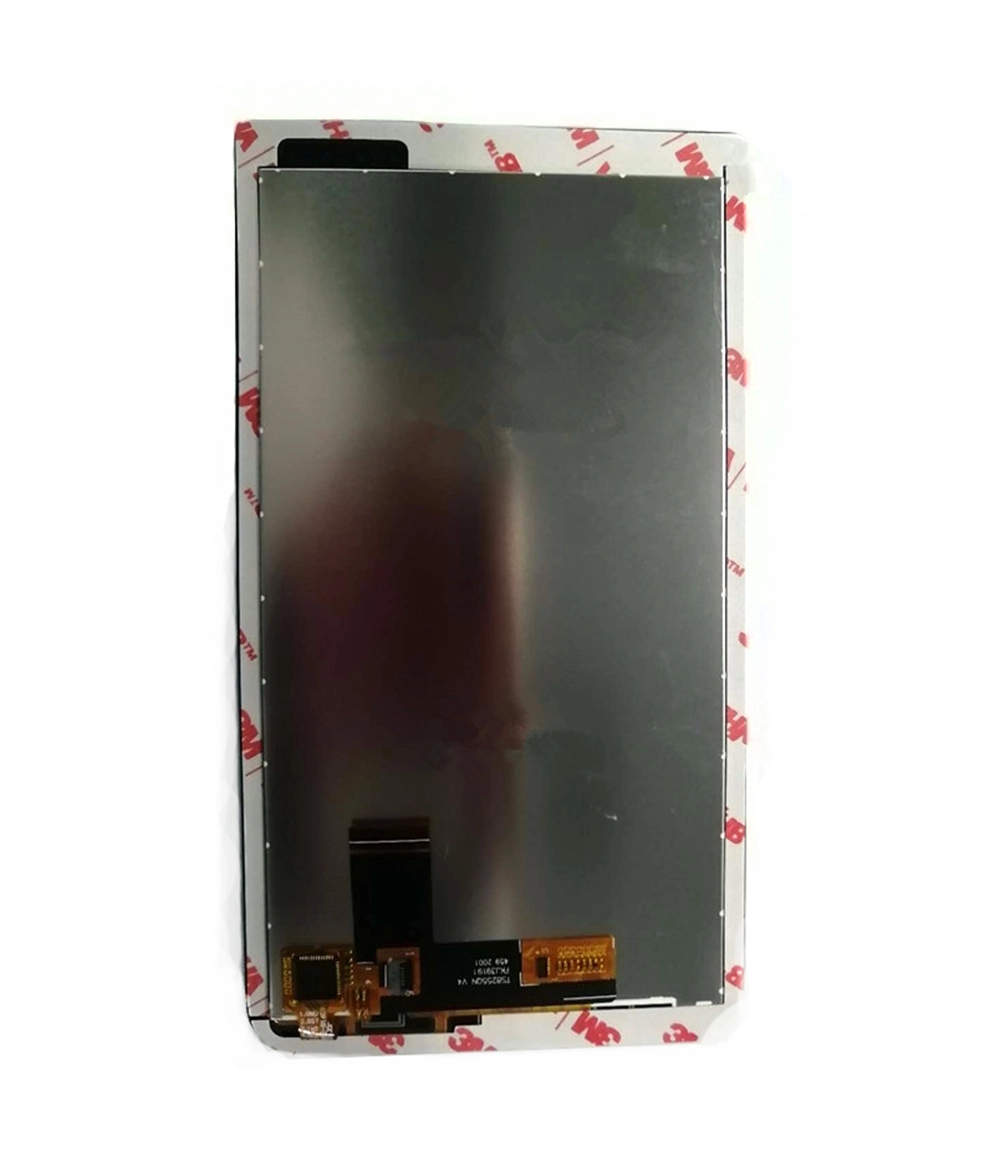

Kingtech PV05500TD29A-C is a 5.5-inch 720*1280 dots LCD module using IPS TFT-LCD technology. It is composed of a TFT LCD panel, driver IC, FPC, backlight. It is Full Viewing angle 80/80/80/80. It is integrated with HX8394-F210PD250 driver IC. It supports MIPI 4Lane interface. Its work temperature is -20-70. It is with backlight of 7*2LED. Its brightness is 360nits. Capacitive touch is optional. It is suitable for consumer electronic products such as mobile phone, hand-held device, thermostat, video door, etc.
5.5inch 720*1280 LCD with capacitive touch
Full/All/Wide viewing angle
Support MIPI 4 lane interface.
Capacitive Touch optional
Get a Quote
Documentation
| Item | 5.5inch 720*1280 LCD with capacitive touch |
| Model No. | PV05500TD29A-C |
| Resolution | 720*1280 |
| Outline Dimension (mm) | 76.5*149.5*2.73 |
| Active Area (mm) | 68.04*120.96 |
| Viewing Angle | All |
| Brightness | 360nits |
| Interface | MIPI 4Lane |
| Backlight | 7*2LED |
| Driving IC | HX8394-F210PD250 |
| PIN No. | 29 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch |
| Application | Mobile phone, telecom device, handheld device, video door |
The 5.5inch 720*1280 IPS TFT LCD screen application is for Industrial control, medical, smart home, Handheld devices, mobile payment terminal, home appliances, commercial equipment.
