Kingtech 3.5 inch 340x800 resolution TFT LCD display. It with stable production. This 3.5 inch TFT LCD display with MIPI interface, ST7701 driver IC. It with All viewing angle. Mainly application for e-Bike, hand-held device, outdoor application. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
MIPI interface
Bar type
400nits
TN viewing angle
Can custom resistive touch and capacitive touch
Get a Quote
Documentation
| Item | 3.46 inch 340x800 MIPI interface bar type LCD display |
| Model No. | PV035WV-BIA3003 |
| Resolution | 340*800 |

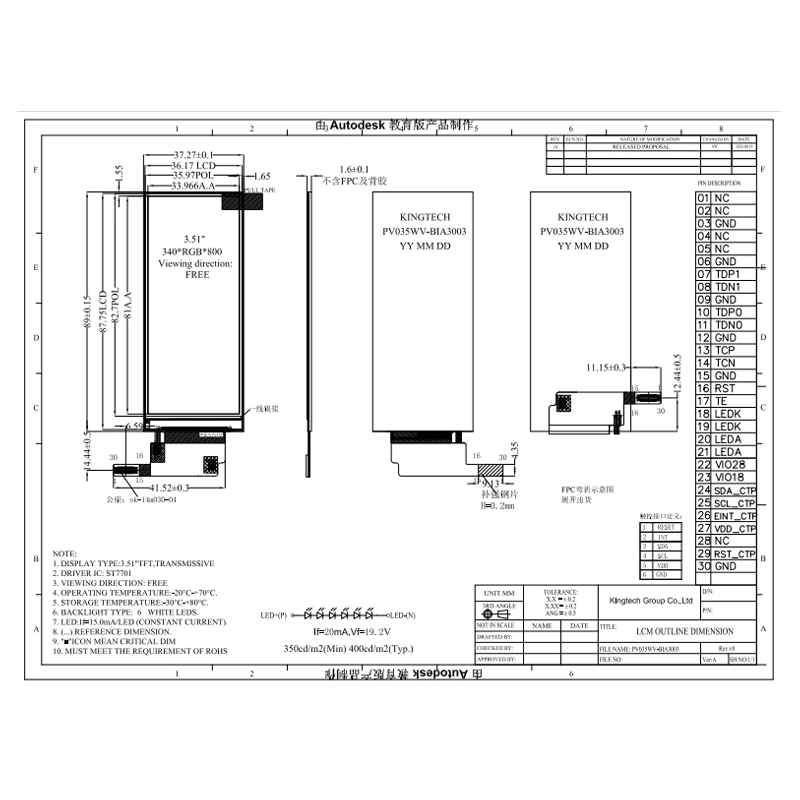

| Outline Dimension (mm) | 37.27*89.00*1.60 |
| Active Area (mm) | 33.966*81 |
| Viewing Angle | All |
| Brightness | 400nits |
| Interface | MIPI |
| Backlight | 6*1LED |
| Driving IC | ST7701 |
| PIN No. | 30 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial |
The 3.46inch 340x800 bar type display used for Medical, hand-held device, industrial, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
