Kingtech PV05711D0160M-CT is 5.7 inch TFT colorful LCD module. Its viewing angle is all, IPS panel technology. The resolution is 640x480. Its driver ic is JD9168S, supporting LVDS interface and RGB interface. Its backlight is 3*7LED, brightness can reach up to 500nits Typical. This item used commonly for industrial, medical, Printer, etc.
5.7inch IPS LCD
640x480, approximately square
LVDS interface and RGB interface
Capacitive Touch, OCA bonding
Get a Quote
Documentation
| Item | 5.7inch 640x480dots LCD with capacitive touch |
| Model No. | PV05711D0160M-CT |
| Resolution | 640*480 |

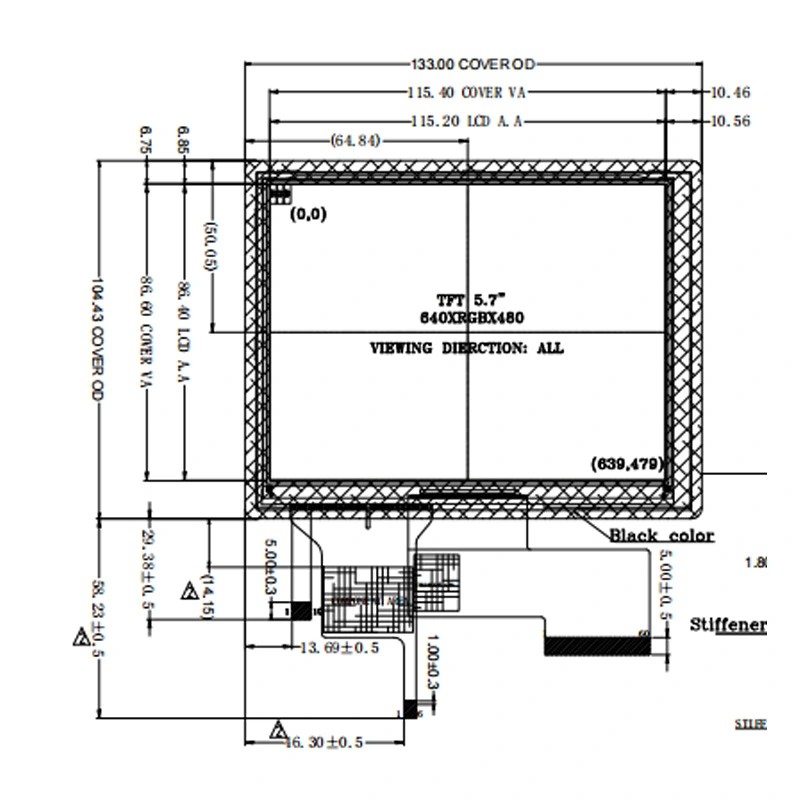

| Outline Dimension (mm) | 133*104.43*2.55 |
| Active Area (mm) | 115.20*86.40 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | RGB, LVDS |
| Backlight | 3*7 LEDs |
| Driving IC | JD9168S |
| PIN No. | 60 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch with ILI2511, I2C interface |
| Application | Industrial, Medical, Consumer electronics, charging piles/engineering vehicles/ships. |
It is applicable for Medical, hand-held device, industrial, outdoor, advertising, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer.
