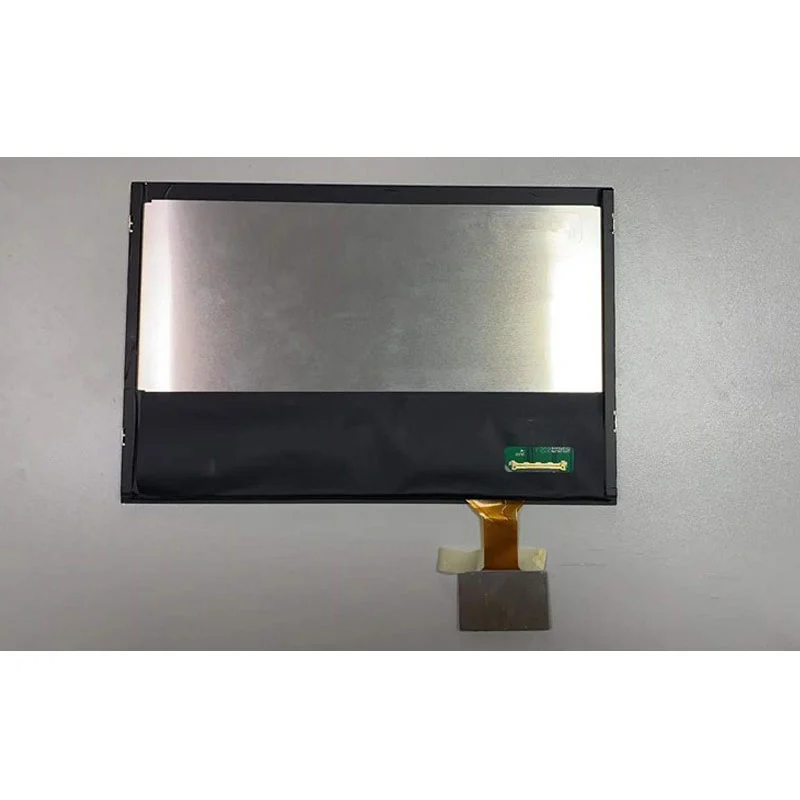

Kingtech 10.1 inch 1280*800 IPS LCD with capacitive touch screen display supply very stable. This 10.1inch touch screen supports LVDS interface. In addition, the 10.1 inch WXGA TFT module has existing HDMI Board. It can be connected to raspberry pi directly. The lifetime is 50000h, the brightness is 450nits, and this 10.1 inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, this module is capacitive touch, and Kingtech can also custom the touch according to the customer’s requirements.
All/Free/All/Wide viewing angle/IPS
1280x800 / WXGA
Stable supply
HDMI board / Convert board
Capacitive touch/ IIC and USB interfaces
Can custom capacitive touch screen
Get a Quote
Documentation
| Item | 10.1inch 1280x800 capacitive touch screen |
| Model No | PV101033Y0140W-CO |
| Resolution | 1280x800 / WXGA |

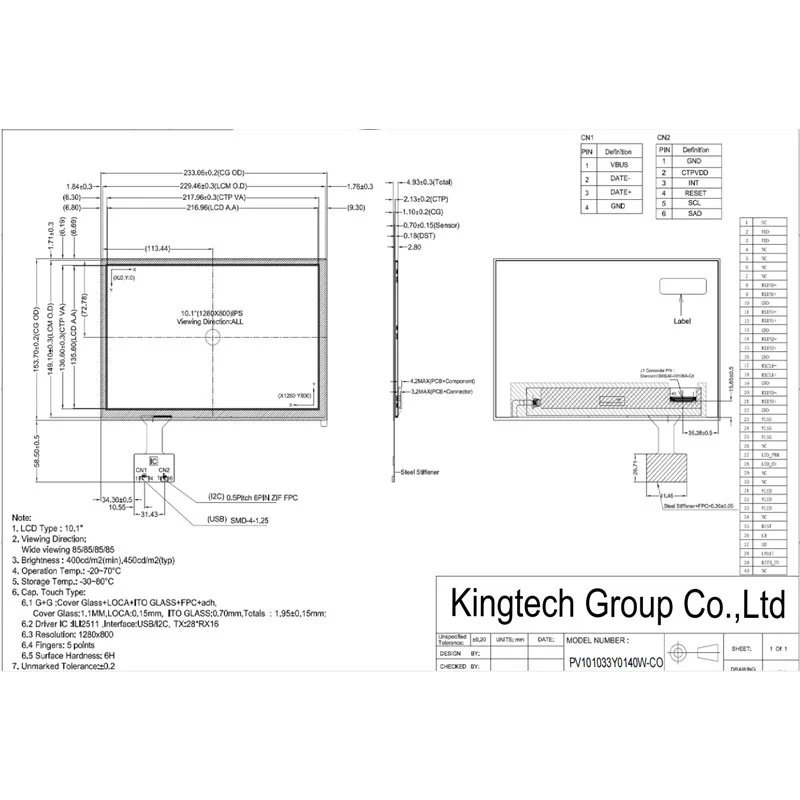

| Outline Dimension | 229.46*149.10*4.93 |
| Active Area(mm) | 216.96*135.36 |
| Interface | LVDS 8bit or 6bit Interface |
| Brightness | 450nits |
| Viewing Angle | All |
| Display Mode | Transmissive / Normally Black |
| PIN | 40 |
| Lifetime | 50000h |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touchscreen | Capacitive touch |
The 10.1inch 1280x800 / WXGA IPS touch screen TFT LCD display can be used for agricultural equipment, medical device, game console, outdoor and smart home etc.
