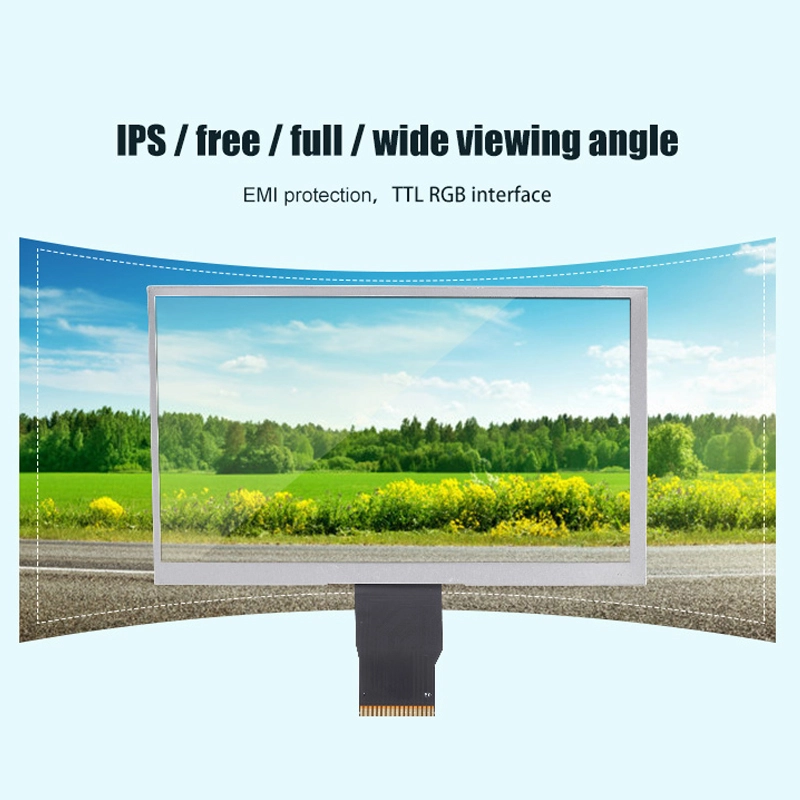

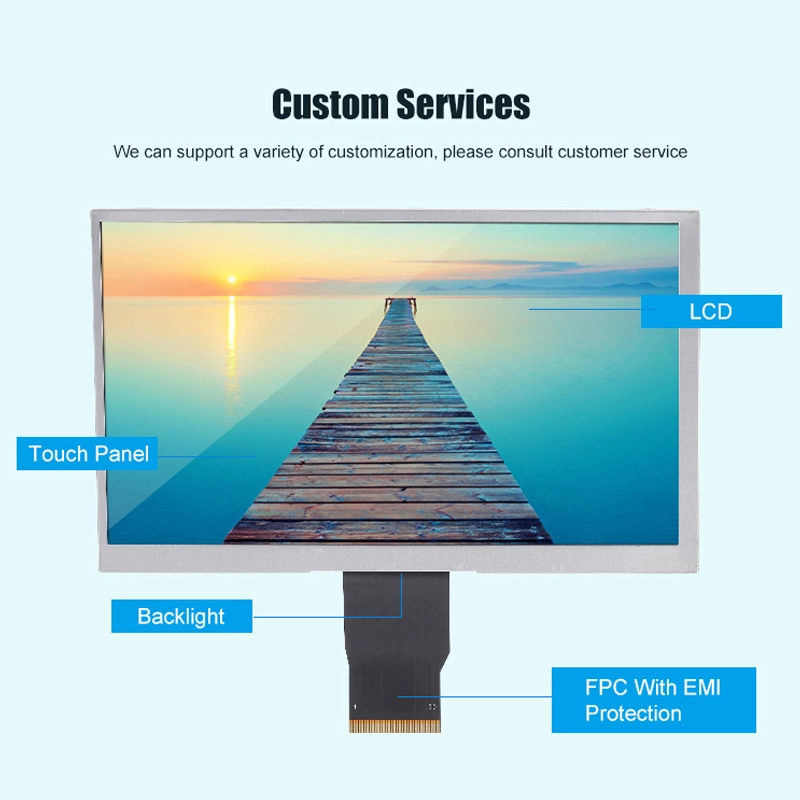

Kingtech PV07053T0124E-CO is a 7-inch LCD module using IPS TFT-LCD technology. It is composed of a TFT LCD panel, driver IC, FPC, backlight. The 7inch WXGA TFT display provides a sharp and vivid image quality with 1280x800. Its driver ic is Ili9881, support MIPI interface. Currently its brightness is 250nits, MIPI interface. And Backlight can be customized. It has a compatible CTP oca bonding.
WXGA resolution
Landscape, Horizontal shaped
With CTP, OCA bonding, better fit for LCD module and CTP
MIPI interfaces, a wide range of applications and is mainly used as a serial communication interface for mobile devices and embedded systems.
Get a Quote
Documentation
| Item | 7.0 inch IPS 1280*800 LCD module with CTP |
| Model No. | PV07053T0124E-CO |
| Resolution | 1280*800 |
| Outline Dimension (mm) | 165.62*107.45*2.8 |
| Active Area (mm) | 150.72*94.2 |
| Viewing Angle | IPS |
| Brightness | 250nits |
| Interface | MIPI |
| Backlight | 5*4LED |
| Driving IC | ILI9881 |
| PIN No. | 24 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Optional |
| Application | Industrial, Medical, Telecom, Smart Home, tablet PC, 5G device |
The 7inch WXGA LCD module used for Medical, hand-held device, industrial, outdoor, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, automotive and 3D printer.
