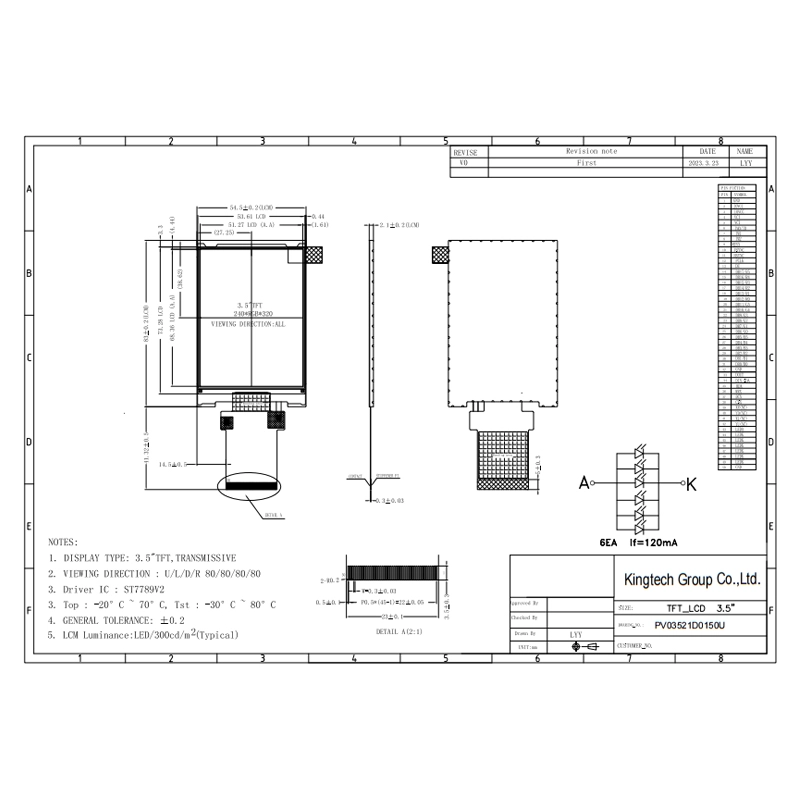

Kingtech 3.5 inch 240x320 resolution TFT LCD display. It with stable production. This 3.5 inch IPS QVGA TFT LCD display supports RGB interface, ST7789V2 driver IC. It with all viewing angle. Mainly application for Smart home, hand-held device. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Small LCD display
IPS/Free/All/Wide viewing angle
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial
Get a Quote
Documentation
| Item | 3.5 inch 480*640 IPS viewing angle LCD display for outdoor |
| Model No. | PV03525D0120Y |
| Resolution | 480*640 |
| Outline Dimension (mm) | 61.00*81.75*2.6 |
| Active Area (mm) | 53.28*71.04 |
| Viewing Angle | All |
| Brightness | 900nits |
| Interface | MIPI |
| Backlight | 6*1LEDs |
| Driving IC | ILI9806E |
| PIN No. | 20 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, E-Bike, EV-chargers |
3.5inch 240x320 QVGA TFT LCD module used for Medical, hand-held device, industrial, outdoor, Elevator, Access Control device, advertising, ATM, E-bike, EV-Chargers, Personal Navigation Device, Multimedia applications and Others AV system, GPS, Personal Navigation Device, meter, vehicle, motorcycle, farm equipment, HMI, Portable DVD, marine, POS terminal, thermostat, access control, elevator, video door, consumer electronics, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.
