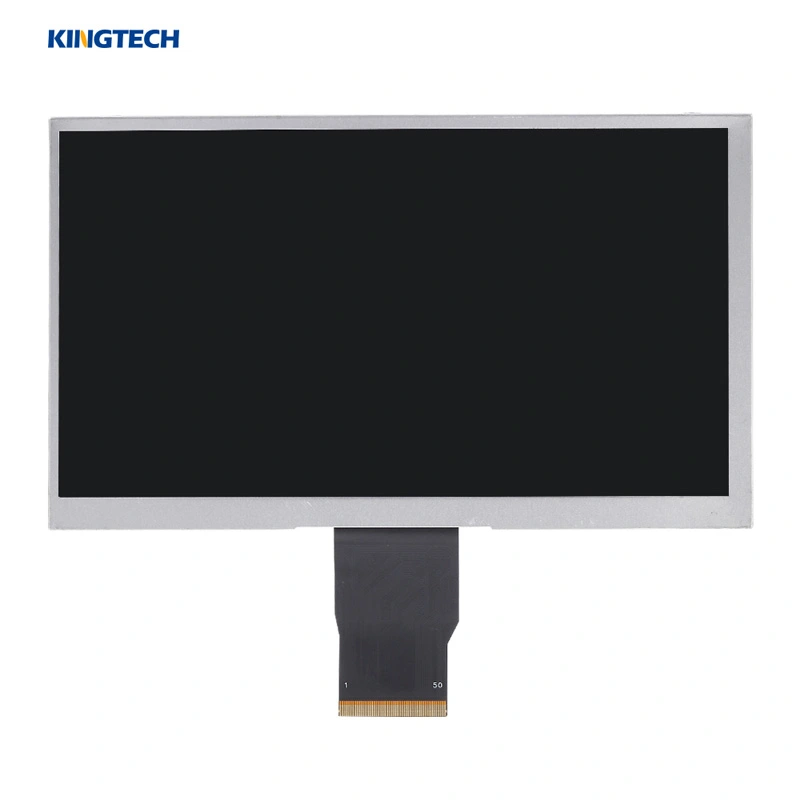

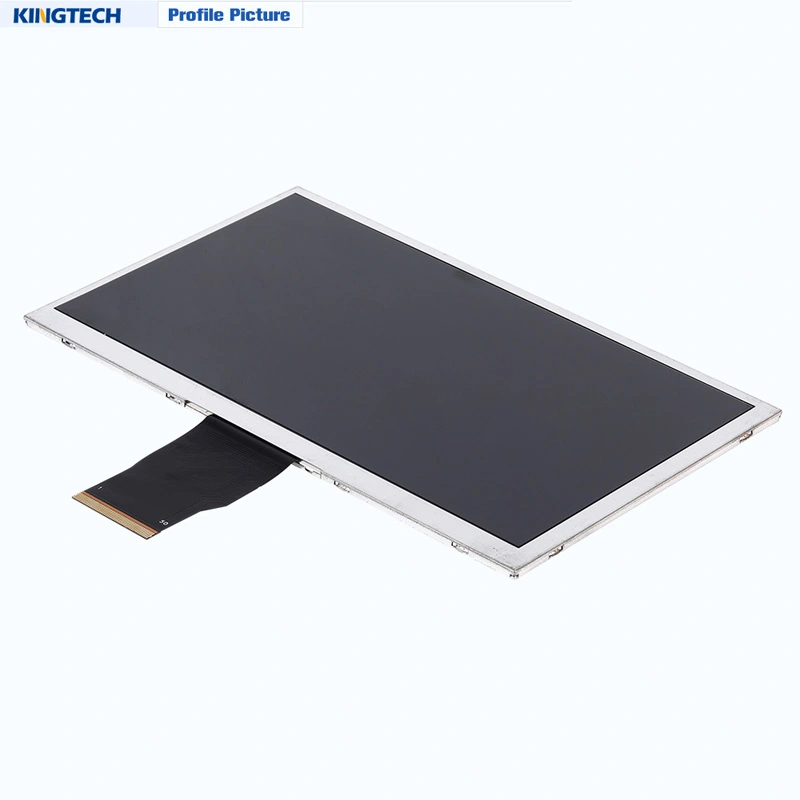

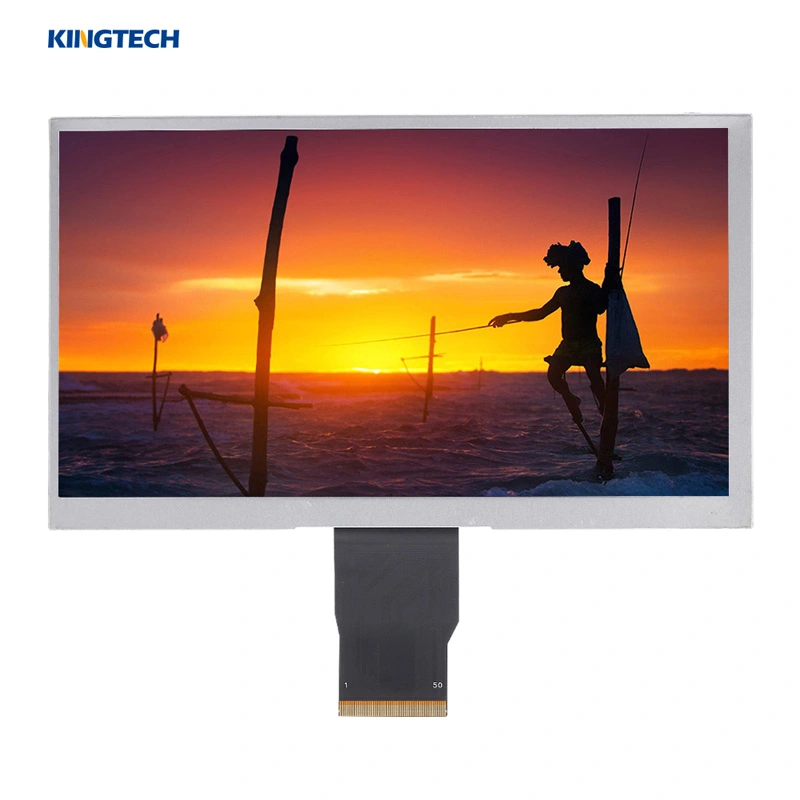

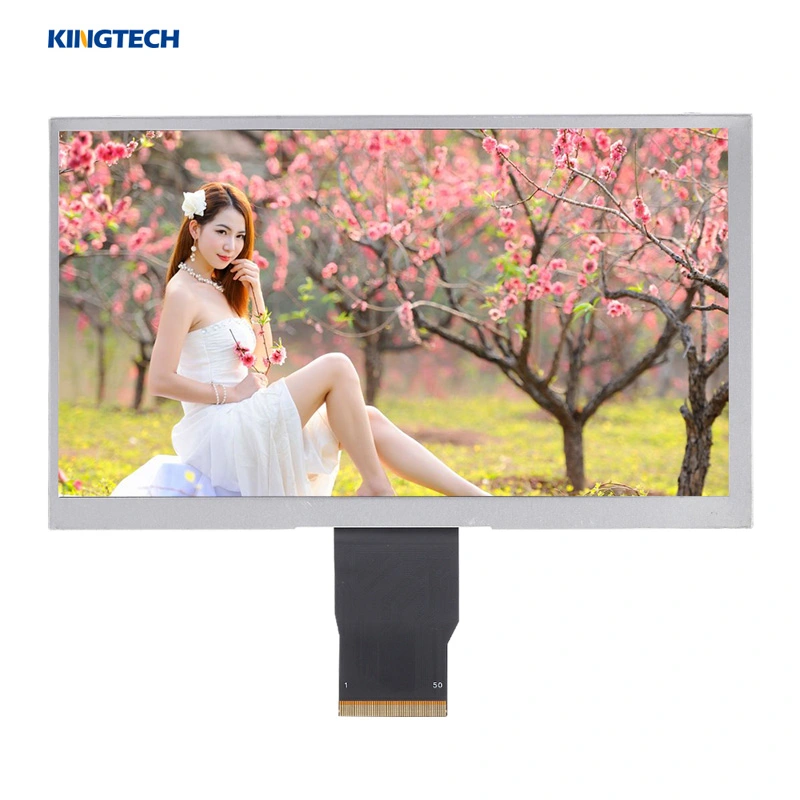

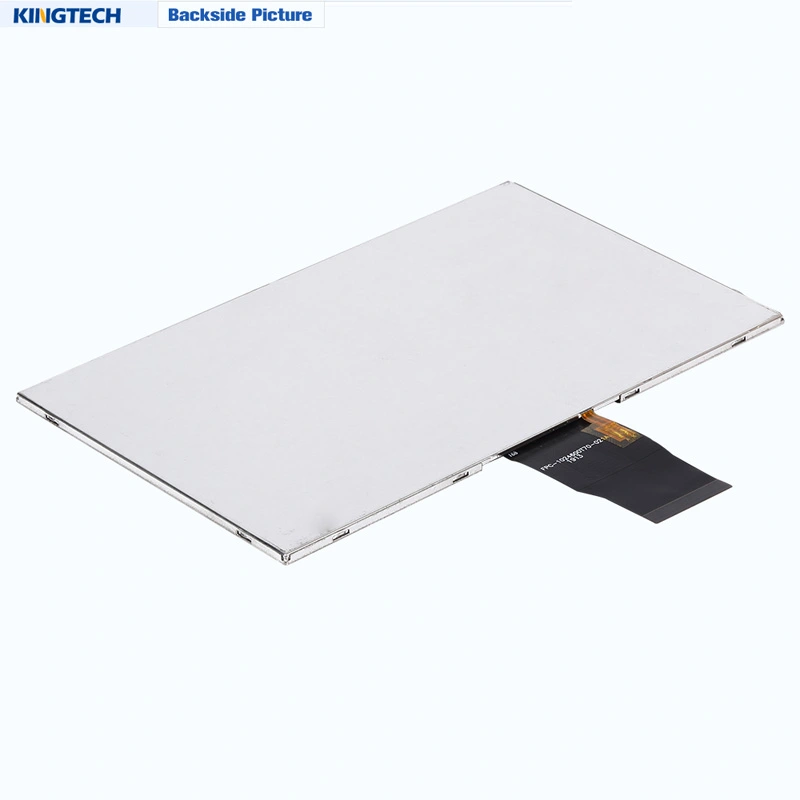

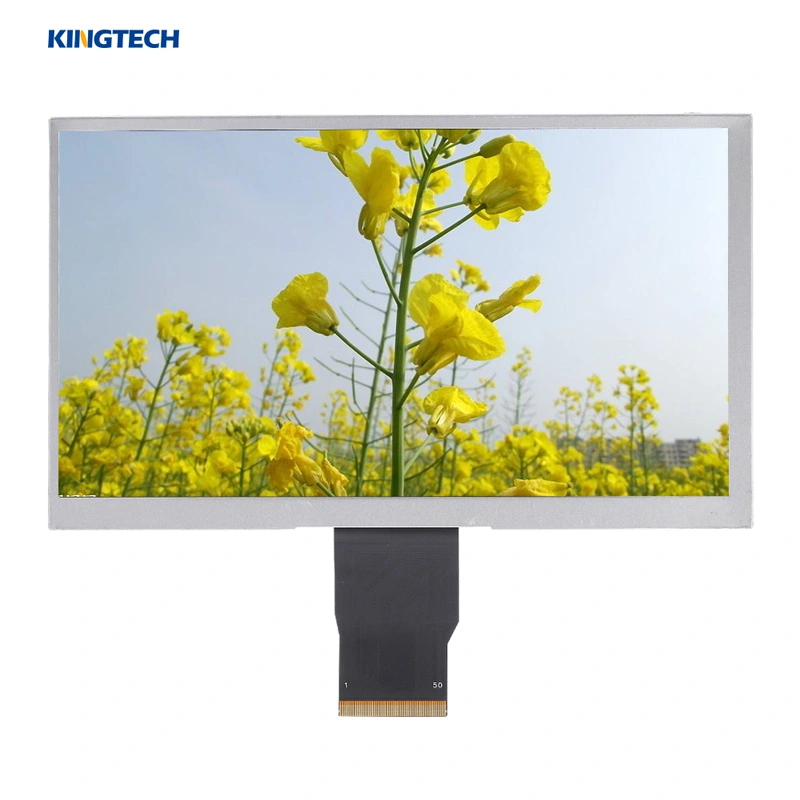

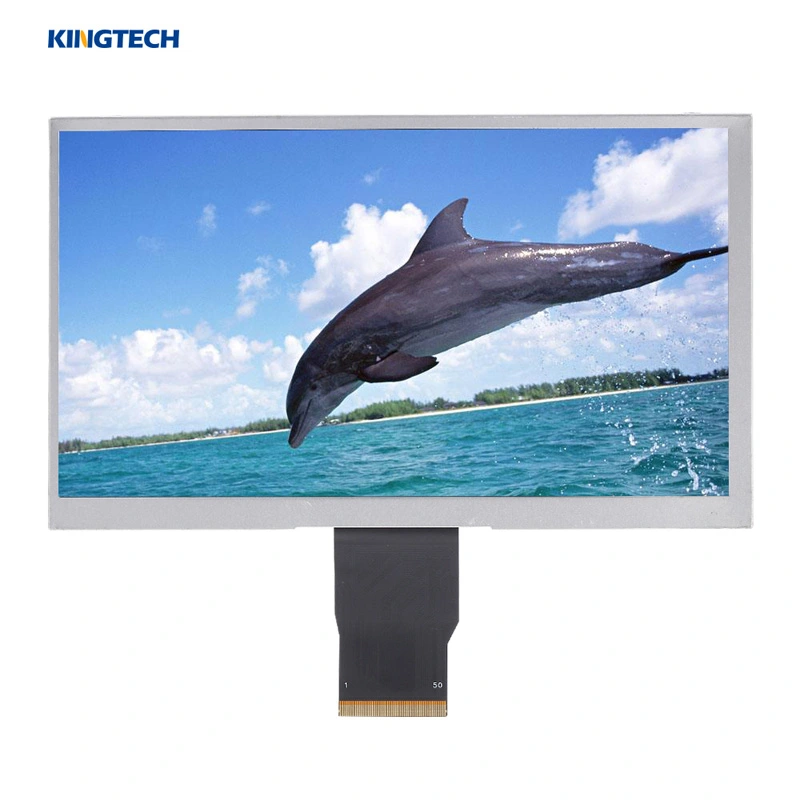

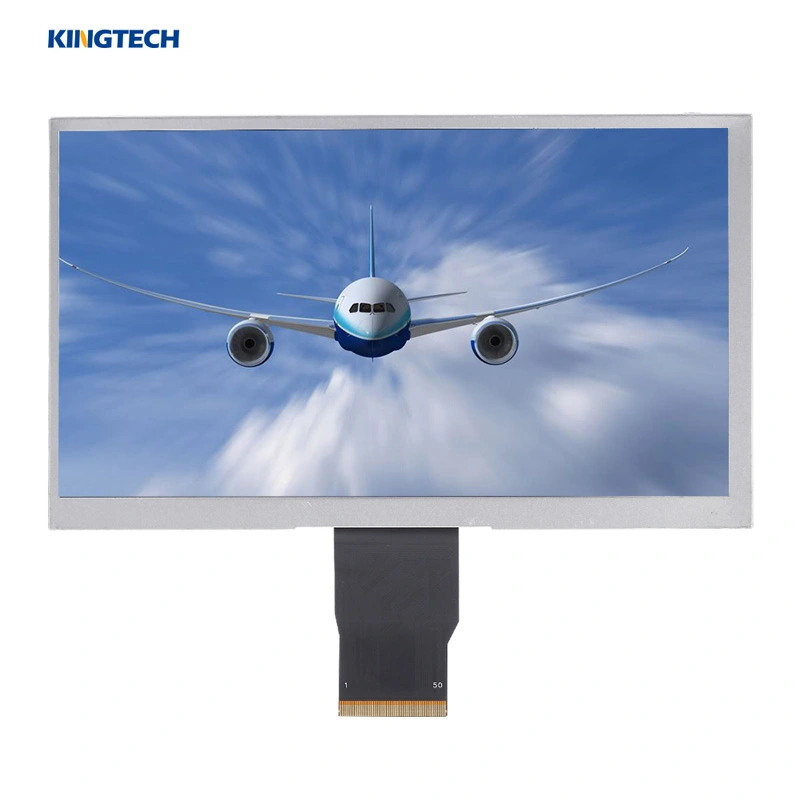

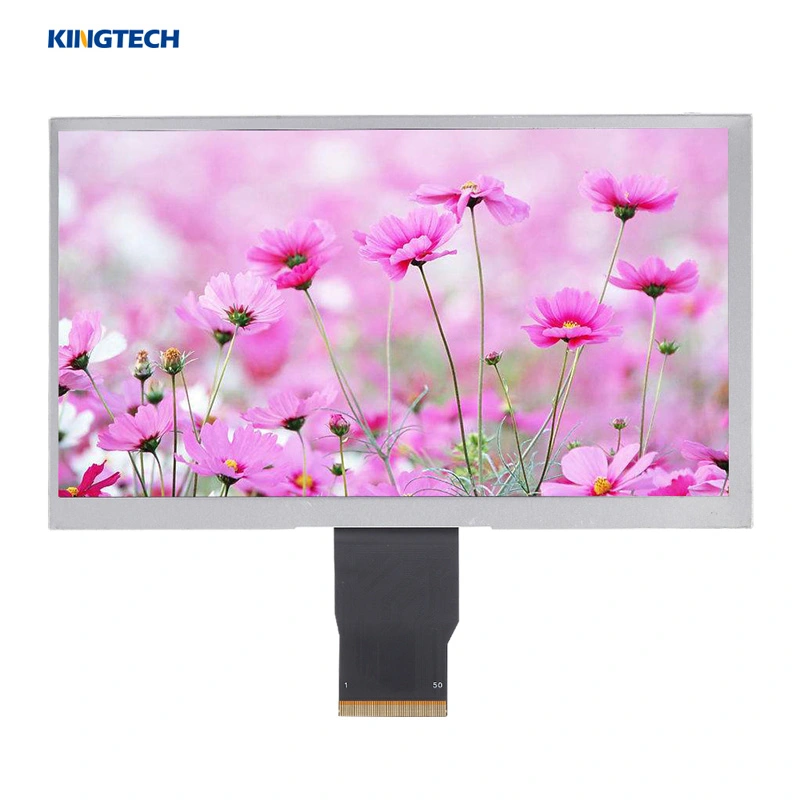

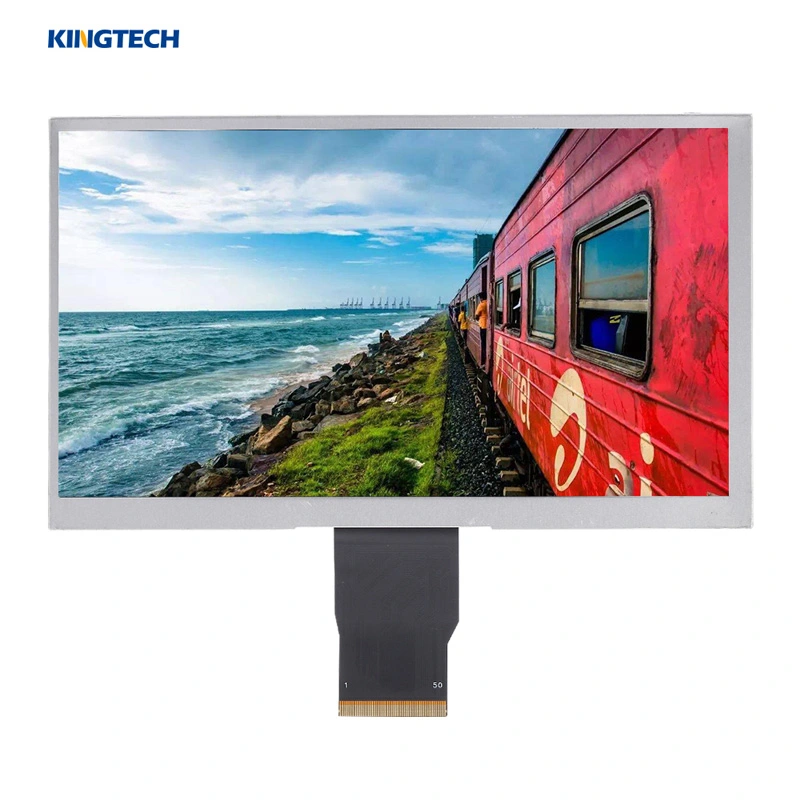

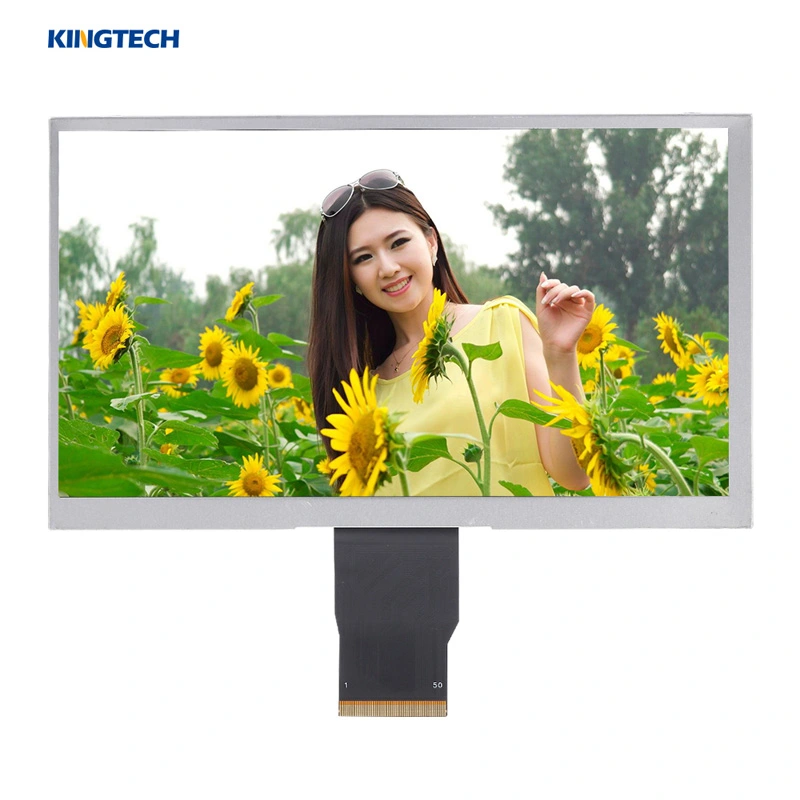

Kingtech 7inch 1024x600 IPS All / free/ wide viewing angle TFT LCD display is a common size in the market, the supply is very long and stable. The 7inch LCD screen has the existing resistive touch and capacitive touch.
This 7inch IPS display can reach 1000nits and can be used for outdoor devices. The 7inch has an existing HDMI Board.
1024x600 Landscape resolution
All / Free / Wide viewing angle
IPS LCD touchscreen
Super thin thickness
TTL/RGB interface
High brightness/sunlight readable LCD display/1000nits
Support resistive touch and capacitive touch
HDMI Board
Get a Quote
Documentation
| Item | 7.0 inch IPS TFT module display |
| Model No | PV07008LZR50B |
| Resolution | 1024*600 |
| Outline Dimension | 164.90(W)*100.00(H)*2.8(T) |
| Active Area(mm) | 154.21(W)*85.92(H) |
| Interface | TTL |
| Viewing Angle | All |
| LED life | 50000h |
| Display Mode | Transmission / Normally Black |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Brightness | 450nits / 1000nits |
| Touch screen | Resistive / capacitive touch screen |
| Board | HDMI board |
The 7inch 1024x600 IPS TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, and E-Bike.
The 7inch IPS 1000nits TFT LCD module also can be used in sunlight-readable such as advertising machines and automotive devices.
