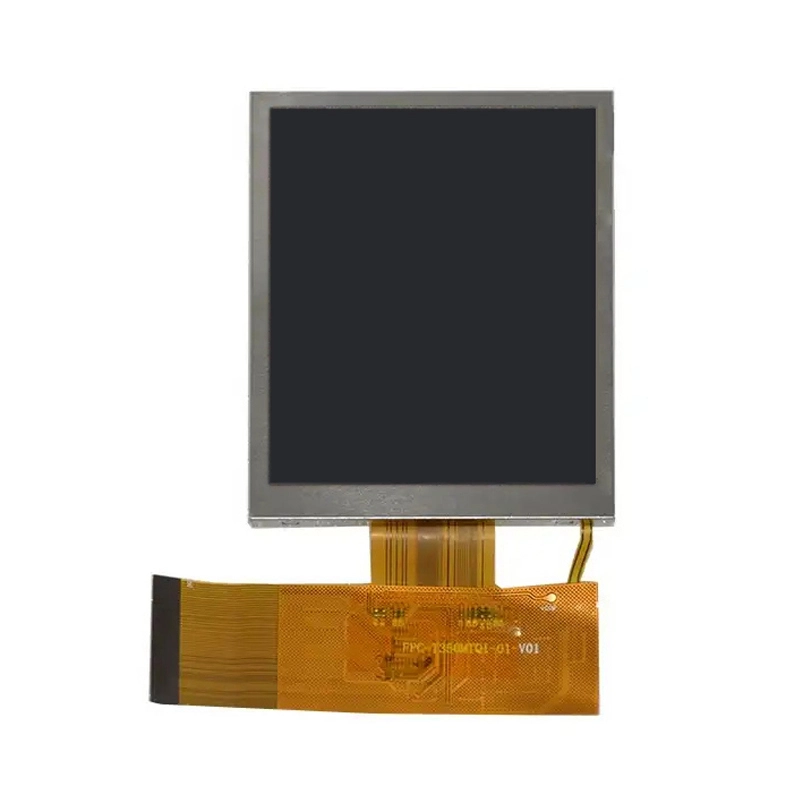

Kingtech 3.5 inch 240*320 resolution LCD display with stable production. This 3.5 inch QVGA TFT LCD display supports SPI+ 18 BIT RGB interface, 400nits brightness for outdoor application. It is TN viewing angle, Transflective LCD display. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
Transflective LCD display
Stable supply
QVGA resolution
TN
Sunlight readable/Outdoor/High brightness
Can custom resistive touch and capacitive touch
Get a Quote
Documentation
| Item | 3.5inch 240x320 18bit RGB portrait LCD display |
| Model No. | PV03523T0150W |
| Resolution | 240*320 |

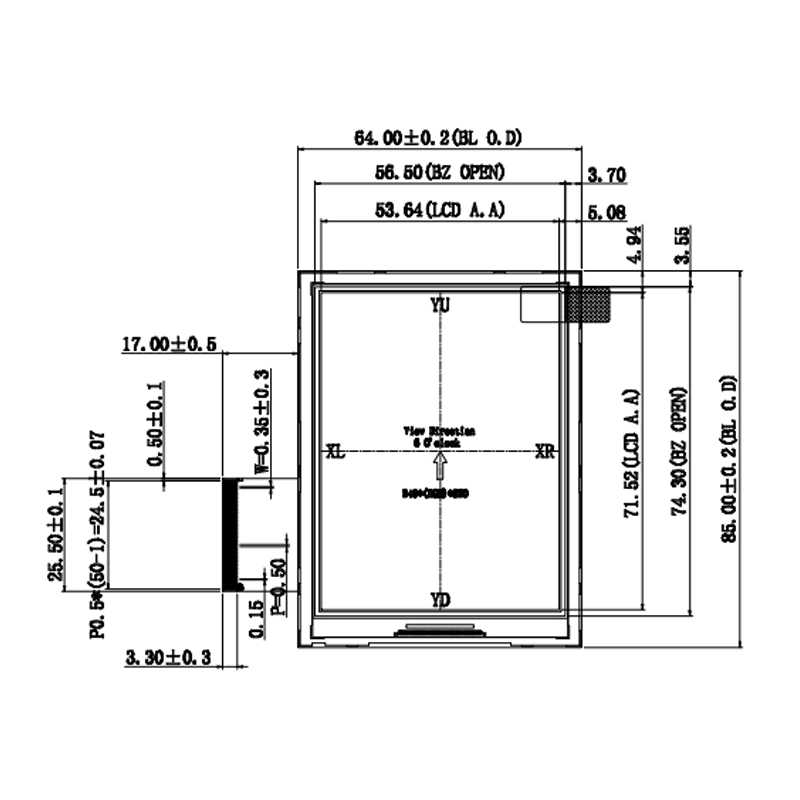

| Outline Dimension (mm) | 64.00*85.00*3 |
| Active Area (mm) | 53.64*71.52 |
| Viewing Angle | 6 O'clock |
| Brightness | 400nits |
| Interface | 18bit RGB+SPI |
| Backlight | 6*2LED |
| Driving IC | ILI9341V |
| PIN No. | 50 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, outdoor |
The 3.5 inch transflective LCD display module can be used for Medical, E-bike, Electronic motor, smart home hand-held device, industrial or others outdoor application.
