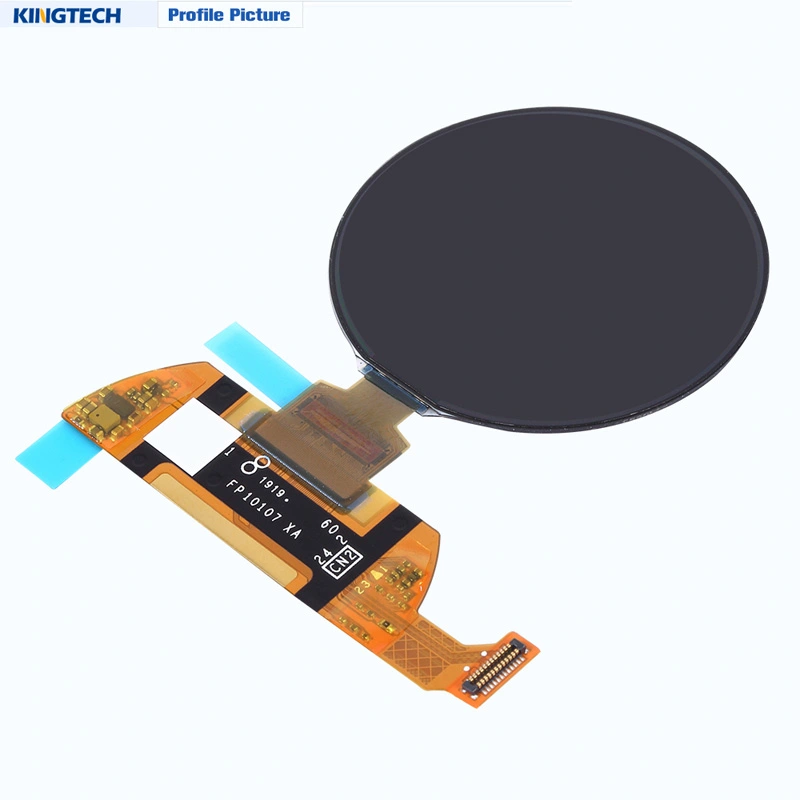

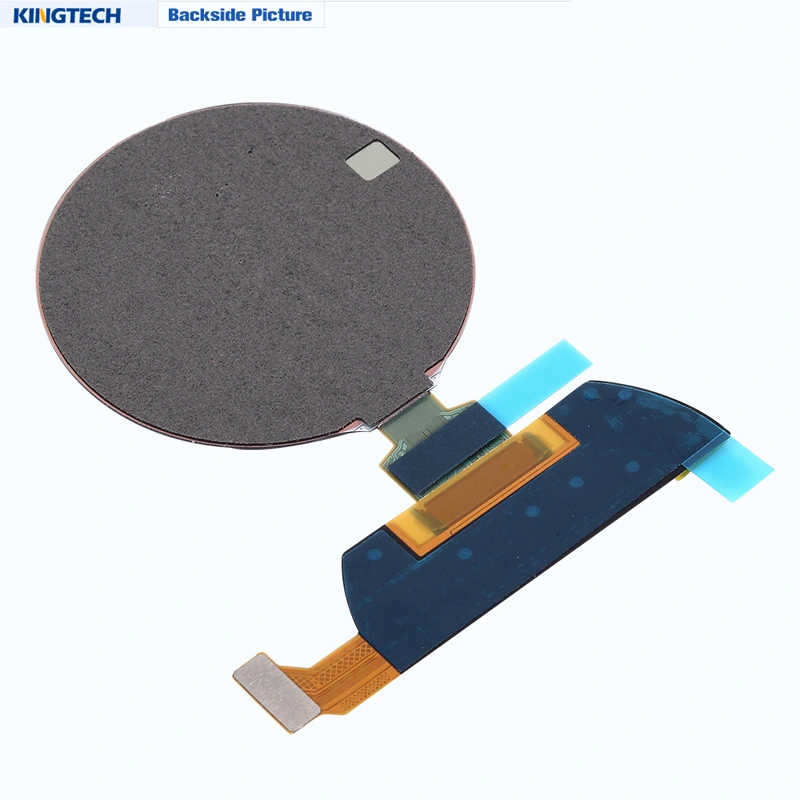

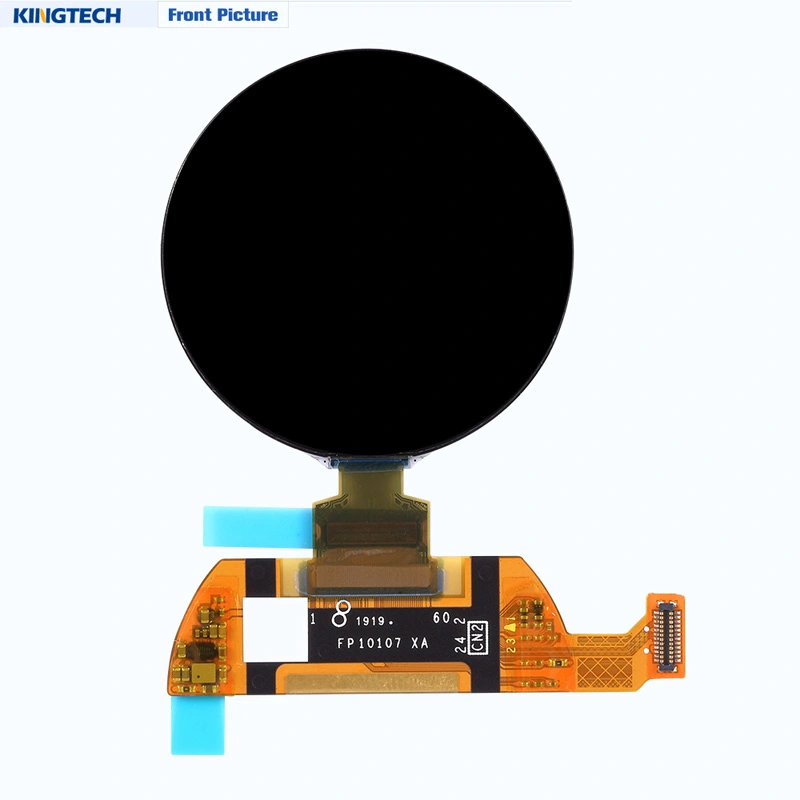

Kingtech 1.39inch 454x454 round LCD display with touch is popular to be used for a wearable device. This multitouch LCD screen is designed for Xiaomi company, so the shipment quantities are very large.
The 1.39inch is AMOLED type, and without backlight, so the power consumption of multitouch displays is very low. The 1.39inch round display has multi touch capacitive screen and resistive multi touch screen.
Kingtech also can custom LCD screens and HDMI board according to the customer's requirements. Our products include paper thin LCD screen, super thin LCD display, ultra thin display panel, thinnest LCD screen, multi touch capacitive touchscreen, multi touch LCD screen, multi touch resistive touch screen, raspberry pi multi touch screen and so on.
All/Free/Wide viewing angle
Pure round
454x454 resolution
AMOLED module
Low power consumption
Power saving
super slim 0.68mm thickness
Support capacitive touch
The application is for a smartwatch
Sunlight readable
Get a Quote
Documentation
| Item | 1.39'' Round OLED Display with Touch |
| Model No | PV13902PY24G-C1 |
| Resolution | 454X454 |
| Outline Dimension | 38.83*38.21*0.68 |
| Active Area(mm) | φ38.21 |
| Interface | MIPI /SPI |
| Viewing Angle | Free/IPS |
| Driving IC | RM69330 |
| pin | 24-pin OLED |
| Pixel Pitch (mm) | 0.198(H) x 0.198(V) |
| Operating Temperature | -20 to +60℃ |
| Storage Temperature | -30 to +70℃ |
| Response time | 10 to 20ms |
| Brightness | 350Cd/m² |
| Touch panel | Capacitive touch panel |
| Board | HDMI board |
The 1.39inch 454x454 round AMOLED display can be used for a wearable device, smartwatch, medical equipment, handheld device, robot, diving watches, and smart home, etc. We can offer qualified multi touch displays with multi touch panels.
